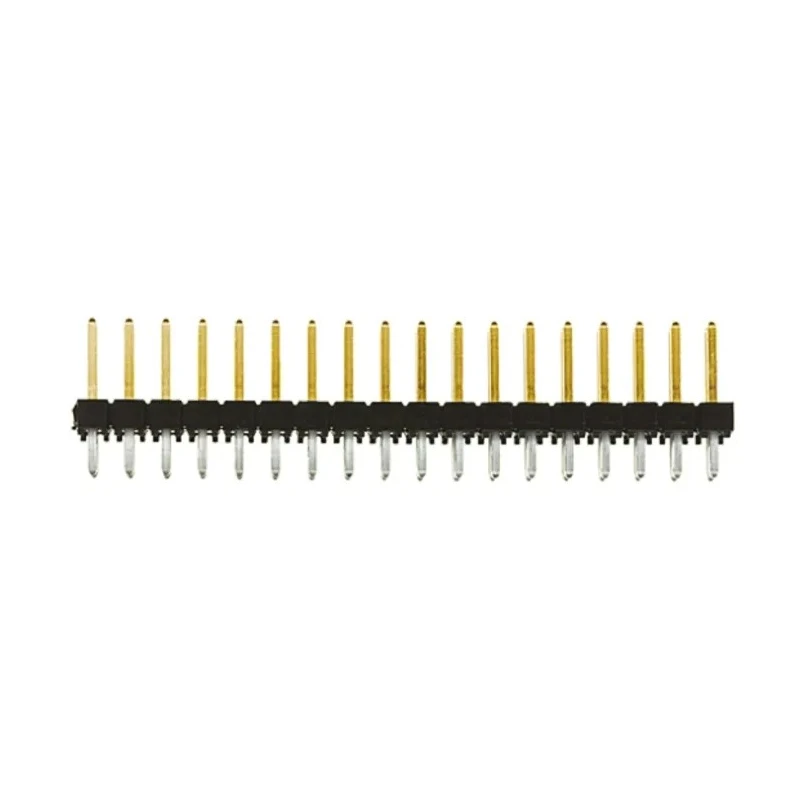

Samtec TSW Series Straight Through Hole Pin Header 36 Contact 2.54 mm Pitch 2 Row Unshrouded TSW-118-07-L-D

Samtec TSW-118-07-L-D is a Straight Through Hole Pin Header belonging to the TSW Series, engineered for high-performance PCB connections. It includes 36 male contacts arranged in 2 rows with a precise 2.54 mm pitch, supporting both board-to-board and wire-to-board connector systems. The housing is composed of durable glass-filled polyester providing mechanical strength and electrical insulation.

The pins are crafted from phosphor bronze with gold plating that ensures optimal electrical conductivity, corrosion resistance, and solderability. The header is unshrouded and features a through-hole mount type, making it suitable for robust PCB assemblies.

This pin header is rated for a current of 7.6 A and a voltage of up to 550 V, allowing it to perform reliably under demanding electrical loads. Its operating temperature range from -55°C to 125°C suits various industrial, electronic, and manufacturing applications requiring stability in diverse environments.

The detailed dimensions include a tail pin length of 2.54 mm and a mating pin length of 5.84 mm. It fits standard mating sockets such as BCS, CES, SLW, SSM, SSQ, and SSW models, providing versatile compatibility.

TSW Series pin headers are available in multiple configurations, with terminal heights and tail lengths tailored for different use cases. The TSW-118-07-L-D configuration combines terminal precision with practical design suited for advanced PCB layouts and prototyping.

The connector features a straight orientation with unshrouded design. Constructed with a glass-filled polyester housing for durability and insulation. Contacts are made of phosphor bronze with gold plating for excellent conductivity and corrosion resistance.

Supports a current rating of 7.6 A at a voltage rating of 550 V. Designed as a 2-row, through-hole mount for secure PCB installation. Operating temperature range spans from -55°C to 125°C for broad environmental tolerance.

The tail pin length is 2.54 mm with a mating pin length of 5.84 mm for compatibility.

This component is ideal for electronics manufacturing, industrial control systems, and communication equipment requiring reliable and durable PCB interconnections. It supports industrial standard specifications and adheres to RoHS compliance.
