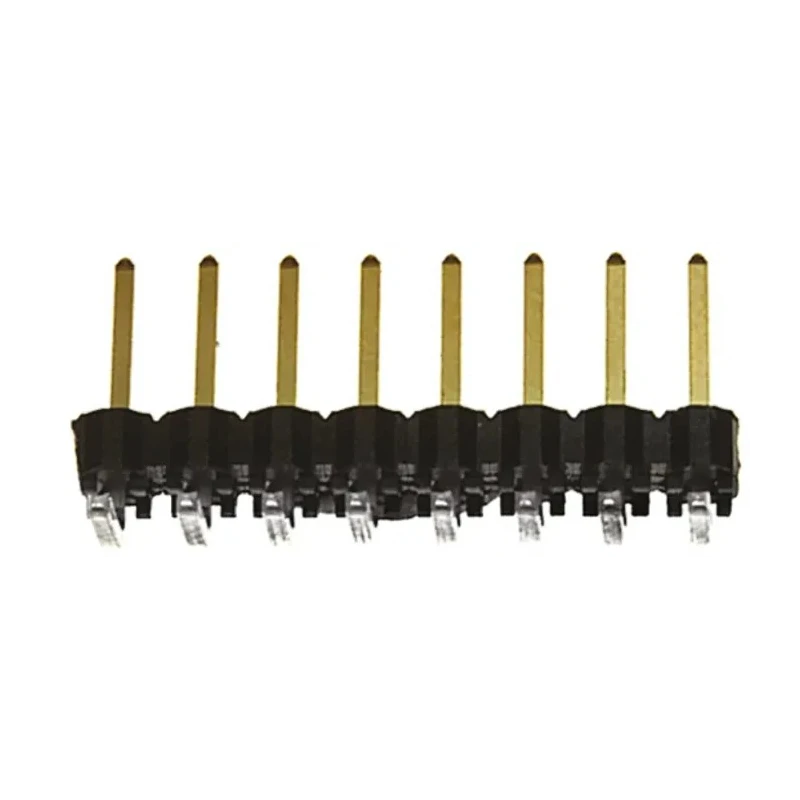

Samtec Right Angle Through Hole Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded TSW-108-08-L-S-RA

Samtec TSW-108-08-L-S-RA is a right angle through hole pin header designed for electronic assembly applications requiring reliable board-to-board and wire-to-board connections. It features 8 contacts arranged in a single row with a standardized 2.54 mm pitch, facilitating compatibility with a wide range of PCB layouts.

The connector housing is made from robust glass filled polyester, offering excellent mechanical strength and resistance to environmental stress. Contacts are fabricated from phosphor bronze material and plated with gold to ensure high conductivity and corrosion resistance, providing reliable electrical performance over extended use.

This pin header supports a maximum current rating of 7.6 amperes and a voltage rating up to 450 volts, making it suitable for various power and signal applications. It is rated to operate effectively within a temperature range of -55°C to 125°C, accommodating harsh industrial environments.

The termination type is solder, providing a secure connection to PCB pads or wires. The tail pin length of 2.29 mm and mating pin length of 5.84 mm are optimized for ease of installation and reliable mating. The right angle orientation is ideal for designs requiring horizontal PCB connections to vertical assemblies.

Its unshrouded contact design facilitates easy mating with compatible sockets including BC standard box sockets, CES and SLW low profile socket strips, and SSM surface mount socket strips. This flexibility supports diverse assembly needs in industrial electronics, manufacturing, and laboratory equipment.

Samtec's TSW series pin headers are widely used in electronics manufacturing, automation systems, communication equipment, and other commercial electronic applications where dependable connector performance is critical.

Constructed with glass filled polyester housing for durability. Phosphor bronze contacts plated with gold ensure reliable conductivity. Designed for through hole mounting with right angle orientation. Operates within a wide temperature range from -55°C to 125°C.

Supports maximum current of 7.6A and voltage rating of 450V. Tail pin length measures 2.29 mm with mating pin length of 5.84 mm. Features solder termination type and male contact gender. Unshrouded for easy mating with compatible sockets.

Suitable for industrial and electronic component assembly applications. Explore more high-quality PCB Headers and connectors in the Electronics & Electricals category at EnvMart for reliable electronic component solutions.
