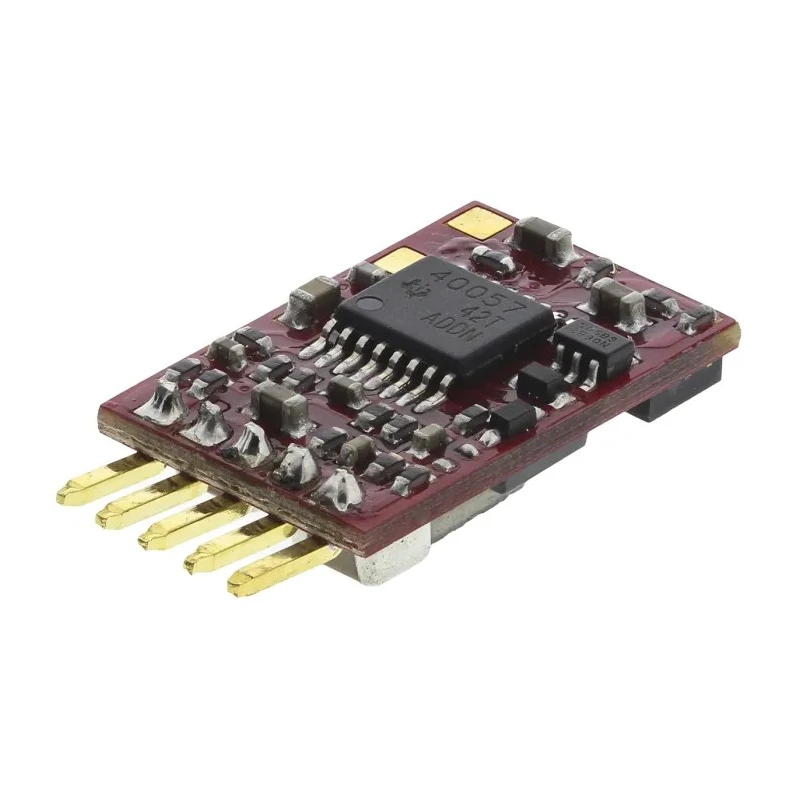

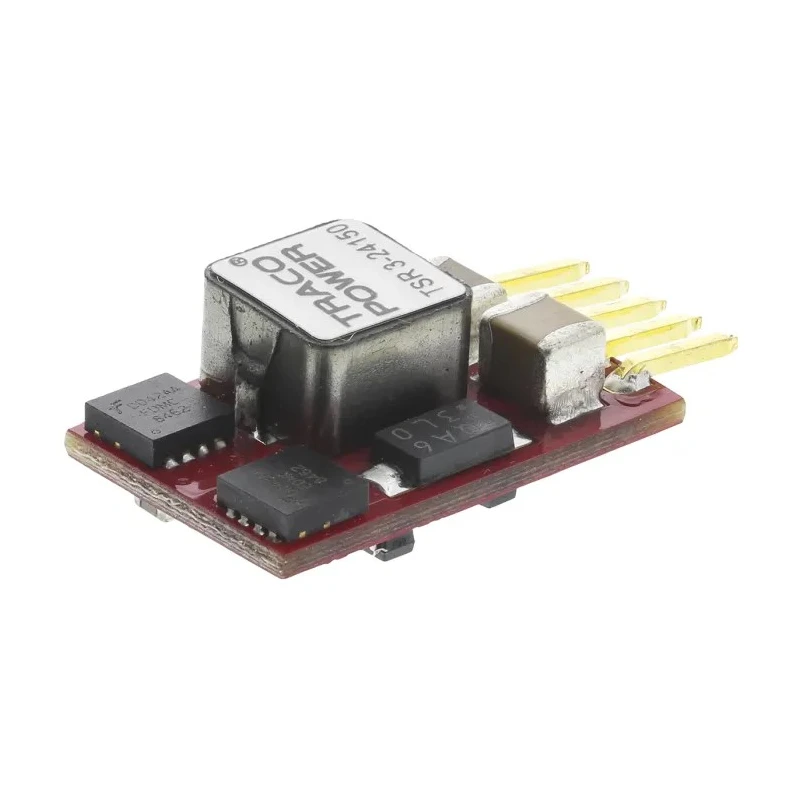

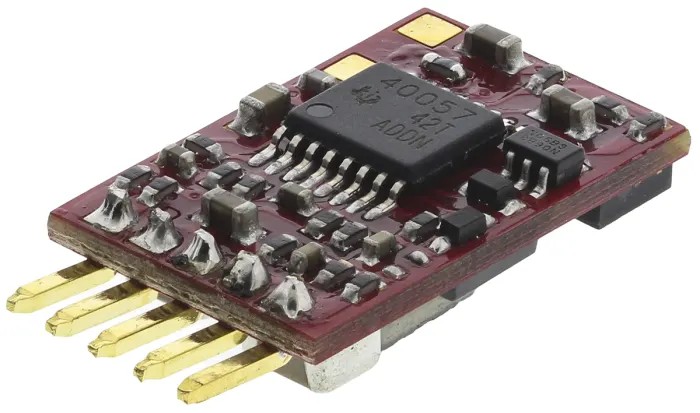

TRACOPOWER Single Output Switching Regulator Through Hole 15 V DC Output, 3 A Current, 95% Efficiency TSR 3-24150
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 95% |
| Length | 10.4mm |
| Model | TSR 3-24150 |
| Depth | 6mm |
| Gross Weight | 2.1g |
| Width | 15.5mm |
| Mount Type | Through Hole |
| Series | TSR 3 |
| Output Current | 3A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 0.8 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 1630000h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Input Voltage | 30V dc |
| Line Regulation | 0.2 % |
| Standards/Approvals | REACH |
| Minimum Input Voltage | 10V |
| Output Voltage 1 | 15, 5V dc |
Key Features
- Wide input voltage range from 10 V to 30 V DC for flexible power supply options.
- High efficiency of 95% minimizes energy loss and heat generation.
- Through hole mount type with SIP package enhances ease of installation.
- Operating temperature range from -40°C to +85°C suitable for harsh environments.
- Low ripple and noise of 150 mV peak-to-peak for stable output performance.
- MTBF of approximately 1,630,000 hours ensures long-term reliability.
- Protection against short circuits reduces risk of electrical damage.
- Remote on/off function allows convenient control of power supply.
Product Description
TRACOPOWER TSR 3-24150 is a single output Switching Regulator designed for through hole mounting and SIP package configuration. It converts an input voltage range of 10 to 30 V DC into a regulated 15 V DC output with up to 3 A current capacity. This regulator achieves a high efficiency of 95%, reducing energy losses and heat generation, which is critical in compact and sensitive electronic systems.
Its operating temperature range from -40°C to +85°C makes it suitable for a variety of challenging industrial and commercial environments. The low ripple and noise voltage of 150 mV peak-to-peak ensures stable and clean output voltage, enhancing the performance of connected devices.
The small dimensions of 15.5 mm width, 10.4 mm length, and 6 mm depth allow it to fit efficiently into space-constrained circuit designs. It features robust protection mechanisms such as short circuit protection and a remote on/off control, ensuring operational safety and convenience.
With an impressive Mean Time Between Failures (MTBF) of about 1,630,000 hours, this component offers high reliability required in medical devices, consumer electronics, industrial automation systems, and various power supply designs. The TSR 3 series is widely recognized for its performance and durability.
Wide input voltage range from 10 V to 30 V DC for flexible power supply options. High efficiency reduces heat and power losses. Compact and space-saving SIP package with through hole mounting. Stable output voltage with low ripple and noise.
Extensive temperature range supports diverse applications. Reliable design with short circuit protection and remote on/off. Long operational lifetime with high MTBF rating. Used in consumer electronics, medical and industrial equipment.
Choose TRACOPOWER TSR 3-24150 for efficient, reliable, and precise voltage regulation in your electronic projects and industrial applications. Browse EnvMart for more power supply and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSR 3-24150 provides a regulated output voltage of 15 V DC with a maximum output current of 3 A.
This model accepts an input voltage range from 10 V to 30 V DC.
It has an efficiency rating of 95%, which helps minimize energy loss and heat generation.
The dimensions of the TSR 3-24150 are 15.5 mm in width, 10.4 mm in length, and 6 mm in depth.
This unit operates within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
The output ripple and noise is specified at 150 mV peak-to-peak, ensuring stable output performance.
Yes, it includes short circuit protection to reduce the risk of electrical damage.
It is designed for through hole mounting with a SIP package configuration, facilitating easy installation.
The MTBF for the TSR 3-24150 is approximately 1,630,000 hours, indicating high reliability.
The TSR 3-24150 complies with REACH standards, ensuring it meets regulatory requirements.
The load regulation is specified at 0.8%, ensuring consistent output under varying load conditions.
This model is suitable for use in medical devices, consumer electronics, industrial automation systems, and various power supply designs.
