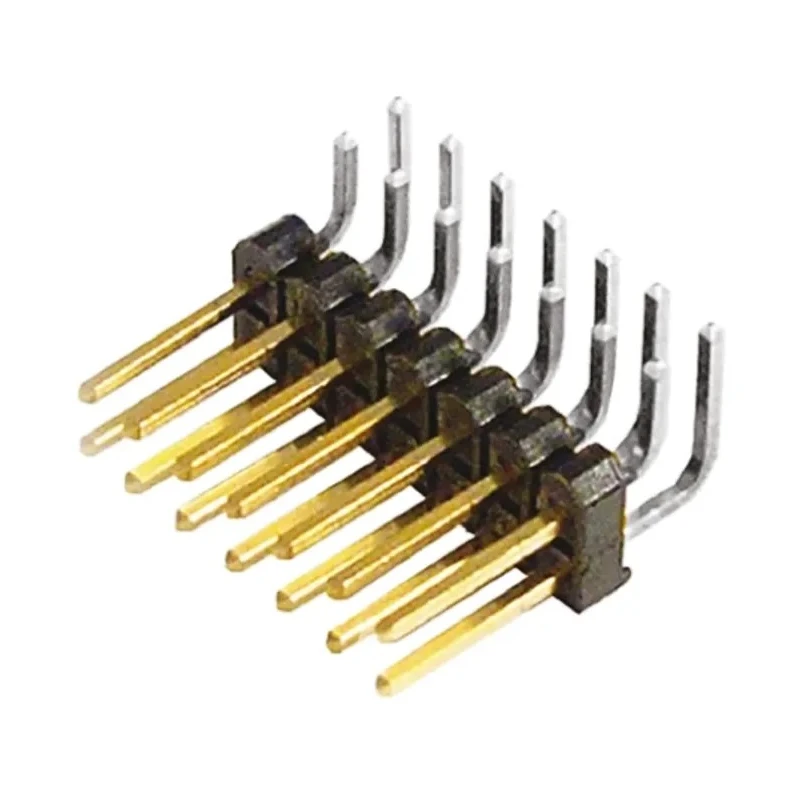

Samtec TSW Series Right Angle Through Hole Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-107-08-L-D-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 7.6A |
| Model | TSW-107-08-L-D-RA |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.29mm |
| Mating Pin Length | 5.84mm |
Key Features
- Designed for board-to-board and wire-to-board connections.
- Constructed with glass filled polyester housing for durability.
- Phosphor bronze contacts with gold plating ensure reliable conductivity.
- Supports a maximum current of 7.6A and voltage up to 450V.
- Operates reliably within -55°C to 125°C temperature range.
- Through hole mounting provides secure installation on PCBs.
- Features male contact gender with solder termination type.
- Tail pin length of 2.29 mm and mating pin length of 5.84 mm for solid connections.
Product Description
Samtec TSW-107-08-L-D-RA is a right angle through hole pin header designed for PCB board-to-board and wire-to-board applications. It features 14 contacts arranged in 2 rows with a precise 2.54 mm pitch. The housing is made of durable glass filled polyester, providing structural integrity and electrical insulation in industrial and commercial electronic devices.
The contacts are made from phosphor bronze and finished with gold plating to ensure excellent electrical conductivity and resistance to corrosion. It supports continuous current of 7.6A and voltage ratings up to 450V, suitable for medium power electronic assemblies.
This pin header is unshrouded and mounted through hole, ensuring easy soldering and reliable mechanical fixation on printed circuit boards. The right angle orientation facilitates space-saving PCB designs, making it ideal for compact electronic modules.
Designed to operate across a broad temperature range from -55°C to +125°C, this connector maintains performance in harsh industrial, laboratory, and manufacturing environments. The male contact gender with solder tail termination and specific tail pin and mating pin lengths meet standard electronic assembly requirements.
Designed for board-to-board and wire-to-board connections. Robust glass filled polyester housing ensures durability. Gold-plated phosphor bronze contacts provide reliable conductivity. Supports 7.6A current and 450V voltage maximum ratings.
Wide operating temperature range of -55°C to 125°C. Through hole mounting for secure PCB installation. Right angle orientation enables compact layouts. Male contact gender with solder termination for assembly. Pin lengths designed for standard mating compatibility.
This Samtec TSW series pin header is suitable for use in industrial control systems, communication equipment, power supplies, and other electronic assemblies requiring reliable and compact board connections.
Explore more industrial-grade connectors and electronic components in the Electronics & Electricals category on EnvMart for optimized performance and quality.
Explore more products in our PCB Headers category.
