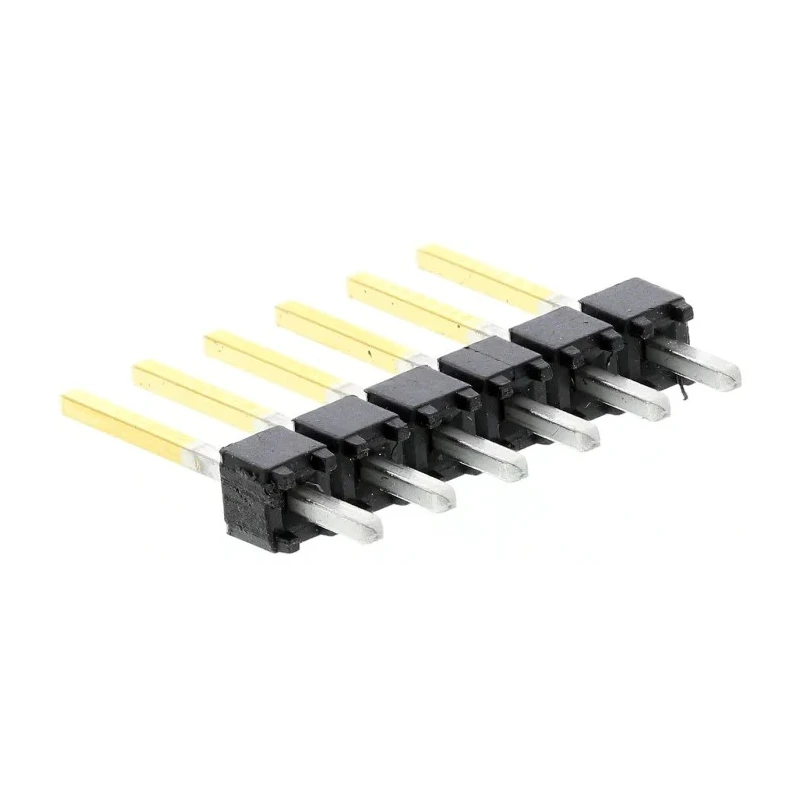

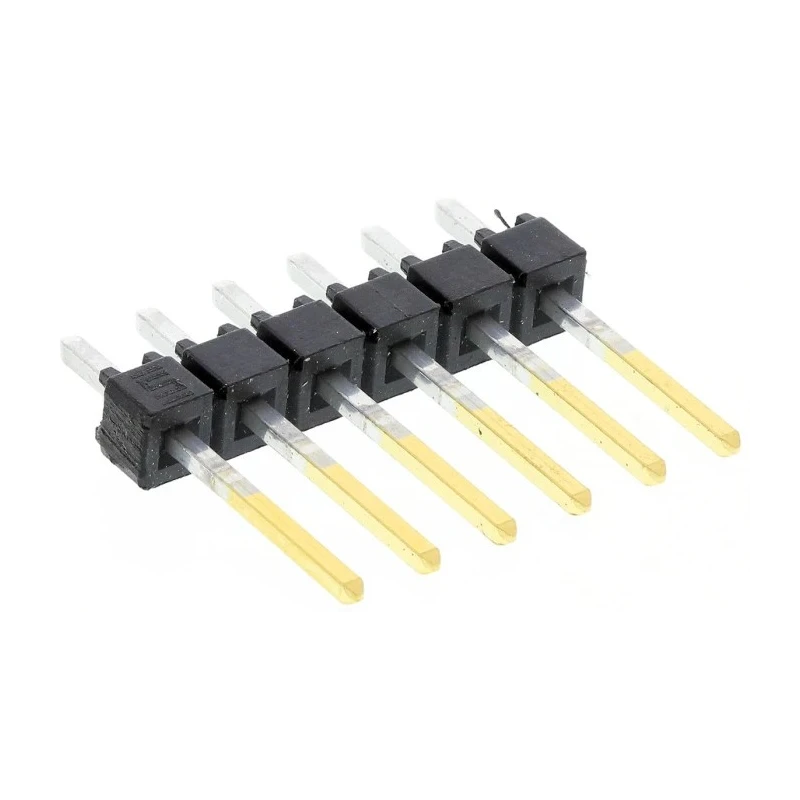

Samtec TSW Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded, Gold TSW-106-14-L-S

Samtec TSW-106-14-L-S is a premium straight through-hole pin header connector part of the TSW series, engineered for industrial and electronic applications requiring reliable board-to-board and wire-to-board connections. This connector features 6 male contacts arranged in a single row with a 2.54 mm pitch, ensuring compatibility with standard PCB footprints and circuit designs.

The pin header is constructed from phosphor bronze contact material plated in gold, providing excellent conductivity and long-term corrosion resistance. Its housing is made of glass filled polyester, offering durable mechanical strength and electrical insulation.

Designed for a current rating of 7.6 amps and a voltage rating up to 550 volts, this component is suitable for power distribution and signal integrity in automation, electronics manufacturing, electrical equipment, and mechanical systems.

The mounting style is through hole with solder termination type, providing a secure physical and electrical connection. The straight body orientation facilitates easy installation and maintenance. Operational temperature ranges from -55 degrees Celsius minimum to 125 degrees Celsius maximum, allowing use in a variety of demanding industrial environments.

The connector's tail pin length is 2.79 mm, and the mating pin length is 8.13 mm, ensuring proper fit and reliable mating with complementary connectors. This unshrouded header allows easy access for connector mating without additional locking features.

Gold plated phosphor bronze contacts ensure superior electrical performance. Suitable for board-to-board and wire-to-board applications in industrial electronics. Robust glass filled polyester housing provides durability and electrical safety.

Through hole mounting with solder termination offers strong mechanical support. High current and voltage ratings enable use in power and signal transmission. Wide operating temperature range supports harsh environmental conditions.

Straight orientation and unshrouded design simplify connector integration.

This Samtec TSW series pin header is an excellent choice for engineers and manufacturers seeking reliable and standardized connectors for PCB assemblies in automation, electrical equipment, mechanical machines, and other industrial use cases. Explore a wide range of PCB headers and connectors on EnvMart for your electronic component needs.
