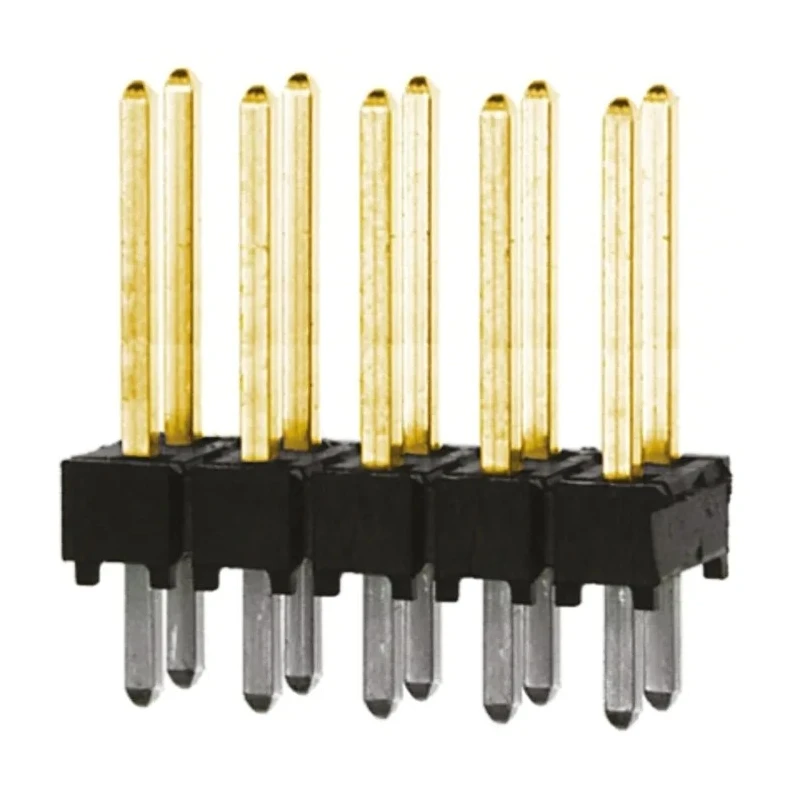

Samtec TSW Series Straight Through Hole Pin Header 10 Contact 2.54 mm Pitch 2 Row Unshrouded TSW-105-14-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | TSW-105-14-L-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.79mm |
| Mating Pin Length | 8.13mm |
Key Features
- The header is made from glass filled polyester housing material for durability.
- Contacts are phosphor bronze with gold plating for corrosion resistance and reliable conductivity.
- Rated for 7.6A current and 550V voltage for robust electrical performance.
- Operating temperature range extends from -55°C to 125°C for versatility in various environments.
- Termination type is solder mount through hole for secure PCB installation.
- Male contact gender with tail pin length of 2.79 mm and mating pin length of 8.13 mm.
- The product is unshrouded, allowing easy access for mating connectors.
- Designed to meet high-quality standards with no specific certifications.
Product Description
Samtec TSW-105-14-L-D is a TSW Series straight through hole pin header designed to provide reliable connectivity in electronic assemblies. It features 10 contacts arranged in 2 rows with a 2.54 mm pitch for standardized spacing and compatibility.
The housing is constructed from robust glass filled polyester, providing mechanical strength and electrical insulation. Contacts are phosphor bronze with gold plating, ensuring corrosion resistance and excellent electrical performance with a current rating of 7.6A and voltage rating of 550V.
This PCB header supports through hole solder mounting and is unshrouded, enabling easy mating with compatible connectors. The operating temperature range from -55°C to 125°C makes it suitable for various industrial and commercial electronic equipment operating under harsh conditions.
The male contacts feature a tail pin length of 2.79 mm and a mating pin length of 8.13 mm, allowing secure connection in board-to-board and wire-to-board systems. This header is compatible with numerous Samtec socket strips and is widely used in applications including electronics manufacturing, testing, prototyping, and industrial control systems.
The header is made from glass filled polyester housing material for durability. Contacts are phosphor bronze with gold plating for corrosion resistance and reliable conductivity. Rated for 7.6A current and 550V voltage for robust electrical performance.
Operating temperature range extends from -55°C to 125°C for versatility in various environments. Termination type is solder mount through hole for secure PCB installation. Male contact gender with tail pin length of 2.79 mm and mating pin length of 8.13 mm.
The product is unshrouded, allowing easy access for mating connectors. Designed to meet high-quality standards with no specific certifications.
This Samtec TSW Range straight through hole pin header is trusted for its quality and durability in demanding industrial and electronics manufacturing contexts. EnvMart offers this product for professionals requiring reliable board-to-board or wire-to-board connections.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7.6A, ensuring robust electrical performance for various applications.
The voltage rating for the TSW-105-14-L-D is 550V, making it suitable for high-voltage applications.
The operating temperature range extends from -55°C to 125°C, allowing it to function in diverse environmental conditions.
This pin header supports through hole solder mounting for secure installation on PCBs.
The contacts in this model are arranged with a pitch of 2.54 mm, which is standard for many electronic applications.
This pin header features 10 contacts arranged in 2 rows, providing multiple connection points.
The contacts are made from phosphor bronze with gold plating, while the housing is constructed from glass filled polyester for durability.
It has male contacts with a tail pin length of 2.79 mm and a mating pin length of 8.13 mm.
This model is unshrouded, allowing for easy access when mating with compatible connectors.
It is compatible with board-to-board and wire-to-board connector systems, making it versatile for various applications.
The country of origin for this pin header is India.
This pin header is part of the TSW Series, which is designed for reliable connectivity in electronic assemblies.
