Samtec TSW Series Right Angle Through Hole Pin Header 8 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-104-08-L-D-RA

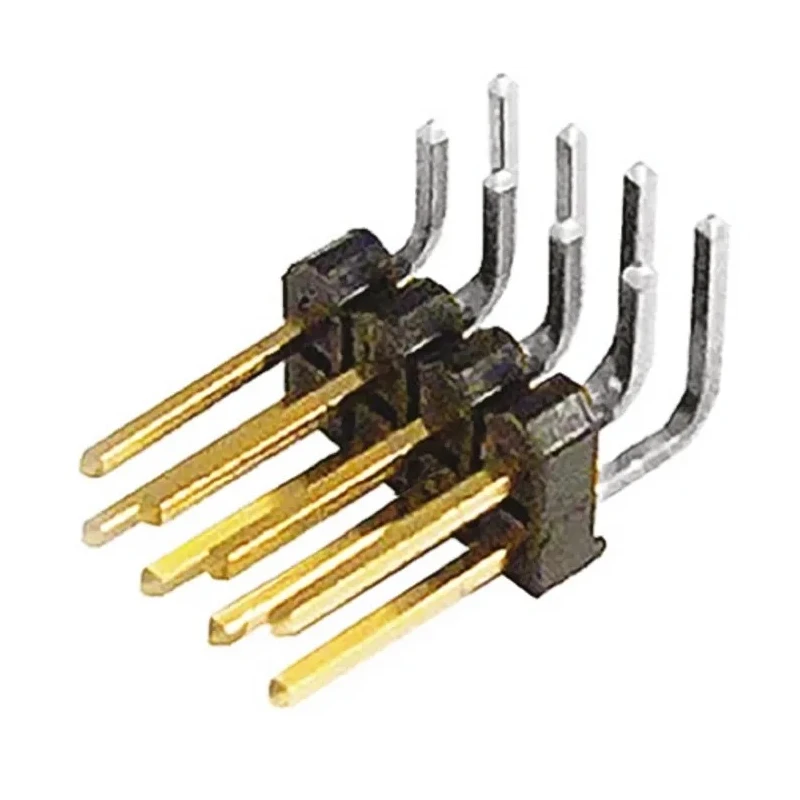

Samtec TSW-104-08-L-D-RA is a right angle through hole pin header designed for industrial and electronic applications requiring reliable PCB connections. This header series offers 8 male contacts arranged in 2 rows with a 2.54mm pitch width, constructed with a durable black glass filled polyester housing to withstand mechanical stress and high-temperature environments.

The pin header contacts are made of phosphor bronze and plated with gold to ensure excellent conductivity and corrosion resistance over extended operational periods. It supports currents up to 7.6A and voltages up to 450V, making it suitable for various electronic assemblies including board-to-board and wire-to-board connector systems.

This component uses through hole mounting with a solder termination type to facilitate permanent and strong connection on printed circuit boards. The tail pin length of 2.29mm and mating pin length of 5.84mm allow for secure mating with compatible sockets and connectors. Its operating temperature range from -55°C to 125°C ensures stable performance in harsh industrial or laboratory environments.

The header is unshrouded, allowing easy access and visibility of each pin for assembly and troubleshooting. Its right angle orientation optimizes space on PCBs, supporting compact electronic device designs.

Samtec's TSW series provides a variety of configurations with single and double row options, different plating specifications, and terminal heights to cater to diverse application needs. This model specifically delivers a balance of robust mechanical and electrical performance for demanding electronic component applications.

The header features a robust glass filled polyester housing ensuring durability. Gold plated phosphor bronze contacts provide reliable electrical conductivity. Designed for through hole mounting with solder termination type.

Rated for 7.6A current and a voltage of 450V. Operates effectively in temperatures ranging from -55°C to 125°C. Includes 2 rows of unshrouded male contacts suitable for board-to-board and wire-to-board connections. Right angle orientation and precise pin lengths for optimal fit.

This right angle 8-contact pin header is ideally suited for applications in industrial electronics, manufacturing equipment, control systems, and custom PCBs requiring dependable interconnects. Its compliance with rigorous operating parameters ensures integration into a broad array of technical projects in electronics and electrical engineering.
