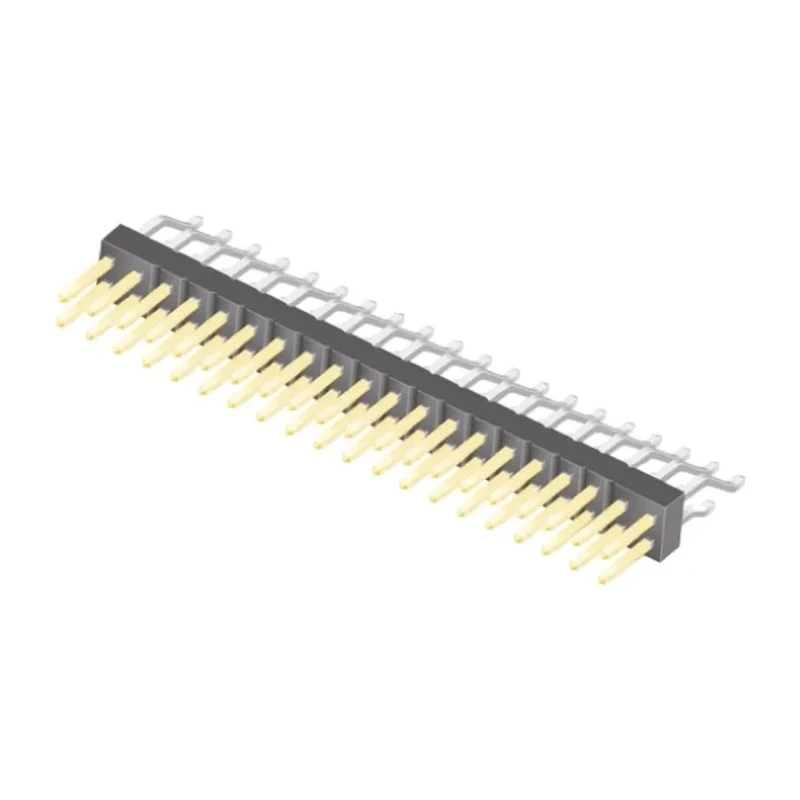

Samtec TSM Series Right Angle Surface Pin Header 40 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-120-02-L-DH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 7A |
| Model | TSM-120-02-L-DH |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 8.13mm |
Key Features
- Designed with a liquid crystal polymer housing for high reliability.
- Phosphor bronze contacts plated with 0.25μm gold ensuring excellent conductivity and corrosion resistance.
- Right angle orientation suitable for board-to-board and wire-to-board applications.
- Supports a maximum current of 7A and voltage rating of 475V for demanding electronic systems.
- Operating temperature range spans from -55°C up to 125°C for harsh environments.
- Unshrouded design enables easy access for soldering and mating connectors.
- Surface mount technology (SMT) allows for efficient PCB assembly and compact design.
- Mating pin length of 8.13 mm provides secure and stable connections.
Product Description
Samtec TSM-120-02-L-DH is a right angle surface pin header in the TSM series, featuring 40 male contacts arranged in 2 rows with a 2.54 mm pitch. This SMT pin header uses a durable liquid crystal polymer housing and phosphor bronze contact material plated with gold, delivering strong and dependable electrical connections for various PCB designs.
Operating efficiently between -55°C and 125°C, this connector supports currents up to 7A and voltages up to 475V, making it suitable for critical electronic systems in industrial, laboratory, and commercial environments.
The unshrouded, surface mount design facilitates easy assembly and integration in board-to-board and wire-to-board connector systems. Its right angle orientation allows for space-saving PCB layouts.
The gold plating thickness of 0.25μm on the posts enhances corrosion resistance and signal integrity, while solder termination guarantees a robust connection.
With a mating pin length of 8.13 mm, it ensures secure and stable attachments with compatible socket strips. This series offers versatility with multiple configurations and post heights, adapted for diverse electronic applications.
Liquid crystal polymer housing ensures high durability and chemical resistance. Phosphor bronze, gold-plated contacts for excellent conductivity and longevity. Right angle 2-row design provides space-efficient PCB interconnections.
Surface mount technology improves manufacturing process and reliability. Wide operating temperature range for harsh environmental conditions. Supports board-to-board and wire-to-board systems for flexible design. Unshrouded type allows easier soldering access and connector mating.
Mating pin length of 8.13 mm ensures secure connector engagement.
This Samtec TSM series pin header is widely used in electronics manufacturing, communication equipment, test instrumentation, and industrial automation. Its reliable performance under demanding conditions supports efficient and stable electrical connectivity in complex PCB assemblies.
Explore more high-quality PCB connectors and electronic components on EnvMart to enhance your projects and products.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 7A and a voltage rating of 475V, making it suitable for demanding electronic systems.
It operates efficiently within a temperature range of -55°C to 125°C, suitable for harsh environments.
The housing is made of liquid crystal polymer, while the contacts are phosphor bronze plated with 0.25μm gold for excellent conductivity and corrosion resistance.
It features 40 male contacts arranged in 2 rows with a pitch of 2.54 mm.
This connector has a right angle orientation, which is suitable for space-saving PCB layouts.
The termination type for this model is solder, ensuring a robust connection.
The mating pin length is 8.13 mm, providing secure and stable connections with compatible socket strips.
It utilizes surface mount technology (SMT), facilitating efficient PCB assembly and compact design.
This model supports both board-to-board and wire-to-board connector systems, offering flexibility in design.
The TSM-120-02-L-DH is an unshrouded design, allowing for easier access during soldering and mating.
The country of origin for this pin header is India.
This model is widely used in electronics manufacturing, communication equipment, test instrumentation, and industrial automation.
