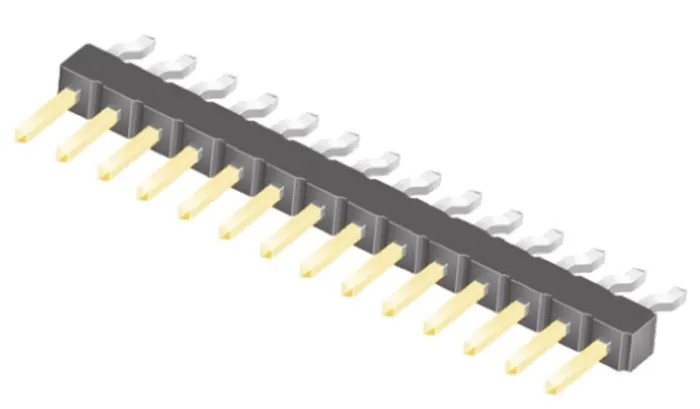

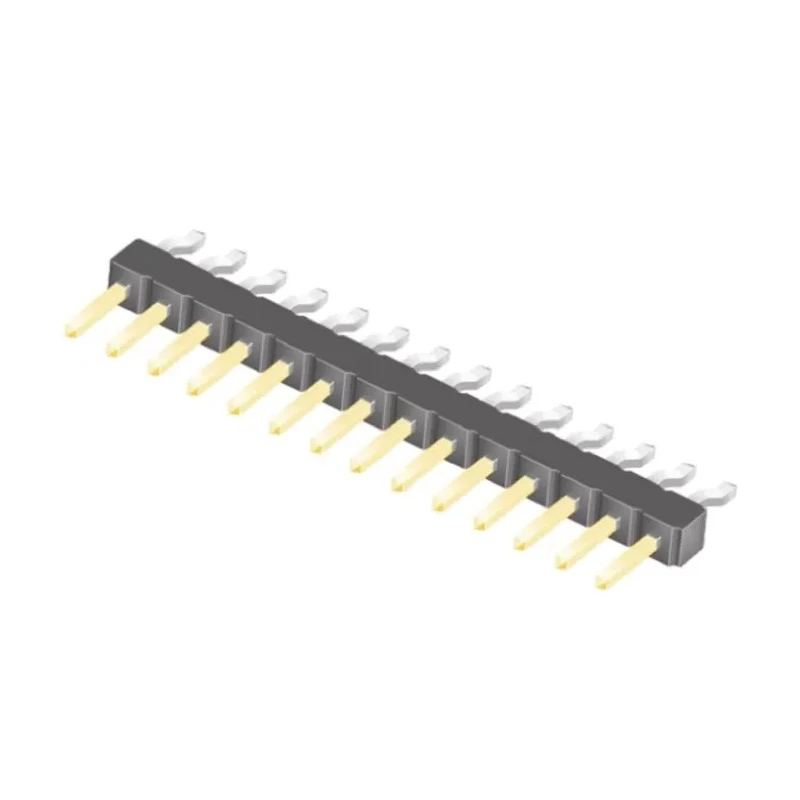

Samtec TSM Series Right Angle Surface Pin Header 14 Contacts 2.54 mm Pitch 1 Row Unshrouded TSM-114-01-L-SH

Samtec TSM-114-01-L-SH is a high-quality right angle surface mount pin header designed for advanced PCB applications. It features 14 male contacts in a single row configuration with a standardized 2.54 mm pitch, making it suitable for board-to-board or wire-to-board connections.

The housing is crafted from black liquid crystal polymer, delivering excellent durability and temperature resistance. The phosphor bronze contacts are plated with a precise 0.25μm layer of gold on the post area for optimal conductivity and corrosion resistance, while the tail end uses matte tin for reliable solder connections.

This component supports electrical specifications of 7 amps current and up to 475 volts operating voltage, ensuring stable performance in demanding electronic circuits. Its operating temperature range from -55°C to 125°C makes it suitable for industrial, commercial, and laboratory use.

The solder termination type and surface mount technology facilitate easy and secure PCB integration. The 5.84 mm mating pin length ensures dependable interfacing with compatible female connectors such as TSW series or SSM surface mount socket strips.

This pin header series includes various configurations such as single and double row, straight and right angle orientations, and different post heights to meet diverse design requirements. The unshrouded design allows greater accessibility in board layouts where space or specific electrical isolation is not critical.

The housing is made from liquid crystal polymer for enhanced thermal and mechanical stability. Gold-plated phosphor bronze contacts provide excellent conductivity and durability. Supports a wide operating temperature range from -55°C up to 125°C.

Rated for 7 A current and 475 V voltage, ensuring robust electrical performance. Surface mount right angle orientation enables compact PCB assembly. Post length of 5.84 mm allows solid connections with mating connectors.

Compatible with a variety of socket strips and connectors for flexible integration. Unshrouded design facilitates easy access and flexible layout placement.

This Samtec TSM series pin header is ideal for industrial electronics, manufacturing equipment, communication devices, and other applications requiring reliable and compact PCB interconnections. Explore more PCB connectors and headers in EnvMart's extensive catalog for complete electronic assembly solutions.
