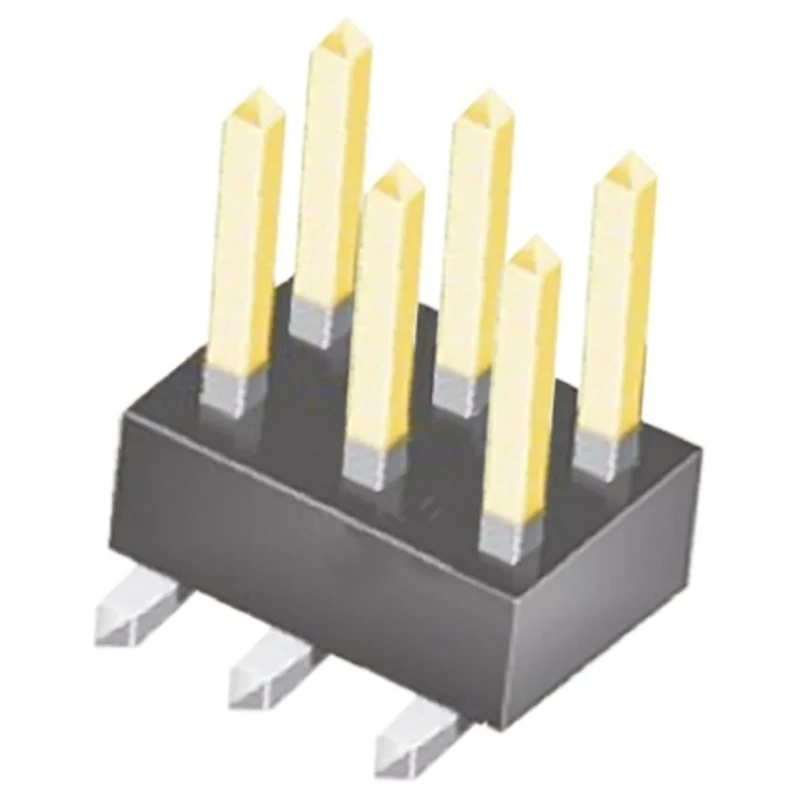

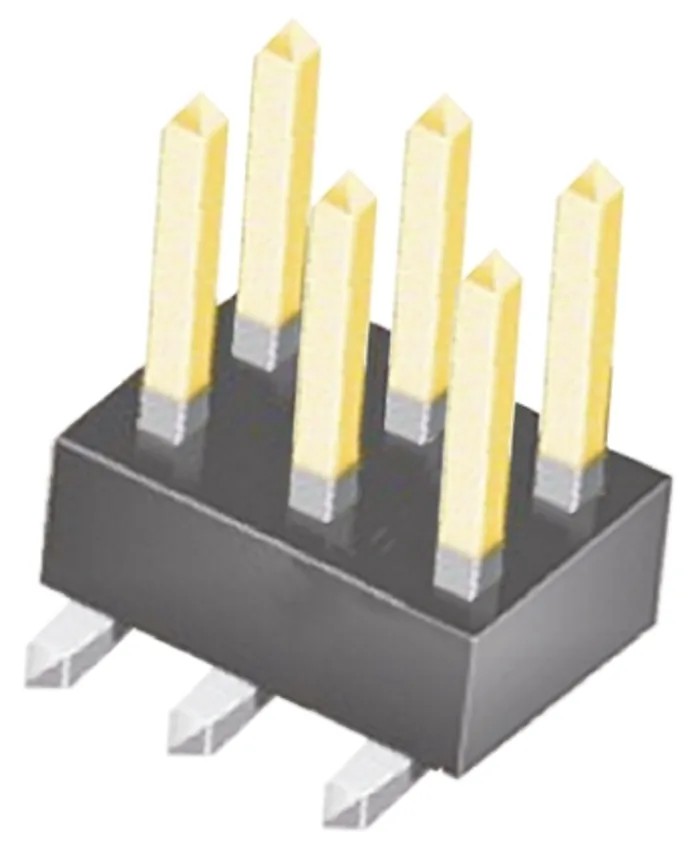

Samtec TSM Series Straight Surface Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSM-103-02-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-103-02-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 8.13mm |
Key Features
- Designed for SMT board-to-board and wire-to-board applications.
- Constructed with a liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with 0.25μm gold on the post ensures reliable connectivity.
- Operates within a temperature range of -55°C to 125°C.
- Current rating of 7A and voltage rating of 475V allow versatile electronic applications.
- Unshrouded male straight contact design allows easy mating with compatible sockets.
- Surface mount type with a mating pin length of 8.13 mm.
Product Description
Samtec TSM-103-02-L-DV is a high-quality SMT straight surface pin header designed for electronic components and connector applications requiring reliable board-to-board and wire-to-board connections. This 2-row header features 6 contacts with a precise 2.54 mm pitch, housed in a robust liquid crystal polymer material providing excellent mechanical and thermal stability.
The pins are made of phosphor bronze with gold plating of 0.25μm on the posts ensuring superior conductivity and corrosion resistance, and matte tin on the tails for soldering. This combination guarantees dependable signal integrity even in demanding conditions. The unit supports electrical specifications up to 7A current and 475V voltage, suitable for various industrial and commercial electronics use cases.
Operating temperature range extends from -55°C to 125°C, making it suitable for harsh environments including industrial, manufacturing, and laboratory equipment. The board-mounted surface type facilitates efficient assembly and secure attachment on printed circuit boards.
Its unshrouded, male contact orientation allows compatibility with a wide range of female surface mount socket strips and offers flexibility in design configurations. The mating pin length of 8.13 mm ensures reliable engagement with corresponding sockets.
Designed for SMT board-to-board and wire-to-board electronic connections. Liquid crystal polymer insulator provides mechanical strength and thermal stability. Phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance.
Wide operating temperature range of -55°C to 125°C. Rated for 7A current and 475V voltage. Unshrouded male straight contacts with 2 rows and 6 contacts total. Surface mount type facilitating secure PCB mounting.
Ideal for use in electronics manufacturing, industrial automation, telecommunications, and embedded system applications requiring durable and precise pin headers. Choose the Samtec TSM-103-02-L-DV for dependable connectivity in complex electronic assemblies.
Explore the entire range of PCB Pin Headers and Surface Mount Components at EnvMart for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7A and a voltage rating of 475V, making it suitable for various electronic applications.
The contacts in this pin header are spaced at a pitch of 2.54 mm, which is standard for many electronic connections.
It operates within a temperature range of -55°C to 125°C, allowing it to function in harsh environments.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
This pin header features a total of 6 contacts arranged in 2 rows, providing multiple connection points.
It uses solder termination, which is common for secure connections on printed circuit boards.
The mating pin length is 8.13 mm, ensuring reliable engagement with compatible sockets.
This model is unshrouded, allowing for easy mating with compatible sockets without obstruction.
It is designed for SMT board-to-board and wire-to-board applications, suitable for electronics manufacturing, industrial automation, and telecommunications.
It supports both board-to-board and wire-to-board connector systems, providing versatility in electronic assemblies.
The Samtec TSM-103-02-L-DV pin header is manufactured in India.
This model utilizes surface mounting, facilitating efficient assembly on printed circuit boards.
