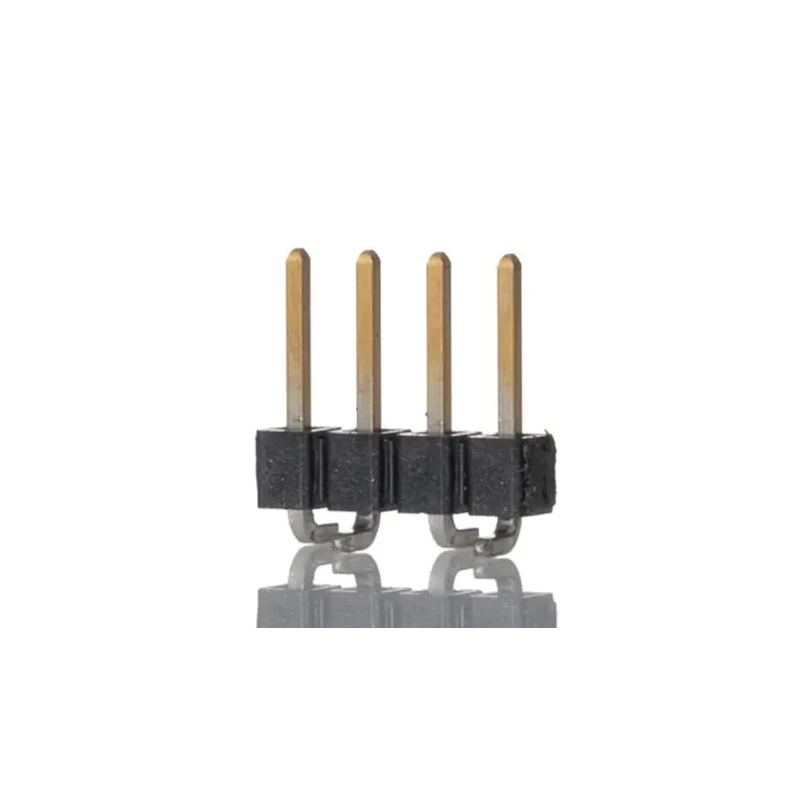

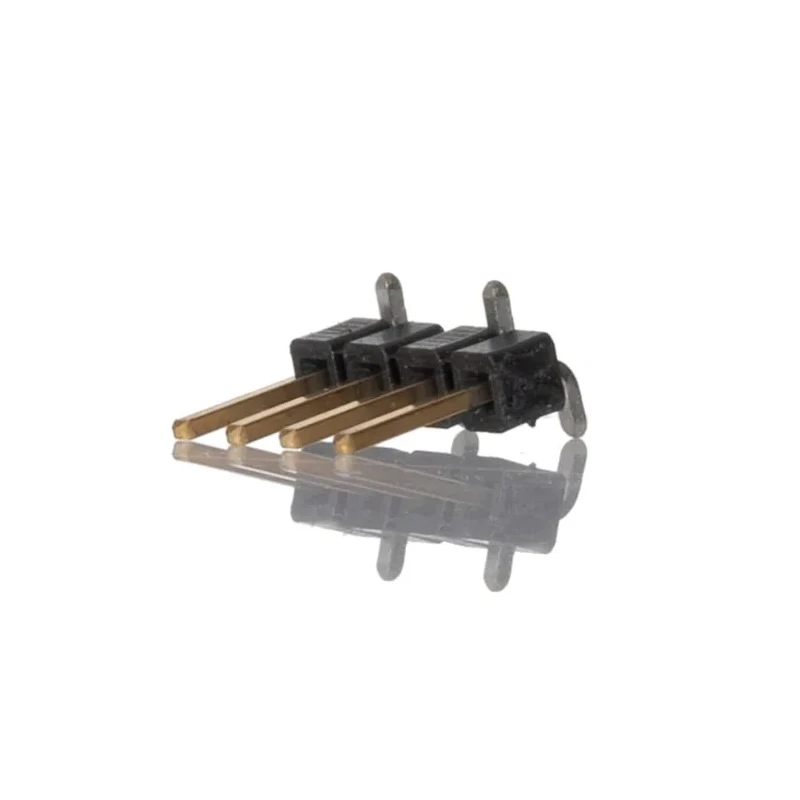

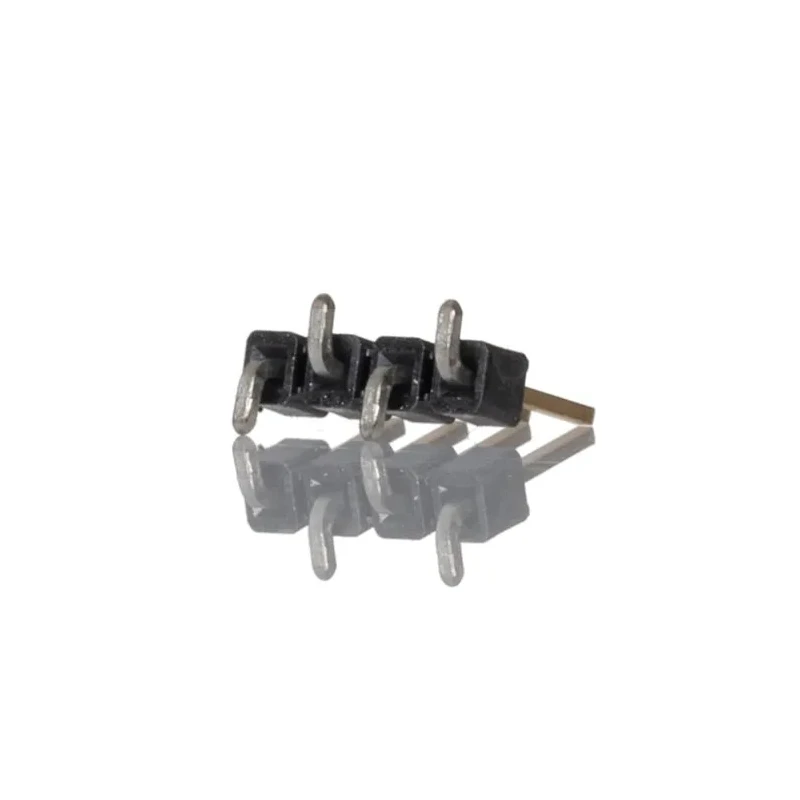

Samtec TSM Series Straight Surface Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded, 7A Current TSM-104-01-L-SV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-104-01-L-SV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- Straight body orientation enables easy surface mount installation.
- Gold plating on contacts ensures excellent conductivity and durability.
- Phosphor bronze contact material provides reliable electrical performance.
- Unshrouded design allows easy mating with corresponding connectors.
- Suitable for board-to-board and wire-to-board applications.
- Operates from a minimum temperature of -55°C to a maximum of 125°C.
- Supports up to 475V operating voltage for versatile electronic uses.
- Solder termination type facilitates robust mounting on PCB surfaces.
Product Description
Samtec TSM-104-01-L-SV Straight Surface Pin Header is a high-performance PCB connector designed for industrial and electronic applications demanding reliable connections. This component features 4 male contacts arranged in a single row with a standard 2.54 mm pitch, making it well-suited for both wire-to-board and board-to-board connections.
The pin header uses phosphor bronze contacts plated in gold, ensuring excellent conductivity, durability, and resistance to corrosion. The unshrouded, straight orientation design allows for easy installation and integration into a wide variety of electronic assemblies where surface mount technology is employed.
This product operates reliably within a wide temperature range from -55°C to 125°C, supporting electrical currents up to 7 amperes at operating voltages reaching 475 volts. The solder termination type guarantees solid mechanical and electrical bonds to PCB pads, which is essential in automated manufacturing environments.
Applications include power distribution, signal board connections, and embedded electronics assemblies across industrial, manufacturing, automation, and consumer electronics sectors. Its compact form and high electrical ratings make it ideal for demanding environments requiring optimized space and performance.
Straight body orientation enables easy surface mount installation. Gold plating on contacts ensures excellent conductivity and durability. Phosphor bronze contact material provides reliable electrical performance. Unshrouded design allows easy mating with corresponding connectors.
Suitable for board-to-board and wire-to-board applications. Wide operating temperature range from -55°C to 125°C. Supports up to 475V operating voltage for versatile electronic uses. Solder termination type facilitates robust mounting on PCB surfaces.
Mating pin length of 5.84 mm ensures secure connector engagement.
This Samtec TSM Series pin header is a trusted choice in electronics manufacturing, providing durability, reliability, and excellent electrical performance for demanding applications. Browse more connectors and PCB components in the Electronics & Electricals category at EnvMart to find complementary parts.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 7 amperes.
It can operate at voltages up to 475 volts.
The pitch size is 2.54 mm, making it compatible with standard PCB layouts.
It operates reliably within a temperature range of -55°C to 125°C.
This unit features 4 male contacts arranged in a single row.
It uses a solder termination type for robust mounting on PCB surfaces.
The contacts are made of phosphor bronze with gold plating, and the housing is constructed from liquid crystal polymer.
The unshrouded design of this model allows for easy mating with corresponding connectors.
It is suitable for board-to-board and wire-to-board applications, including power distribution and signal board connections.
The mating pin length is 5.84 mm, ensuring secure connector engagement.
This model is designed for surface mount installation, facilitating integration into electronic assemblies.
The country of origin for this pin header is India.
