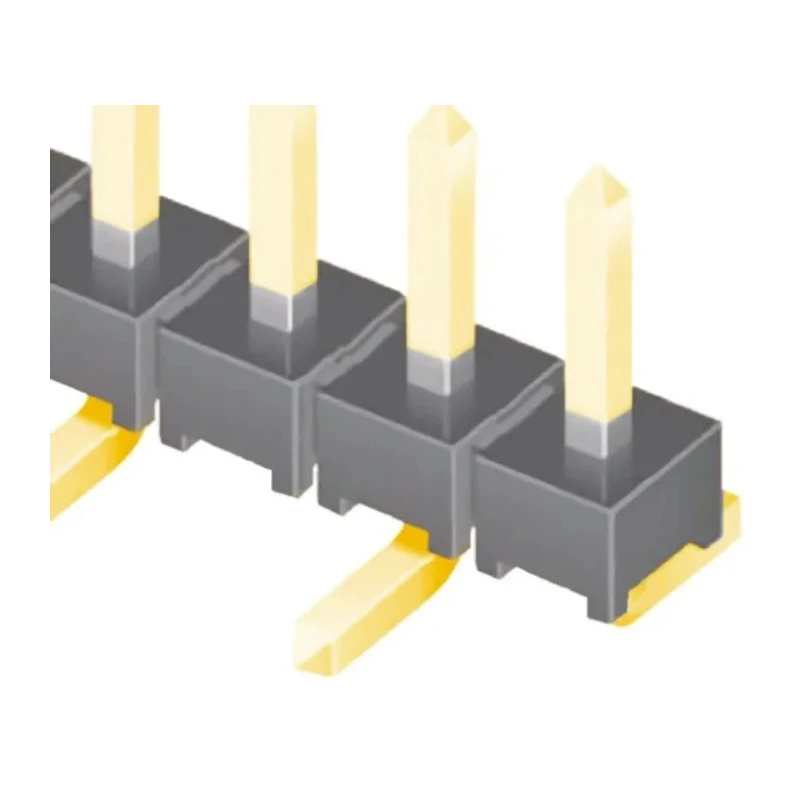

Samtec TMM Series Straight Surface Pin Header 20 Contacts 2 mm Pitch 1 Row Unshrouded TMM-120-01-G-S-SM
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55°C to +125°C with Gold |
| Current | 3.9A |
| Model | TMM-120-01-G-S-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
| Mating Pin Length | 3.2mm |
| Insulator Material | Black LCP |
| TMM-1xx-01-L-x-SM | 0.25μm Gold plated Posts with Tin Plated Tails |
| TMM-1xx-01-G-x-SM | 0.75μm Gold plated Posts with 0.075μm Gold Plated Tails |
Key Features
- Features gold-plated phosphor bronze contacts for superior conductivity and corrosion resistance.
- Housing made from durable black Liquid Crystal Polymer (LCP) ensuring stability and heat resistance.
- Operating temperature range from -55°C to +125°C suitable for harsh environments.
- Surface mount technology (SMT) package type with a low profile of 2.77 mm.
- Rated for 3.9 A current and 500 V voltage for reliable electrical performance.
- Designed with 3.5 mm tail pin length and 3.2 mm mating pin length for secure mating.
- Unshrouded single row configuration with 20 male contacts for versatile PCB applications.
- Meets industry standard pitch of 2 mm ensuring compatibility with many sockets and connectors.
Product Description
Samtec TMM-120-01-G-S-SM is a high-quality straight surface mount pin header featuring 20 contacts arranged in a single row with a 2 mm pitch. Manufactured with gold-plated phosphor bronze contacts and a housing material of black Liquid Crystal Polymer, this connector is engineered for durability and excellent conductivity.
Its operational temperature range of -55°C to +125°C makes it suitable for demanding industrial, commercial, and electronic applications. The unshrouded design facilitates easy mating with compatible sockets such as Samtec's SQT, SQW, TLE, SMM, and MMS series.
The pin header supports a current of 3.9 Amperes and voltage rating of 500 Volts, ensuring robust performance in board-to-board and wire-to-board connections. The termination type is solder with a tail pin length of 3.5 mm and mating pin length of 3.2 mm, optimizing for secure and reliable solder joints.
This component is packaged in tubes, ready for insertion into machinery, improving production efficiency. It caters to electronic manufacturing, PCB assembly, power connector setups, and related industrial electronics sectors.
Gold-plated phosphor bronze contacts for conductivity and corrosion resistance. Black Liquid Crystal Polymer housing for heat resistance and stability. Suitable for operating temperatures from -55°C to 125°C. 20 male contacts in a single row with 2 mm pitch.
Surface mount package with low profile height of 2.77 mm. Rated 3.9 A current and 500 V voltage. Compatible with Samtec SQT, SQW, TLE, SMM, and MMS series sockets. Solder termination with 3.5 mm tail pin length. Unshrouded connector for versatile PCB use.
Ideal for industrial, commercial, and electronic assembly applications.
This Samtec PCB header is a reliable choice for engineers and manufacturers demanding performance and durability. Explore full Samtec product lines and other PCB Headers at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is -55°C to +125°C, making it suitable for harsh environments.
It is rated for a current of 3.9 Amperes and a voltage of 500 Volts, ensuring reliable electrical performance.
The contacts are made from gold-plated phosphor bronze, while the housing is constructed from black Liquid Crystal Polymer (LCP).
This model features 20 male contacts arranged in a single row with a 2 mm pitch.
The tail pin length is 3.5 mm, which helps ensure secure solder joints.
This pin header is designed as an unshrouded connector, allowing for versatile PCB applications.
It uses solder termination, which is standard for secure connections in PCB applications.
The height of this model is 2.77 mm, providing a low profile for space-constrained applications.
It is compatible with Samtec's SQT, SQW, TLE, SMM, and MMS series sockets.
This connector is suitable for board-to-board and wire-to-board connections in electronic manufacturing and PCB assembly.
The country of origin for this pin header is India.
The pitch of this connector is 2 mm, which meets industry standards for compatibility with various sockets and connectors.
