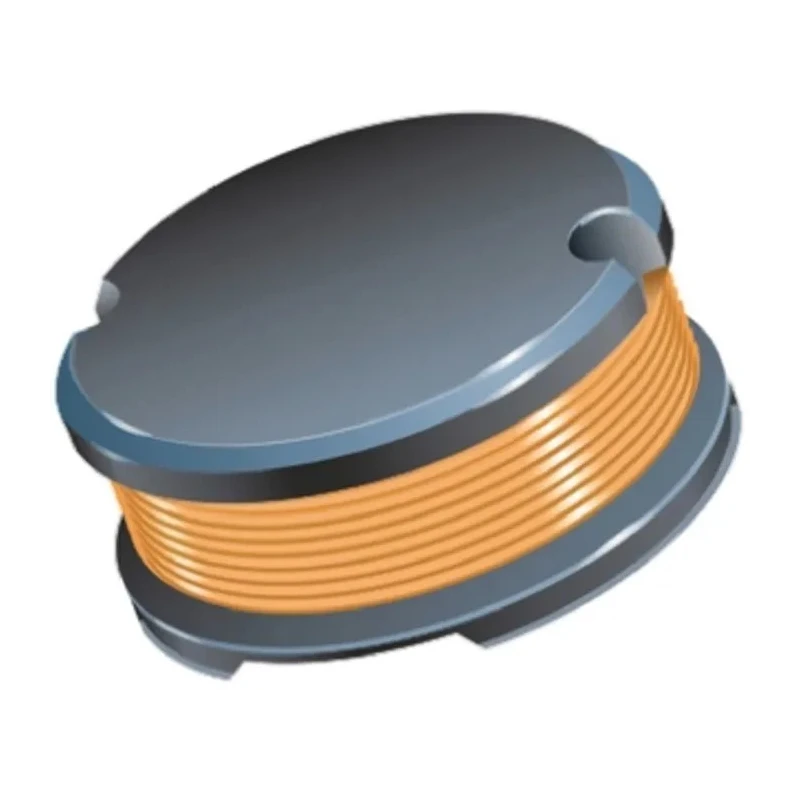

Bourns Wirewound Surface Mount Inductor SDR0604 27 μH ±15 % 1.3 A Idc Ferrite DR Core 0604 Package SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 27μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 1.3A |
| Maximum DC Resistance | 220mΩ |
| Inductance Tolerance | ±15 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 14MHz |
| Minimum Quality Factor | 28 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite DR core to ensure stable magnetic performance.
- Surface mount termination style in compact 0604 package size of 5.8mm diameter.
- Rated for operation between -40°C to 125°C suitable for industrial applications.
- Maximum DC resistance of 220mΩ minimizing power losses.
- Quality factor of 28 and self-resonant frequency up to 14MHz for enhanced reliability.
- RoHS compliant ensuring environmental safety and regulatory adherence.
- Designed for use in DC/DC converters and power supply input/output filtering.
- Available in convenient reel packaging for assembly line deployment.
Product Description
Bourns SDR0604 Wirewound Surface Mount Inductor with ferrite DR core provides a nominal inductance of 27 μH ±15 % with a maximum DC current rating of 1.3 A. This 0604 package component features a compact diameter of 5.8 mm and a profile height of 4.8 mm, optimized for surface mount technology.
This inductor is constructed using premium wirewound techniques to ensure stability and precision in demanding electronic circuits. It operates effectively in temperature ranges from -40°C to 125°C, supporting a wide range of industrial and commercial applications.
The maximum DC resistance is rated at 220 mΩ, delivering efficient current flow with minimal losses. With a quality factor of 28 and a maximum self-resonant frequency of 14 MHz, this inductor is ideal for high-frequency filtering applications.
The component is RoHS compliant, promoting environmentally responsible design and manufacturing practices. It is primarily used in input/output sections of DC/DC converters and power supplies to reduce electromagnetic interference and improve circuit stability.
The SDR0604 series inductors come in reel packaging, facilitating automated pick-and-place manufacturing processes that enhance production efficiency. Its unshielded design offers flexibility where shielding is not required.
Constructed with a ferrite DR core to ensure stable magnetic performance. Compact 0604 package with 5.8 mm diameter and 4.8 mm height profile. Maximum DC current of 1.3 A with low 220 mΩ resistance. Operating temperature range from -40°C to 125°C.
High quality factor of 28 suitable for high-frequency circuits. RoHS compliant and environmentally safe. Used in DC/DC converter and power supply filtering applications. Packaged in reels for automated assembly processes.
Ideal for industrial electronics, power management systems, and advanced manufacturing environments. Explore more Surface Mount Inductors to suit your electronic design requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR0604 inductor has a nominal inductance of 27 μH with a tolerance of ±15%.
This model is rated for a maximum DC current of 1.3 A.
The maximum DC resistance is rated at 220 mΩ, which helps minimize power losses.
It operates effectively within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency of this inductor is 14 MHz.
This inductor has a minimum quality factor of 28, suitable for high-frequency applications.
The SDR0604 is constructed with a ferrite DR core, ensuring stable magnetic performance.
The inductor has a diameter of 5.8 mm and a height of 4.8 mm, fitting the compact 0604 package size.
It features a surface mount termination style, optimized for surface mount technology.
Yes, it is RoHS compliant, ensuring adherence to environmental safety regulations.
This inductor is primarily used in DC/DC converters and power supply input/output filtering applications.
The SDR0604 is available in convenient reel packaging, facilitating automated assembly processes.
