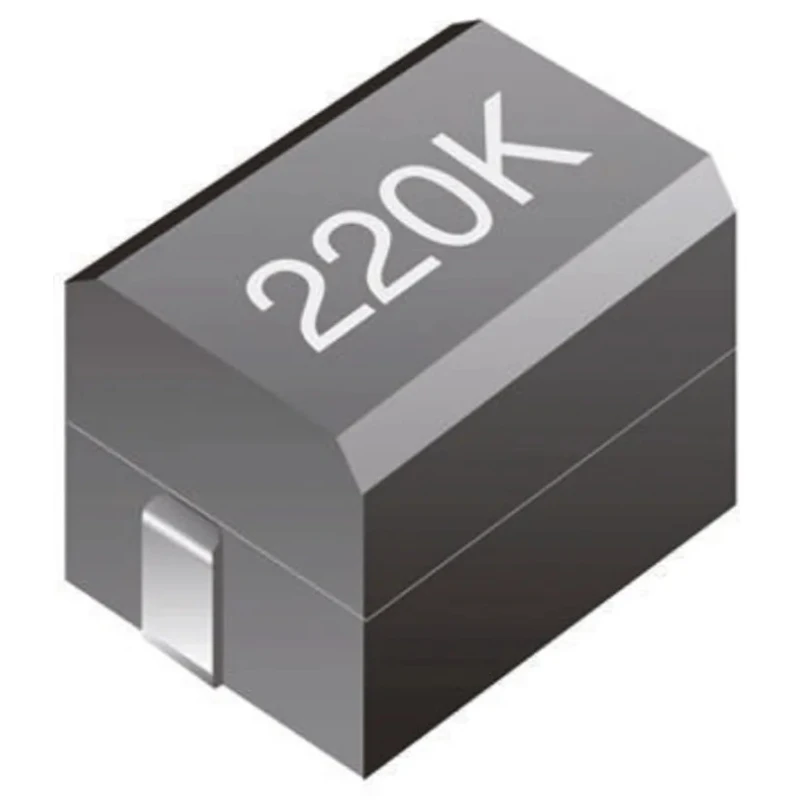

Bourns Wirewound Surface Mount Inductor 1 mH ±10% 30 mA Idc Ferrite Core 1812 Package CM45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | CM45 |
| Depth | 3.2mm |
| Packaging | Reel |
| Series | CM45 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 30mA |
| Maximum DC Resistance | 40Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.5MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for enhanced magnetic properties.
- Package size of 1812 (4.5mm length x 3.2mm height x 3.2mm depth) suitable for automatic surface mounting.
- Maximum DC resistance of 40 ohms ensuring efficient operation.
- Moulded wirewound inductor construction providing mechanical strength and heat resistance.
- Maximum operating temperature rated at 125°C for reliable performance.
- RoHS compliant ensuring environmental safety standards.
- Minimum quality factor of 30 delivering good inductive efficiency at operating frequencies.
- Unshielded design without automotive standard certification.
Product Description
Bourns CM45 wirewound Surface Mount Inductor with a ferrite core delivers reliable inductance of 1 mH with ±10% tolerance for precise electronic filtering and energy storage applications.
This 1812 package size component measures 4.5mm in length and 3.2mm in both height and depth. Its surface mount termination style allows for efficient automated PCB assembly. The inductor offers a maximum DC current rating of 30 mA and a maximum DC resistance of 40 ohms, ensuring optimal current handling and minimal power loss.
Constructed with wirewound technology and moulded for additional mechanical robustness, it withstands temperatures up to 125°C, suitable for demanding industrial electronics environments.
It is RoHS compliant, supporting environmental safety requirements in electronic manufacturing, though it is not automotive standard certified and features an unshielded design.
The minimum quality factor of 30 ensures efficient performance at frequencies up to a maximum self-resonant frequency of 2.5 MHz, making it ideal for signal conditioning in industrial, communication, and consumer electronic devices.
Ferrite core enhances magnetic efficiency. Compact 1812 package allows automated surface mount technology (SMT) assembly. High operating temperature tolerance for industrial use. Wirewound and moulded for durability and heat resistance.
Complies with RoHS environmental standards. Suitable for signal filtering and energy storage up to 2.5 MHz frequency. Precise inductance with ±10% tolerance provides design reliability. Unshielded construction for standard inductance needs without shielding requirements.
This Bourns CM45 series inductor is commonly used in electronic component manufacturing, industrial electronics, communication devices, and power supply circuits requiring precise inductance components. Explore more in Bourns product range in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 mH with a tolerance of ±10%.
The dimensions of the 1812 package are 4.5mm in length, 3.2mm in height, and 3.2mm in depth.
The maximum DC current rating for this inductor is 30 mA.
It has a maximum operating temperature of 125°C.
This inductor is constructed with a ferrite core, enhancing its magnetic properties.
The maximum DC resistance is 40 ohms, ensuring efficient operation.
The minimum quality factor is 30, which indicates good inductive efficiency at operating frequencies.
The maximum self-resonant frequency is 2.5 MHz, suitable for signal conditioning applications.
This inductor features a surface mount termination style, allowing for efficient automated PCB assembly.
Yes, this model is RoHS compliant, meeting environmental safety standards.
It is commonly used in electronic component manufacturing, industrial electronics, communication devices, and power supply circuits.
This inductor is constructed using wirewound technology, which provides mechanical strength and heat resistance.
