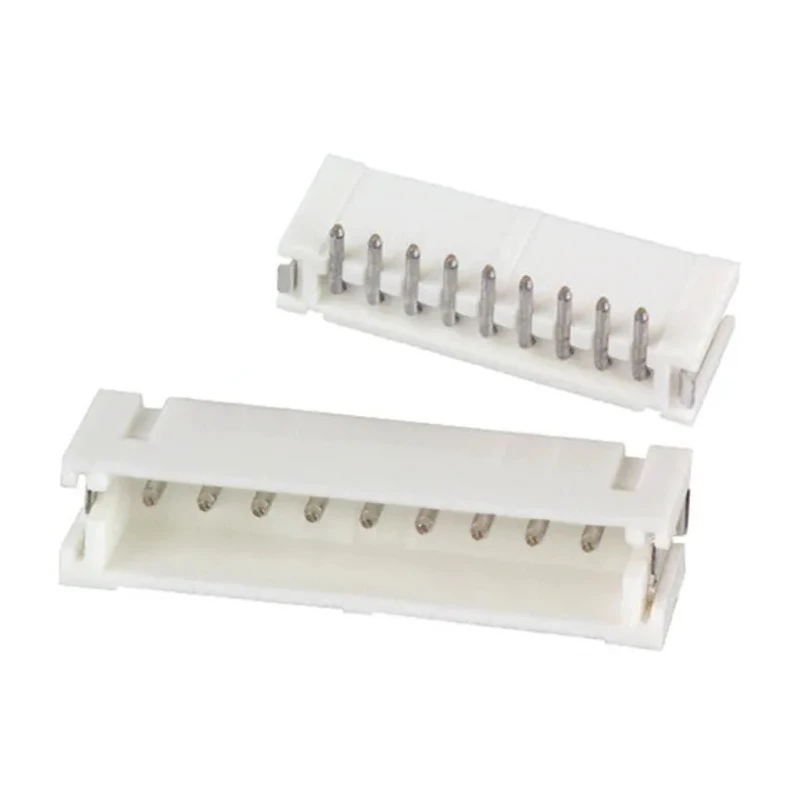

JST ZH Series Top Entry Surface PCB Header 9 Contacts 1.5 mm Pitch 1 Row Shrouded B9B-ZR-SM4 TF (LF) (SN)

JST B9B-ZR-SM4 TF (LF) (SN) is a top entry surface mount PCB header from the ZH Series, designed with a 1.5 mm pitch and 9 male contacts arranged in a single row. This shrouded connector offers a compact and low profile solution that reduces installation space by approximately 45% compared to standard 2 mm pitch connectors. The polyamide housing provides mechanical strength and electrical insulation, while the brass contacts with tin plating ensure reliable conductivity and corrosion resistance.

The connector supports a current rating of 1A and a maximum voltage of 50V, suitable for various electronic circuit designs requiring wire-to-board connectivity. It is engineered to operate reliably in temperature extremes from -25°C up to 85°C, making it suitable for industrial, automotive, telecommunications, and consumer electronics applications. The shrouded design safeguards the contacts while contact retention lances allow easy visual verification of proper mating.

This JST ZH series connector is surface mount technology (SMT) mounted, facilitating automated PCB assembly processes. It is compatible with corresponding ZH housings and JST ZR insulation displacement connectors, allowing flexible system configurations in compact electronic assemblies. The connector's top entry orientation supports ease of installation in space-constrained environments.

In industrial and manufacturing contexts, the JST B9B-ZR-SM4 ensures efficient, secure, and compact wire-to-board connections, ideal for high-density electronic systems. Its robust design and proven materials meet rigorous operational requirements, promoting durability and reliability.

Compact, low profile design saves installation space. Features a shrouded housing for secure contact protection. Made with polyamide housing material for durability. Brass contacts with tin plating ensure good electrical conductivity.

Designed for a maximum voltage of 50V and current rating of 1A. Suitable for surface mount technology (SMT) applications. Operates reliably from -25°C to 85°C temperature range. Contact retention lances provide visual confirmation of secure insertion.

Compatible with JST ZR insulation displacement connectors. Explore our Electronics Components category for more PCB Connectors and related solutions at EnvMart.
