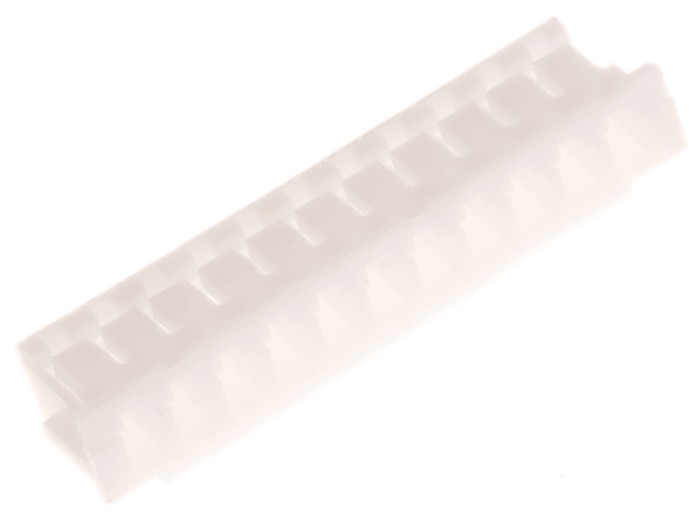

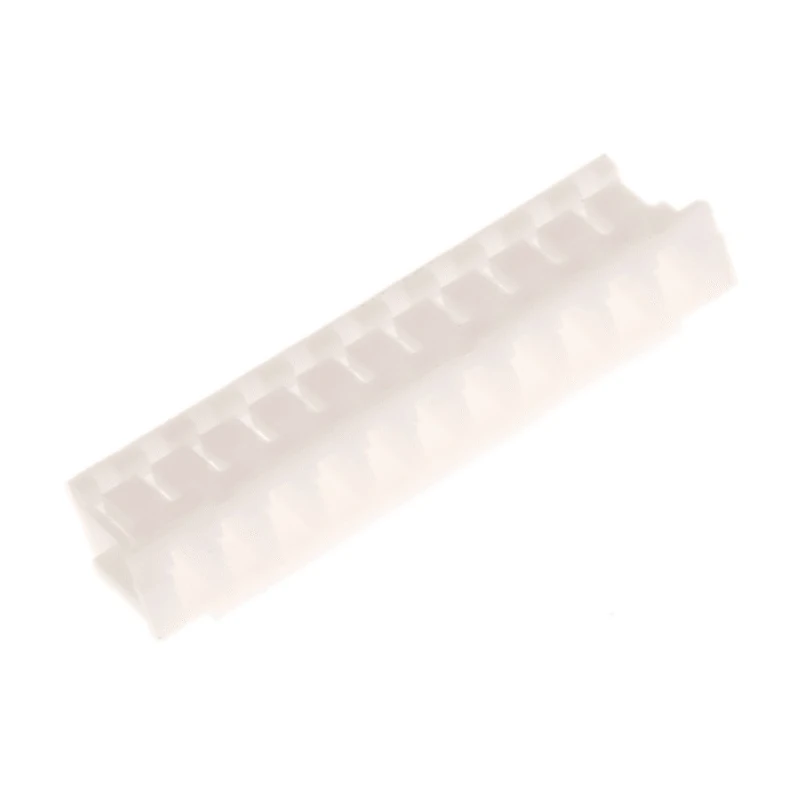

JST ZH Female Connector Housing 1.5 mm Pitch 11 Way 1 Row Side Entry ZHR-11

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Female Connector Housing 1.5 mm Pitch 11 Way 1 Row Side Entry ZHR-11



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	Korea
Brand	JST
Orientation	Side Entry
Length	18mm
Model	ZHR-11
Width	4.8mm
Mount Type	Cable
Housing Material	Polyamide
Series	ZH
Interfaces	lances
Number of Rows	1
Pitch	1.5mm
For Use With	ZH Series Dis-Connectable Crimp Style Connector
Number of Contacts	11
Connector Gender	Female
Approved	UL Recognised E60389, CSA Certified LR20812, TUV Certified R9351092

Key Features

Designed for use with JST ZH series dis-connectable crimp style connectors.
Compact 1.5 mm pitch with 11 contact points in one row.
Side entry orientation facilitates efficient cable routing.
Constructed from polyamide for durability and stability.
Wire-to-wire and wire-to-panel configurations supported.
Approved by UL Recognised E60389, CSA Certified LR20812, TUV Certified R9351092.
Commonly used in household appliances, industrial controls, and networking systems.
Offers visual confirmation of contact lock via retention lances.

Product Description

JST ZHR-11 female connector housing is a precision-engineered component designed for the ZH series which features a compact 1.5 mm pitch and accommodates 11 contact points in a single row side entry design. The housing is a cable mount type made from durable polyamide material to ensure reliable electrical insulation and mechanical stability.

With an 18 mm length and 4.8 mm width, this connector housing is optimized for printed circuit board (PCB) mounting applications. It supports both wire-to-wire and wire-to-panel configurations, making it versatile across a wide range of industrial and consumer electronics applications.

The side entry orientation of the housing aids in efficient cable management and installation in tight spaces. Visual confirmation of correct contact engagement is facilitated by built-in retention lances, enhancing connection reliability and reducing assembly errors.

JST ZHR-11 is certified by UL Recognised E60389, CSA Certified LR20812, and TUV Certified R9351092, indicating adherence to rigorous safety and quality standards.

These connector housings are widely used across various sectors such as household appliances, industrial control equipment, storage, and networking systems where compact and reliable electrical connections are critical.

Designed for use with JST ZH series dis-connectable crimp style connectors. Compact 1.5 mm pitch spacing ensures space-saving PCB layouts. Durable polyamide housing material provides mechanical strength and insulation. Side entry orientation supports efficient cable routing.

Supports single row 11 way contact configuration. Visual locking confirmation via retention lances improves assembly confidence. Widely applicable in industrial, commercial, and residential electronic systems. Manufactured in Korea, ensuring premium build quality and reliability.

Explore the extensive range of Connector Housings and electronic components available to support your design and manufacturing needs. JST ZHR-11 offers industry-grade performance for demanding applications.
