JST ZH Series Top Entry Through Hole PCB Header 3 Contacts 1.5 mm Pitch 1 Row Shrouded B3B-ZR (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Series Top Entry Through Hole PCB Header 3 Contacts 1.5 mm Pitch 1 Row Shrouded B3B-ZR (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Korea
Voltage	50V
Brand	JST
Orientation	Top Entry
Current	1A
Model	B3B-ZR (LF)(SN)
Mount Type	Through Hole
Housing Material	Glass Filled Nylon
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	lances
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact 1.5 mm pitch wire-to-board connection system for tight spaces.
Top entry orientation supports easy vertical mounting on PCBs.
Shrouded housing made of glass filled nylon ensures durability.
Brass contact material with tin plating provides reliable electrical conduction.
Supports through hole mounting for secure PCB attachment.
Current rating of 1 ampere suitable for low power applications.
Operating temperature range from -25°C to 85°C for versatile environments.
Compatible with JST ZR insulation displacement connectors.

Product Description

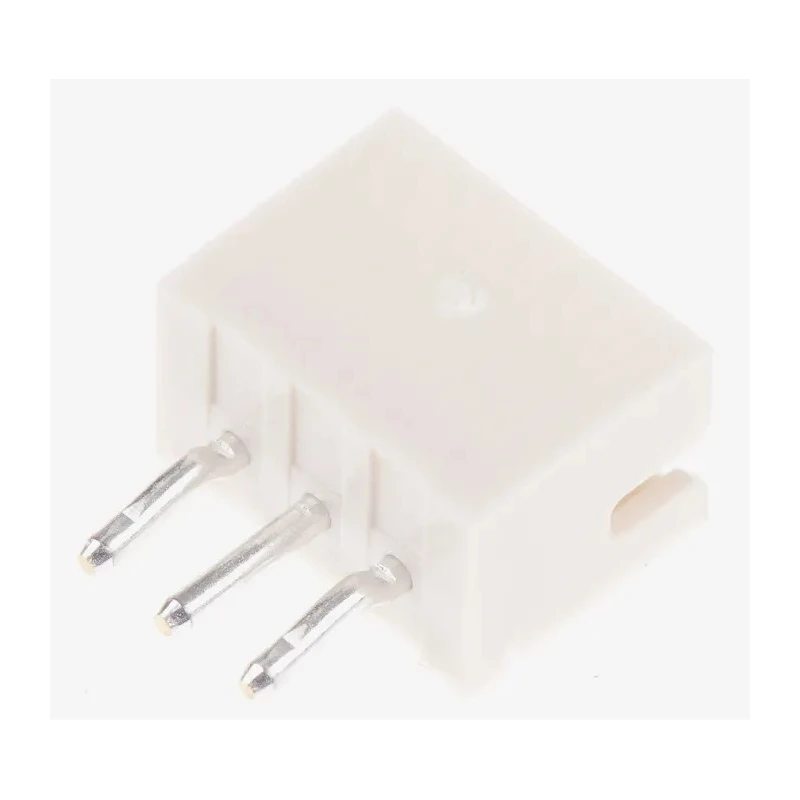

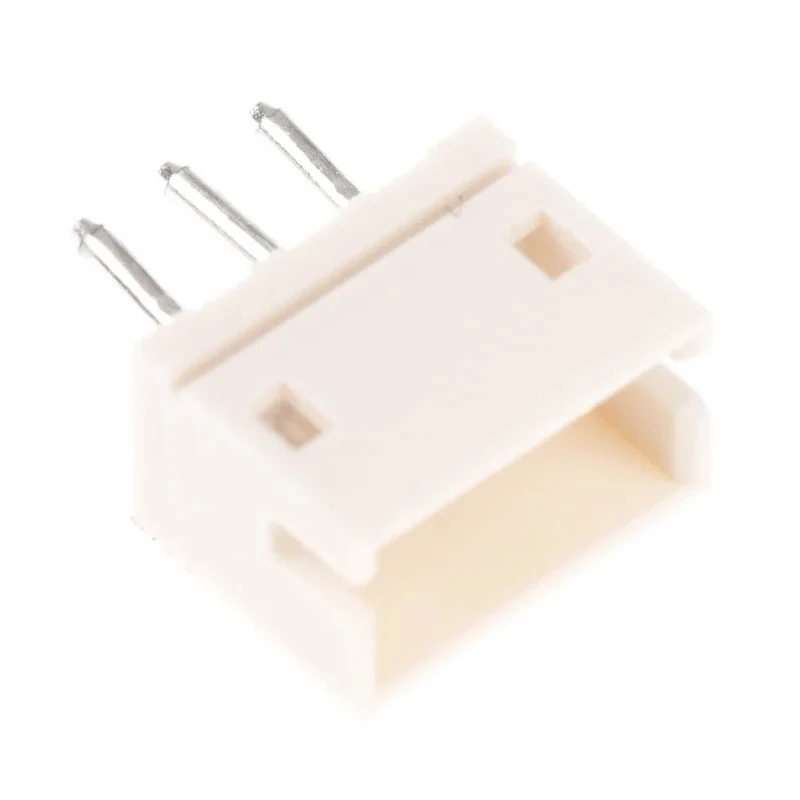

JST B3B-ZR (LF)(SN) is a top entry through hole PCB header designed for wire-to-board connection with a 1.5 mm pitch and 3 male contacts arranged in a single row. The shrouded housing is made from glass filled nylon which offers robust mechanical stability and features housing lances for reliable engagement. The contacts are brass with tin plating to ensure stable electrical performance. This header supports a current rating of 1A and a voltage rating of 50V, making it suitable for low power electronic applications.

Operating in temperature ranges from -25°C to 85°C, this connector is apt for a variety of industrial and electronic equipment, including telecommunications, instrumentation, and consumer electronics. The through hole mount type ensures strong mechanical fixation on printed circuit boards with thickness from 0.6 to 1.2 mm.

The compact 1.5 mm pitch design provides space-saving benefits while maintaining reliable connectivity. This JST ZH series header is compatible with the ZR insulation displacement connectors and fits seamlessly within JST's wire-to-board system offering efficient assembly and maintenance.

Compact 1.5 mm pitch wire-to-board connection system for tight spaces. Top entry orientation with secure through hole mounting. Shrouded glass filled nylon housing with housing lances. Brass contacts with tin plating ensure reliable conduction.

Supports a current rating of 1 A and voltage rating of 50 V. Operating temperature from -25°C to 85°C. Compatible with JST ZR insulation displacement connectors. Suitable for PC boards thickness between 0.6 and 1.2 mm. Ensures durable and reliable electrical connections in industrial and consumer electronics.

Ideal for industrial, telecommunications, laboratory, manufacturing and commercial electronic applications requiring compact and durable wire-to-board connectors. Browse our full range of PCB Headers and connectors at EnvMart for compatible products and accessories.
