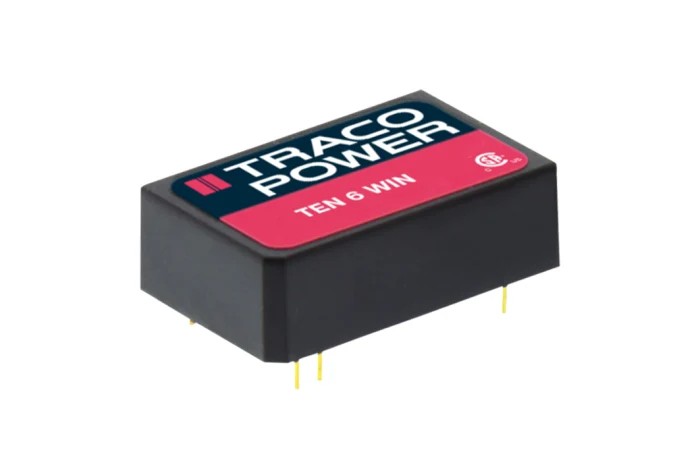

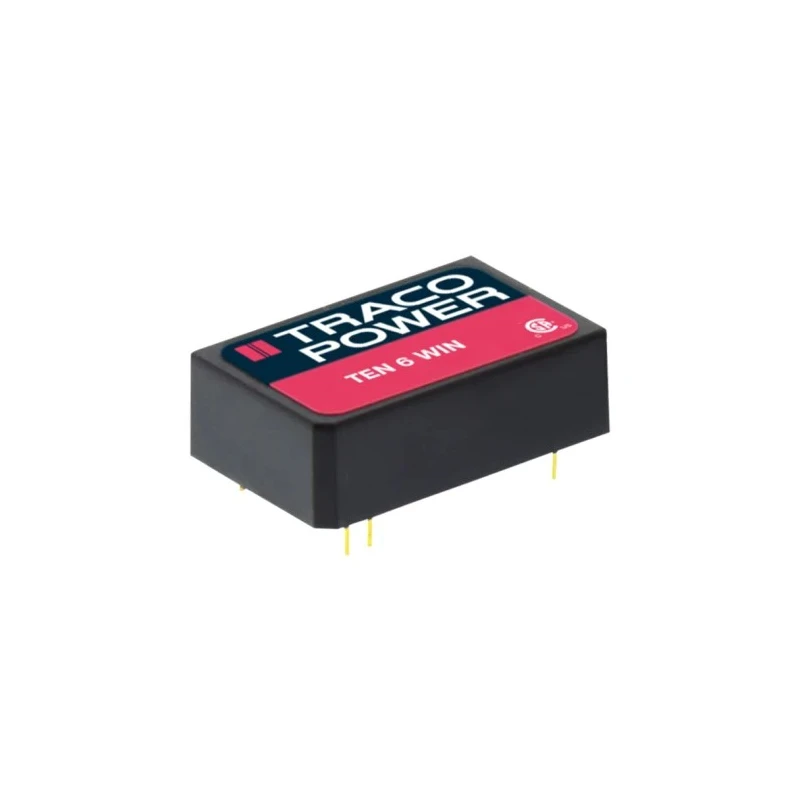

TRACOPOWER TEN 6WIN 6W Isolated DIP24 DC/DC Converter 3.3V DC Output 1.2A 9-36V DC Input 85°C Max Temp TEN 6-2410WIN
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 77% |
| Length | 31.8mm |
| Model | TEN 6-2410WIN |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TEN 6WIN |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 1.2A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Input Ratio 1 | 6 |
| TEN 6WIN Series 6W isolated DIP24 DC/DC converters with a wide 4 | 1 input voltage range, an optimized cost/performance ratio and a high efficiency. These TEN 6WIN Series isolated DC/DC converters have a DIP-24 standard plastic package making them ideal for drop in replacements for cost critical applications |
Key Features
- Compact and industry-standard DIP-24 through-hole mounting package for easy PCB integration.
- High efficiency of up to 77% ensures reliable energy conversion with minimal loss.
- Single isolated output providing 3.3V DC at 1.2A suitable for low voltage electronics.
- Makes an ideal drop-in replacement for cost-critical applications needing 6W power.
- Overload protection and no minimum load required for stability and safety.
- Robust isolation voltage of 1.5kV DC maintains safety between input and output circuits.
- Wide operating temperature range from -40°C to +85°C for industrial environments.
- Designed for long reliability with MTBF of 800,000 hours following MIL-HDBK-217F.
Product Description
TRACOPOWER TEN 6-2410WIN is a 6W isolated DC/DC converter featuring a DIP-24 package with through-hole mounting. This converter provides a single 3.3V DC output at 1.2A from a wide input voltage range of 9V to 36V DC, enabling flexible power supply applications.
Designed for industrial, electronics, and power supply applications, the TEN 6WIN series is optimized for cost and performance balance. The converter offers high electrical isolation of 1.5kV DC for enhanced safety in harsh environments. Its built-in overload protection and lack of minimum load requirements allow stable operation under varied load conditions.
The device features a plastic DIP-24 standard size package measuring 31.8mm (length) x 20.3mm (width) x 10.2mm (depth), making it ideal for PCB through-hole mounting. It sustains operation within a temperature range of -40°C to +85°C, suited for industrial temperature extremes.
The converter achieves an efficiency rating of approximately 77%, helping reduce power losses and heat generation in applications such as telecommunications, instrumentation, and industrial control equipment. With an MTBF of 800,000 hours as per MIL-HDBK-217F, it ensures long operational reliability. It also incorporates an internal filter to comply with EN 55022 class A electromagnetic interference requirements.
Wide 4:1 input voltage range from 9V to 36V DC. High efficiency and overload protection without minimum load. 1.5kV DC isolation voltage increases system safety. DIP-24 through-hole mounting package for easy PCB installation.
Operating temperature range -40°C to +85°C. Long MTBF of 800,000 hours enhances reliability. Internal EMI filter meets EN 55022 class A standards.
Ten 6WIN converters are suited for industrial power supplies, laboratory equipment, communication systems, and various embedded electronics where compact, efficient, and reliable power conversion is required. Choose TRACOPOWER TEN 6-2410WIN for a trusted DC/DC conversion solution at 6W output power.
Explore the Electronics & Electricals category on EnvMart for more DC/DC Converters and power supply solutions from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a single output of 3.3V DC at a maximum current of 1.2A.
It operates within a wide input voltage range of 9V to 36V DC.
The maximum output power of this unit is 6W.
It achieves an efficiency rating of approximately 77%.
The package dimensions are 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It features a robust isolation voltage of 1.5kV DC, ensuring safety between input and output circuits.
This unit operates within a temperature range of -40°C to +85°C.
No, it does not require a minimum load for stability and safety during operation.
The mean time between failures (MTBF) is 800,000 hours as per MIL-HDBK-217F.
It supports through-hole mounting in a standard DIP-24 package.
It is designed for industrial power supplies, laboratory equipment, communication systems, and embedded electronics.
It incorporates an internal filter to comply with EN 55022 class A electromagnetic interference requirements.
