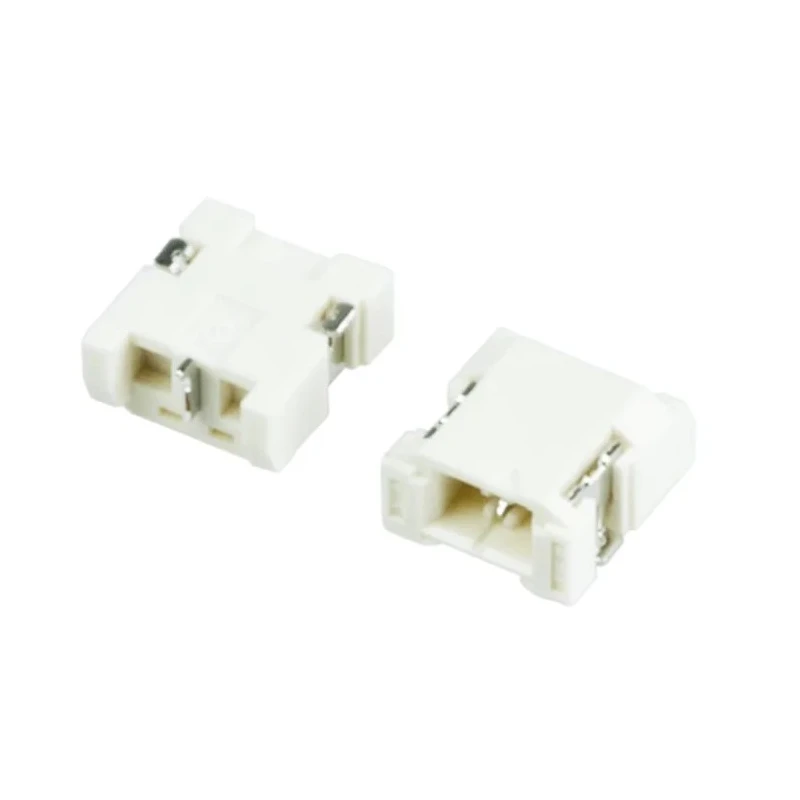

JST LEB Series Right Angle Surface PCB Socket, 1-Contact, 1 Row, 4 mm Pitch, 12A, 300V, Resin Housing 01R-LEBSS-TF(LF)(S)

Free Delivery in India | Lowest Global Shipping Charges

JST LEB Series Right Angle Surface PCB Socket, 1-Contact, 1 Row, 4 mm Pitch, 12A, 300V, Resin Housing 01R-LEBSS-TF(LF)(S)



Category PCB Socket Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	300V
Brand	JST
Orientation	Right Angle
Current	12A
Model	01R-LEBSS-TF(LF)(S)
Mount Type	Surface
Housing Material	Resin
Contact Material	Copper Alloy
Series	LEB
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	4mm
Contact Plating	Gold
Number of Contacts	1
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Designed for board-to-board connection with a right angle orientation.
Features a resin housing material ensuring robust durability.
Rated for 12A current capacity and 300V voltage operation.
Includes gold-plated copper alloy female contacts for excellent conductivity.
Operates reliably from -25°C to 85°C temperatures.
Low profile design with 2.7 mm PCB height suitable for LED lighting applications.
Secure polarising locking mechanism prevents incorrect insertion.
Fork type contacts accommodate thermal expansion and subtle misalignment.

Product Description

JST 01R-LEBSS-TF(LF)(S) is a high-quality right angle surface mount PCB Socket designed for board-to-board connections. With a 4 mm pitch and a single contact arranged in one row, this connector provides dependable electrical connectivity in electronic assemblies.

The connector features a resin housing and gold-plated copper alloy female contacts capable of handling a current of 12A at 300V. It is engineered for operating temperatures ranging from -25°C to 85°C, accommodating demanding industrial and commercial environments.

This JST LEB series connector has a low profile PCB height of 2.7 mm, optimized for compact LED lighting applications and space-constrained circuits. The fork type contact design ensures high contact pressure and a long mating stroke, which compensates for thermal expansion of PCBs and tolerates slight misalignment in the pitch direction, enhancing reliability.

The connector system incorporates a polarizing locking mechanism to prevent incorrect mating during installation, thus avoiding faulty connections. Its surface mount style simplifies soldering to the PCB for efficient manufacturing processes.

Manufactured in Japan, this JST LEB connector adheres to high standards of quality and reliability, making it well-suited for use in electronic components, power supplies, LED lighting, industrial controls, and other electronic equipment.

Designed for board-to-board connection with a right angle orientation. Features a resin housing material ensuring robust durability. Rated for 12A current capacity and 300V voltage operation. Includes gold-plated copper alloy female contacts for excellent conductivity.

Operates reliably from -25°C to 85°C temperatures. Low profile design with 2.7 mm PCB height suitable for LED lighting applications. Secure polarising locking mechanism prevents incorrect insertion. Fork type contacts accommodate thermal expansion and subtle misalignment.

Manufactured in Japan, ensuring high-quality compliance. Mount type is surface mount for easy PCB integration. Explore the complete range of JST connectors and components at EnvMart for your electronic assembly needs.
