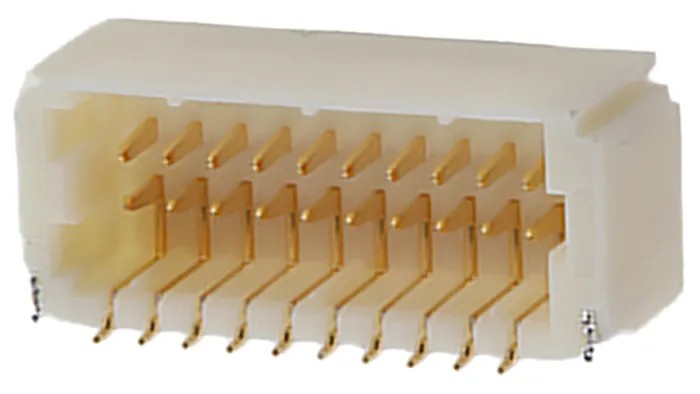

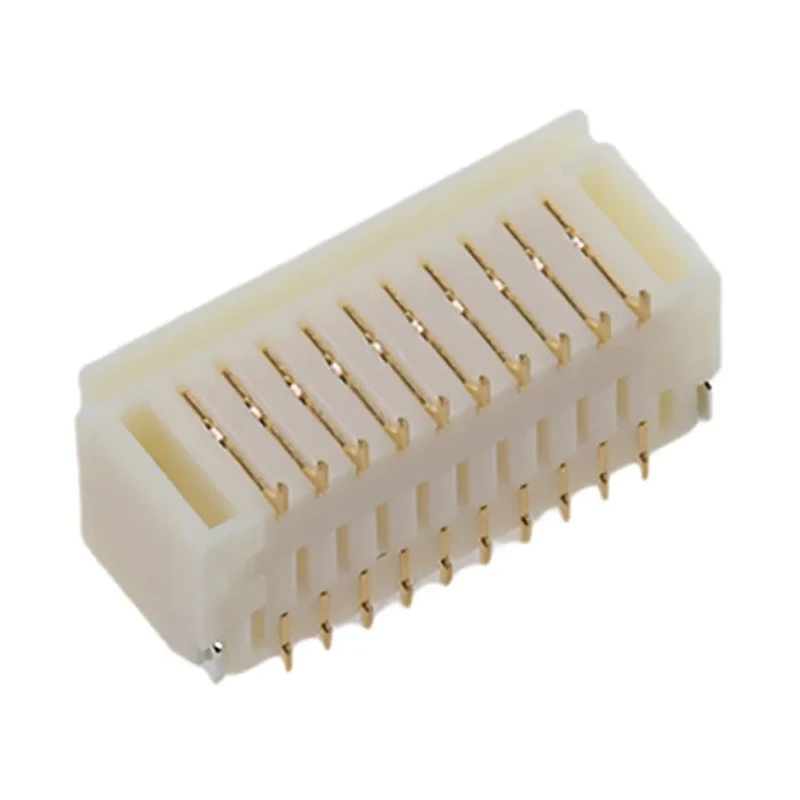

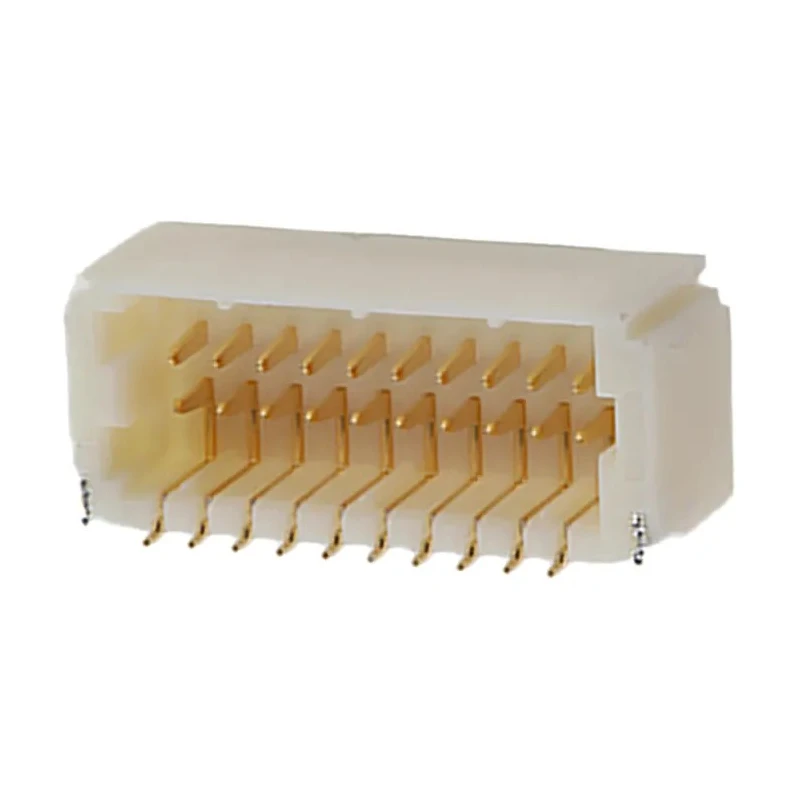

JST SHD Series Right Angle Surface PCB Header, 20 Contacts, 1 mm Pitch, 1 Row, Shrouded SM20B-SRDS-G-TF(LF)(SN)

JST SM20B-SRDS-G-TF(LF)(SN) is a high-quality SHD Series Right Angle Surface PCB Header engineered for compact and reliable wire-to-board connections in electronic assemblies. Featuring 20 male contacts arranged in a single row with a 1 mm pitch, this connector provides a robust and durable interface for various industrial and commercial electronic applications.

The right angle orientation facilitates efficient PCB layout and assembly, while the shrouded design ensures correct mating alignment, preventing connection errors and mechanical damage. The phosphor bronze contacts with gold plating deliver excellent electrical conductivity and long-lasting corrosion resistance, essential for maintaining signal integrity in demanding environments.

The housing material is polyamide, offering strong mechanical support and excellent resistance to heat and environmental factors. With an operating temperature range from -25°C to 85°C, this PCB header is suitable for a wide range of industrial, laboratory, and manufacturing scenarios.

This connector supports a voltage rating of 50V AC/DC and a current rating of 1A, making it ideal for low-power electronic circuits that require secure and efficient interconnects. It is designed for surface mount technology with solder termination for reliable PCB mounting.

The SHD series headers from JST are well-suited for use in industrial control systems, consumer electronics, communication devices, and other electronic equipment requiring compact, high-density PCB connectors with secure and precise mating features.

The connector has a right angle orientation for efficient PCB mounting. It incorporates a shrouded design to prevent incorrect insertion during mating. Contacts are made from phosphor bronze with a gold plating for optimal conductivity and corrosion resistance.

The housing is made of durable polyamide ensuring mechanical and thermal stability. Operates reliably within a temperature range of -25°C to 85°C. The header supports up to 50V AC/DC voltage and 1A current rating. Designed for surface mount technology (SMT) and solder termination.

Its compact size with 1.0 mm pitch supports high-density PCB applications. Explore more high-quality PCB Headers and connectors compatible with industrial and laboratory equipment on EnvMart.
