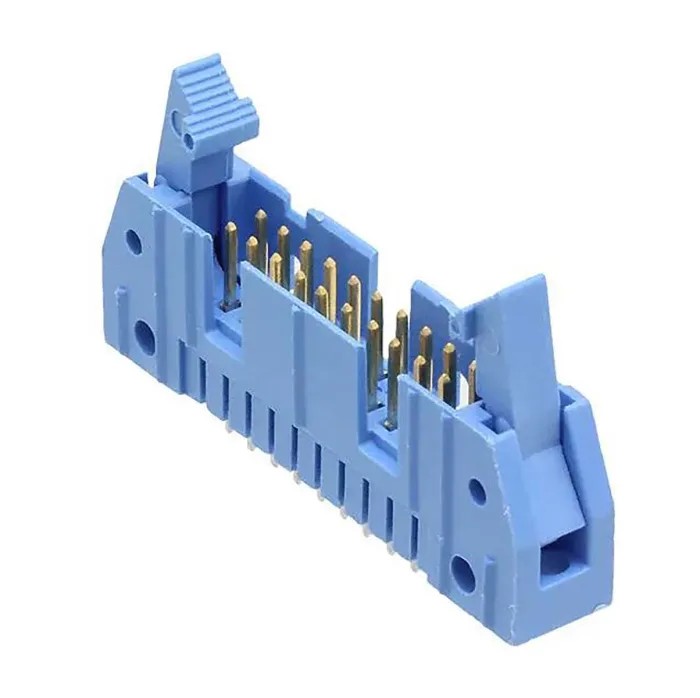

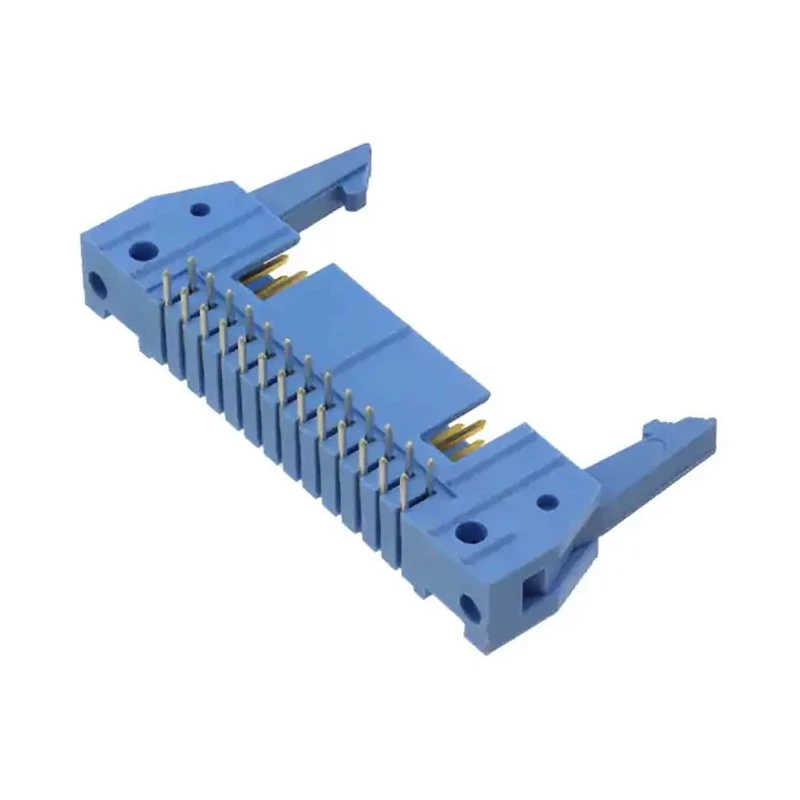

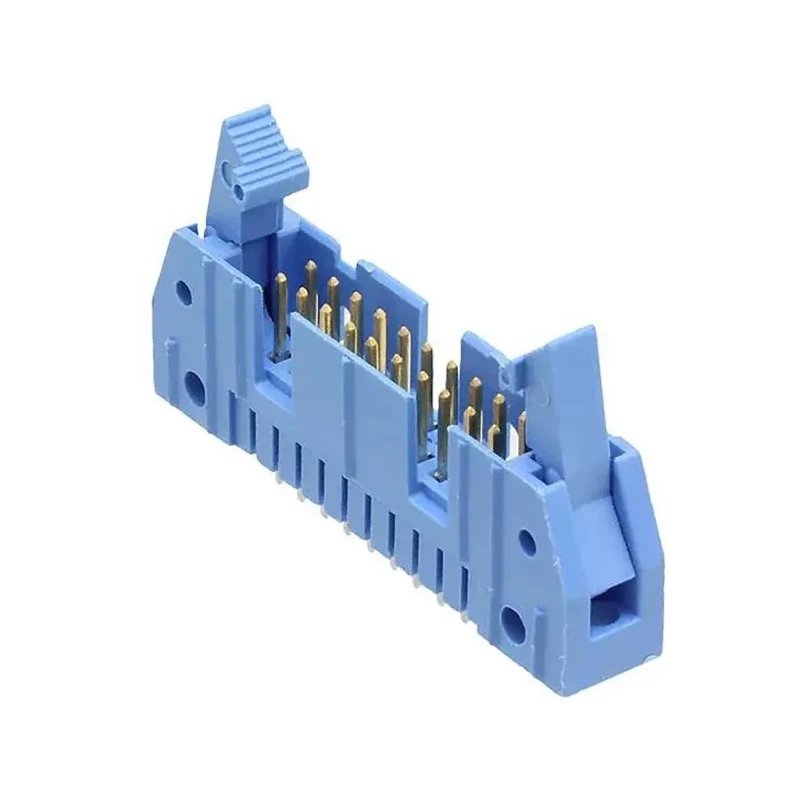

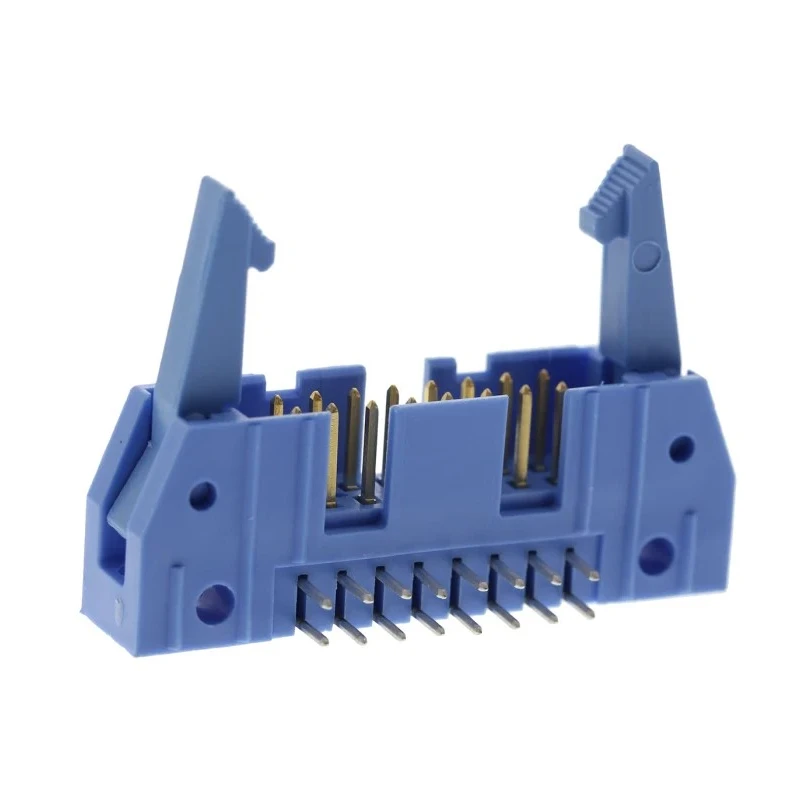

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header 16 Contacts 2.54 mm Pitch 2 Row Shrouded 2-5499141-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Features AMP-LATCH universal ejection style for easy secure mating and removal.
- Right angle orientation with through hole mount type suitable for PCB assemblies.
- Housing made of nylon ensuring durability and electrical insulation.
- Gold-plated brass contacts provide reliable electrical conductivity and corrosion resistance.
- Operates reliably between -65°C and 105°C operating temperatures.
- Supports a current rating of 1A and voltage rating of 250V.
- Ejector latches available in long and short styles for different strain relief requirements.
- Suitable for use in PCs, business equipment, medical equipment, storage, networking, and industrial controls.
Product Description
TE Connectivity 2-5499141-3 AMP-LATCH Series Right Angle Through Hole PCB Header features a 2.54 mm pitch with 16 contacts arranged in 2 rows, designed for secure and reliable wire-to-board connections.
This shrouded PCB header includes the AMP-LATCH universal ejection style, providing long and short ejector latch options to accommodate connectors with or without strain relief.
The housing made of durable nylon ensures electrical insulation and longevity, while the gold-plated brass contacts maintain high conductivity and resist corrosion over extended use.
Operating temperature ranges from -65°C to 105°C, making it suitable for various demanding industrial and electronic environments.
Its right angle orientation and through hole mount type facilitate efficient PCB assembly and usage in diverse applications such as personal computers, business and medical equipment, storage devices, networking hardware, industrial control systems, appliances, and electrical testing equipment.
Features AMP-LATCH universal ejection style for secure mating and easy removal. Right angle, 2 row configuration with 2.54 mm pitch spacing. Nylon housing for durability and insulation. Gold-plated brass contacts for optimal conductivity.
Temperature range from -65°C to 105°C. 1A current and 250V voltage rating. Through hole mounting enables solid PCB connection. Shrouded design protects contacts and aids polarization. This PCB Header is ideal for industrial, laboratory, electronics manufacturing, and commercial applications requiring reliable wire-to-board connections.
Explore more PCB connectors from top brands and find compatible accessories on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm.
It has a current rating of 1A and a voltage rating of 250V.
This connector operates reliably between -65°C and 105°C.
The housing is made of nylon, and the contacts are gold-plated brass.
This model features 16 contacts arranged in 2 rows.
It uses a through hole mount type for PCB assembly.
This PCB header is shrouded, which helps protect the contacts and aids in polarization.
The termination type for this connector is solder.
It supports a wire-to-board connector system.
The tail pin length is 2.79 mm.
It is suitable for use in PCs, business equipment, medical equipment, storage devices, networking hardware, and industrial controls.
Ejector latches are available in long and short styles to accommodate different strain relief requirements.
