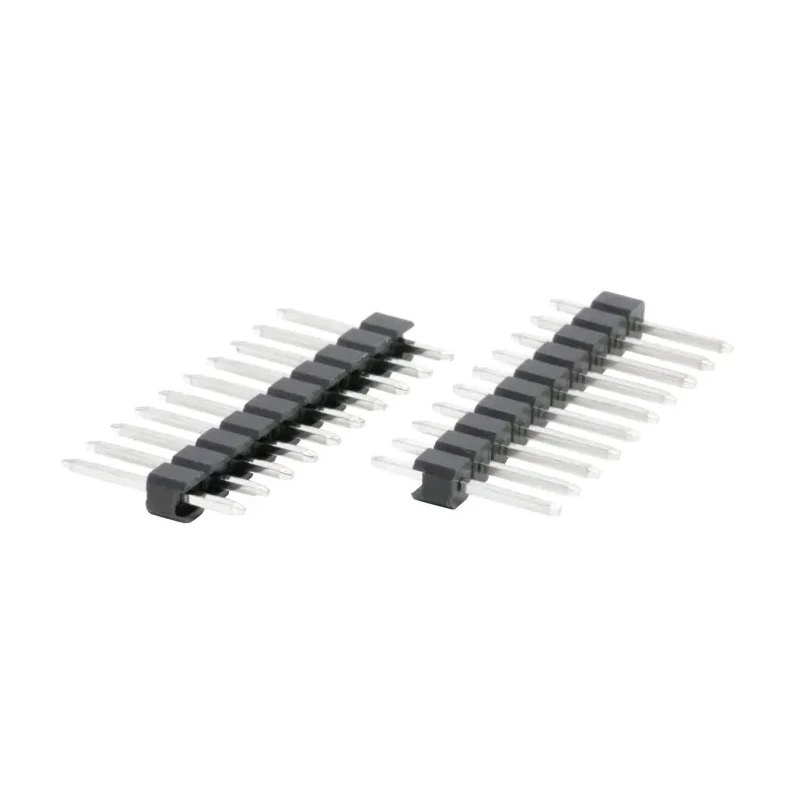

HARWIN M20 Series Straight Through Hole Pin Header 10 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9991046
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9991046 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Constructed with brass contacts plated in tin for reliable conductivity.
- Housing made of durable nylon suitable for solder termination.
- Supports up to 3A current capacity for typical electronic connector uses.
- Designed for through hole mounting with a straight orientation.
- Operates safely between -40°C to 105°C temperature range.
- Tail pin length of 3 mm and mating pin length of 6.1 mm for effective connections.
- Compatible with M20 series sockets and jumpers for flexible configurations.
- Manufactured in Taiwan ensuring quality and reliability.
Product Description
HARWIN M20-9991046 is a single row, straight through hole pin header designed for reliable board-to-board and wire-to-board connections. Featuring 10 male contacts with a 2.54 mm pitch and unshrouded housing, it provides versatile connectivity with robust brass contacts plated in tin to ensure excellent conductivity and corrosion resistance.
The connector's housing is made from high temperature nylon thermoplastic, engineered to withstand reflow soldering processes during PCB assembly. It supports a current rating of up to 3A and functions effectively within a temperature range of -40°C to 105°C, making it suitable for a wide range of industrial and electronic applications.
With a tail pin length of 3 mm and mating pin length of 6.1 mm, this connector ensures secure and stable electrical connections. The unshrouded design facilitates easy access during installation and maintenance, while the straightforward straight orientation simplifies PCB layout integration.
This pin header is compatible with the broader HARWIN M20 series, including sockets and jumpers, enabling flexible configuration options for embedded PCs, motherboards, consumer electronics, and industrial monitoring systems.
Constructed from brass contacts with tin plating for high conductivity. Nylon housing is heat resistant and reflow solder compatible. Rated for 3A current, suitable for typical PCB connector applications. Wide operating temperature range from -40°C to 105°C.
Designed for through hole mounting with straight orientation. Unshrouded for accessibility and ease of use. Compatible with the HARWIN M20 connector series. Produced in Taiwan, ensuring high manufacturing standards. Incorporates castellations to allow cutting to size where required.
Ideal for industrial, electronic component manufacturing, and embedded system applications. This product is listed under PCB Pin Header category on EnvMart, specializing in electronic components for professional industrial and laboratory use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of up to 3A, making it suitable for typical electronic connector applications.
It operates safely within a temperature range of -40°C to 105°C, allowing for use in various environments.
The contacts are made of brass and plated with tin for reliable conductivity, while the housing is constructed from durable nylon.
This pin header features 10 male contacts arranged in a single row with a 2.54 mm pitch.
It is designed for through hole mounting, providing a secure connection to the PCB.
The tail pin length is 3 mm, which aids in effective connections during installation.
Yes, it is compatible with the broader HARWIN M20 series, including sockets and jumpers, allowing for flexible configurations.
The mating pin length is 6.1 mm, ensuring a stable electrical connection.
This model features a straight orientation, which simplifies PCB layout integration.
It utilizes solder termination, making it suitable for various PCB assembly processes.
It is manufactured in Taiwan, ensuring adherence to quality standards.
It is ideal for board-to-board and wire-to-board connections in industrial and electronic component manufacturing.
