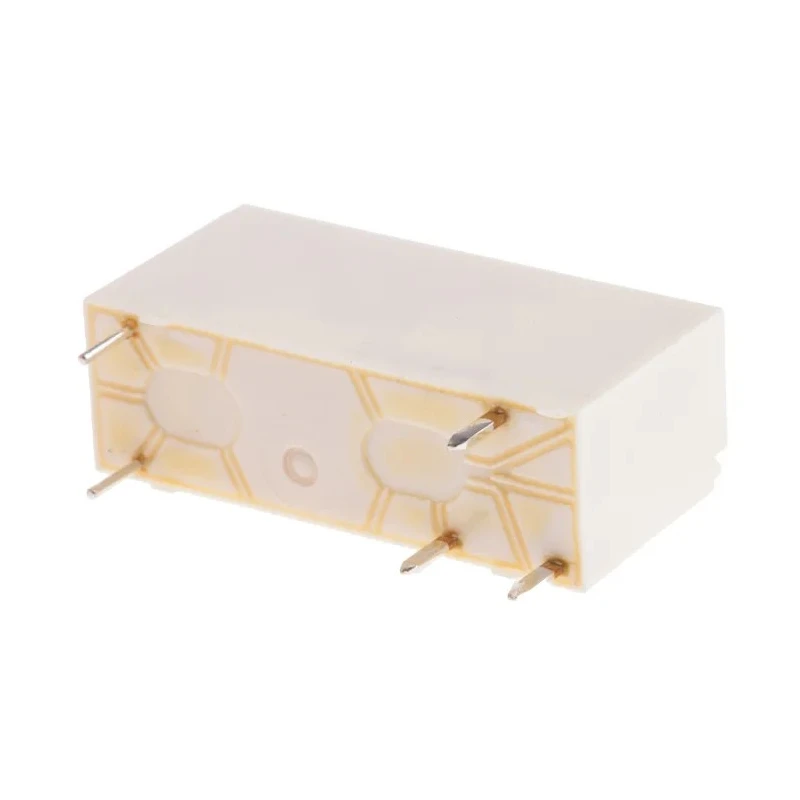

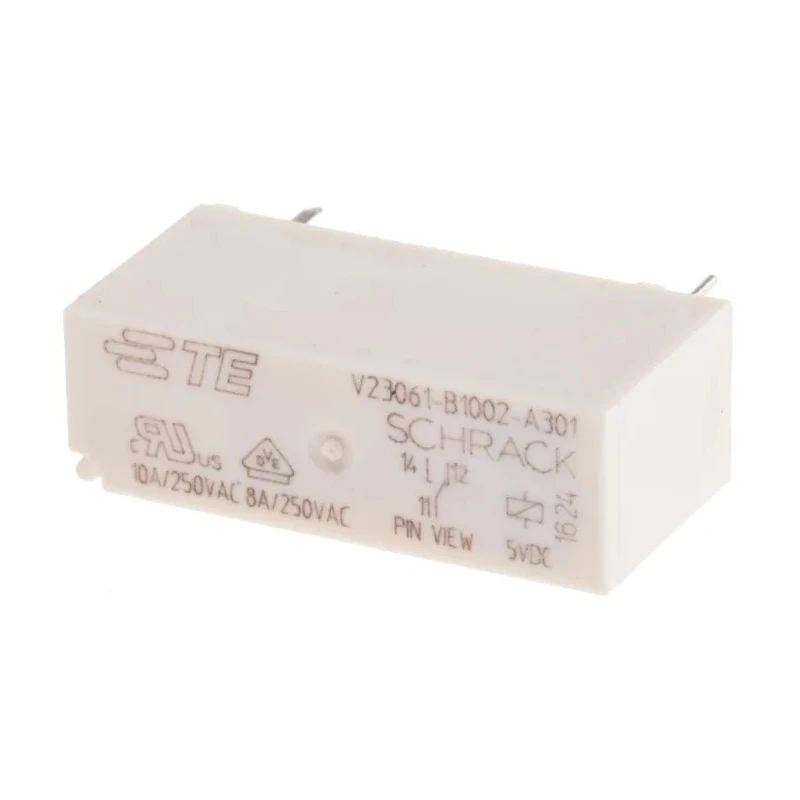

TE Connectivity MSR Series Miniature PCB Power Relay, 5V DC Coil Voltage, 8A Switching Current, SPDT Contact 7-1393222-2

TE Connectivity 7-1393222-2 is a MSR Series Miniature PCB Power Relay engineered for efficient power switching in electronic control and automation systems. With a 5V DC coil voltage and an 8A switching current, this SPDT relay combines compact size with robust performance making it ideal for circuit board integration.

The relay measures 15 mm in height, 10 mm in width, and 30 mm in length, designed as a through-hole mount component with solder terminals for secure attachment on printed circuit boards. Equipped with silver alloy AgSno contacts, it supports high inrush currents and provides extended operational life in demanding electrical environments.

Operating temperature range from -40°C up to +85°C enables reliable use in industrial, automation, and electronic applications exposed to varying temperature conditions. The coil resistance of 118Ω and coil power consumption of 220 mW optimize power usage while maintaining dependable switching functions.

The relay switches AC voltages up to 400V and switching power of 220 mW with industry-recognized safety and quality certifications including CSA, UL, and UR. Its white plastic enclosure is wash tight to protect sensitive internal parts during manufacturing and use.

Typical applications include use in industrial automation, power control modules, HVAC systems, instrumentation, and manufacturing equipment where precision and durability in switching are essential.

High inrush current capability with AgSno contacts for durability. Compact dimensions of 15 mm height, 10 mm width, and 30 mm length allow space-efficient PCB mounting. Designed for operating temperatures from -40°C to +85°C for versatile application environments.

Coil resistance is 118Ω with a coil power rating of 220 mW ensuring reliable actuation. Silver alloy contact material provides enhanced conductivity and longevity. Switching power rating of 220 mW and switching AC voltage up to 400V AC.

Mount type is through-hole PCB with solder terminal type for secure and stable installation. Standards approvals include CSA, UL, and UR ensuring industry compliance. Enclosed in a white plastic wash-tight housing enhancing protection and durability.
