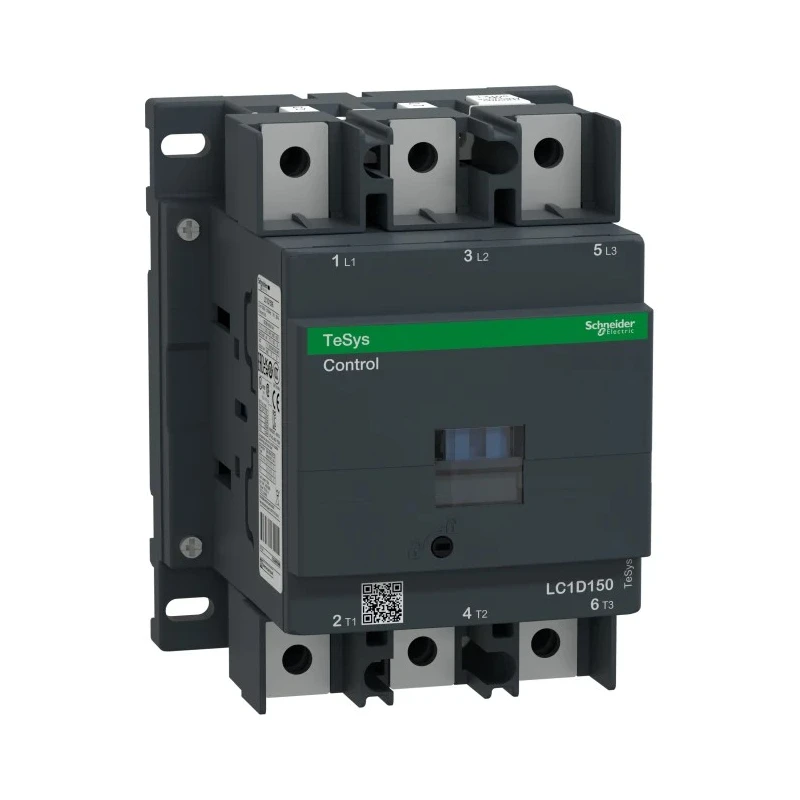

Schneider Electric LC1D TeSys D Contactor, 220V AC Coil, 3-Pole, 150A, 100kW, 3 NO Auxiliary Contacts, 1kV AC LC1D1506M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1506M7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 100kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 150A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 150A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 3-pole configuration for comprehensive power switching.
- Rated power capacity of 100kW supporting industrial motor operations.
- Built-in 3 normally open auxiliary contacts enhance control circuit versatility.
- Compact design with DIN rail mounting for easy installation in control panels.
- Operates reliably between -5°C to 60°C environmental temperatures.
- Constructed with durable lug ring terminal connections ensuring secure electrical contact.
- Certified to multiple standards including UL, CSA, IEC, CCC, and EAC for global compliance.
- Includes transient suppressor module for coil protection and longevity.
Product Description
Schneider Electric LC1D1506M7 is a high-performance TeSys D contactor optimized for motor control and resistive load applications. It features a 220V AC coil and 3-pole contactor design capable of handling loads up to 150A and a power rating of 100kW, suitable for industrial and commercial electrical control systems.
This contactor includes three normally open (3 NO) main contacts and two auxiliary contacts configured as 1 normally open and 1 normally closed, enhancing its usability in complex control circuits. The auxiliary contacts are mirror certified, ensuring reliable operation.
Designed for versatility, the LC1D1506M7 supports mounting on DIN rails or via screw fixing, providing flexible installation options in various electrical panels. Its compact dimensions (120mm width, 158mm length, and 136mm depth) optimize space usage.
The device operates efficiently within a temperature range from -5°C to 60°C and supports operating rates up to 1200 cycles/hour, underlining its durability in demanding industrial environments. The lug ring screw terminals assure secure and safe electrical connections for both load and auxiliary contacts.
Engineered with compliance to international standards including UL, CSA, IEC, CCC, EAC, and Marine certifications, this contactor meets diverse regulatory requirements. Additionally, it is RoHS and REACh compliant, affirming its environmental friendliness as a Green Premium product.
Common applications include motor starters for squirrel cage motors, lifts, escalators, conveyors, compressors, pumps, mixers, and air conditioning units. It supports AC-1 and AC-3 utilization categories, suitable for both resistive and motor load control.
Its robust construction and comprehensive accessory compatibility make the Schneider Electric LC1D1506M7 an ideal choice for industrial automation, manufacturing, HVAC systems, and water treatment applications.
Explore more from Schneider Electric and other reliable contactors and auxiliary components in the Electronics & Electricals section at EnvMart for your industrial automation needs.
Equipped with a 3-pole configuration for comprehensive power switching. Rated power capacity of 100kW supporting industrial motor operations. Built-in 3 normally open auxiliary contacts enhance control circuit versatility.
Compact design with DIN rail mounting for easy installation in control panels. Operates reliably between -5°C to 60°C environmental temperatures. Constructed with durable lug ring terminal connections ensuring secure electrical contact.
Certified to multiple standards including UL, CSA, IEC, CCC, and EAC for global compliance. Includes transient suppressor module for coil protection and longevity. Choose EnvMart for high-quality industrial electrical components such as Contactors, relays, and automation gear, all from leading brands like Schneider Electric.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D1506M7 contactor has a power rating of 100kW, making it suitable for industrial motor operations.
This model can handle a maximum current of 150A, which is suitable for various industrial applications.
It operates reliably within a temperature range of -5°C to 60°C, allowing for use in diverse environments.
The contactor features a 3-pole configuration, which is essential for comprehensive power switching.
It includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), enhancing its control circuit versatility.
The dimensions of this model are 120mm in width, 158mm in length, and 136mm in depth, making it compact for installation.
The LC1D1506M7 operates with a coil voltage of 220V AC, suitable for various electrical control systems.
This unit can be mounted on DIN rails or via screw fixing, providing flexibility for installation in different electrical panels.
It is certified to multiple standards including UL, CSA, IEC, CCC, and EAC, ensuring global compliance for various applications.
This contactor is designed for motor control and resistive load applications, making it versatile for various industrial uses.
It features lug ring screw terminals that provide secure and safe electrical connections for both load and auxiliary contacts.
The operational current rating for the LC1D1506M7 is 150A, suitable for demanding industrial environments.
