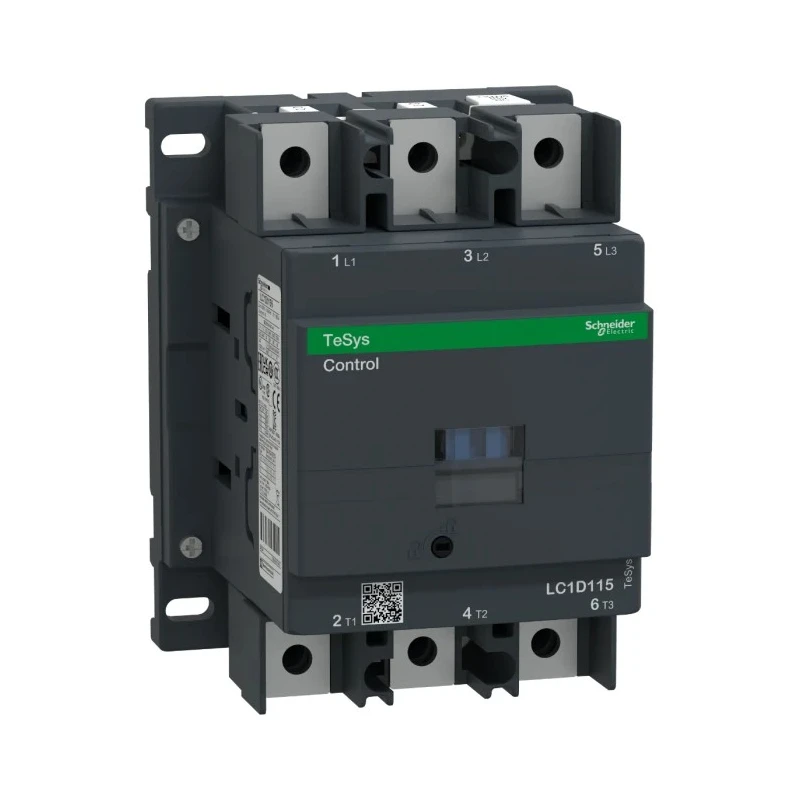

Schneider Electric LC1D Contactor, 24V dc Coil, 3-Pole, 115A, 30kW Power Rating, 1kV AC Contact Voltage LC1D1156BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1156BD |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 200A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features a 1kV AC contact voltage rating and a 30kW power rating.
- It includes one normally open and one normally closed auxiliary contact.
- Designed for mounting on DIN rails with lug ring terminals for easy installation.
- Operates reliably in temperatures ranging from -40°C to 60°C with operational current rating up to 200A.
- Complies with IEC 61095 and various international certifications ensuring high quality and performance.
- Suitable for use in motor control, lifts, escalators, conveyors, compressors, and other industrial applications.
- Equipped with a transient suppressor module for coil protection.
- Supported utilization categories include AC-1 and AC-3 for various load types.
Product Description
Schneider Electric LC1D1156BD contactor, featuring a 24V dc coil, 3-pole configuration, and contact current rating of 115A with a power rating of 30kW, is designed for motor control and resistive load applications. It operates at up to 1kV AC contact voltage and can handle operational currents up to 200A. The contactor is built to provide reliable performance for motor starters, lifts, escalators, conveyors, compressors, pumps, mixers, and air conditioning units in industrial and commercial environments.
This device includes one normally open (NO) and one normally closed (NC) auxiliary contact, with the NC contact being mirror certified for safety and compliance. The lug ring screw terminals facilitate secure power and control connections, supporting operating rates up to 1200 cycles per hour.
The contactor is compact yet robust, measuring 158mm in length, 120mm in width, and 136mm in depth, with a weight of approximately 2.5 kg (estimate based on similar devices). It is suitable for installation using DIN rail mounting methods or screw fixing, adaptable to various industrial setups.
Designed for harsh environments, it withstands a temperature range from -40°C to a maximum of 60°C, making it ideal for high reliability and durability in tough conditions. Its multi-standard certifications include IEC 61095, UL, CSA, CCC, EAC, and Marine standards, ensuring compliance with international quality and safety regulations. The product is RoHS/REACh Green Premium compliant, underscoring its environmentally friendly attributes.
The contactor supports motor control applications up to 115A and 30 kW power rating. Utilization categories AC-1 and AC-3 suit various resistive and motor load scenarios. Compact size for ease of installation in control panels.
Equipped with a transient suppressor module for coil protection. Suitable for industrial automation, manufacturing, HVAC, and water treatment plants.
Set includes one Schneider Electric LC1D1156BD contactor with 3 NO poles and built-in auxiliary contacts. This product is essential for industrial automation and control gear applications demanding high reliability and performance.
Explore more from Schneider Electric Contactors and automation equipment in EnvMart’s Electrical, Automation & Control Gear category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D1156BD contactor has a power rating of 30kW.
This contactor operates at a maximum contact voltage of 1kV AC.
The operational current rating of this model is up to 200A.
It can operate in temperatures ranging from -40°C to 60°C.
This contactor features a 3-pole configuration.
The LC1D1156BD includes one normally open (NO) and one normally closed (NC) auxiliary contact.
It is designed for DIN rail mounting, allowing for easy installation.
The estimated weight of this model is approximately 2.5 kg.
This contactor complies with IEC 61095 and various international certifications.
It is suitable for motor control, lifts, escalators, conveyors, compressors, and other industrial applications.
The coil voltage for the LC1D1156BD is 24V DC.
It supports utilization categories AC-1 and AC-3 for various resistive and motor load scenarios.
