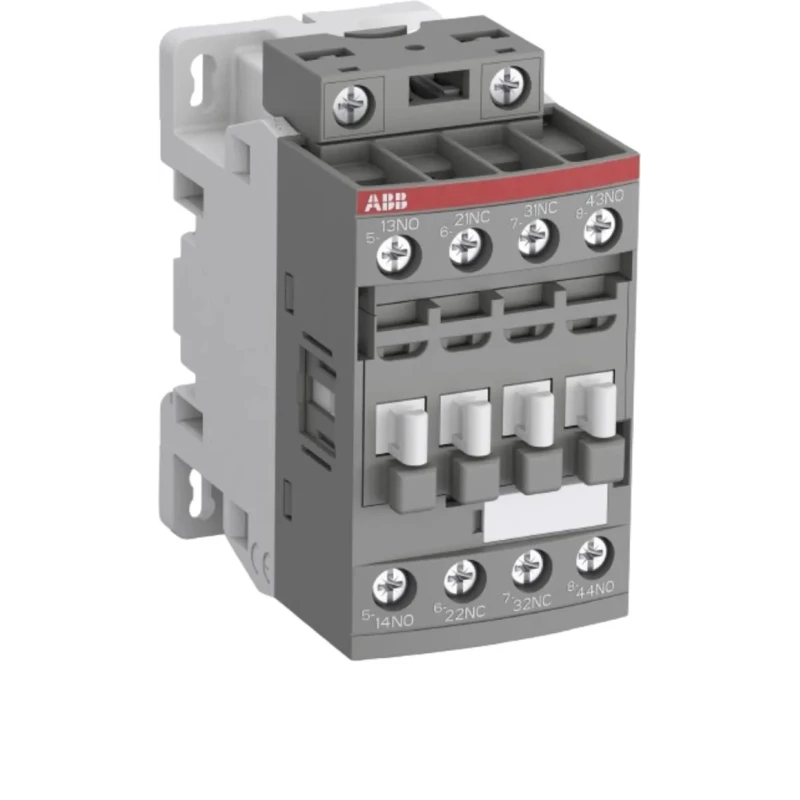

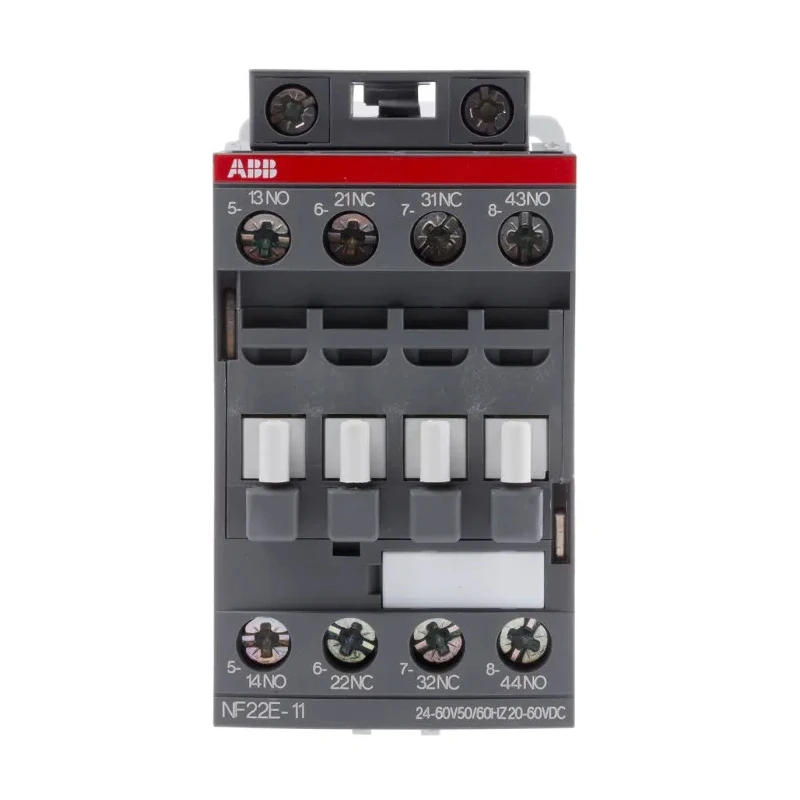

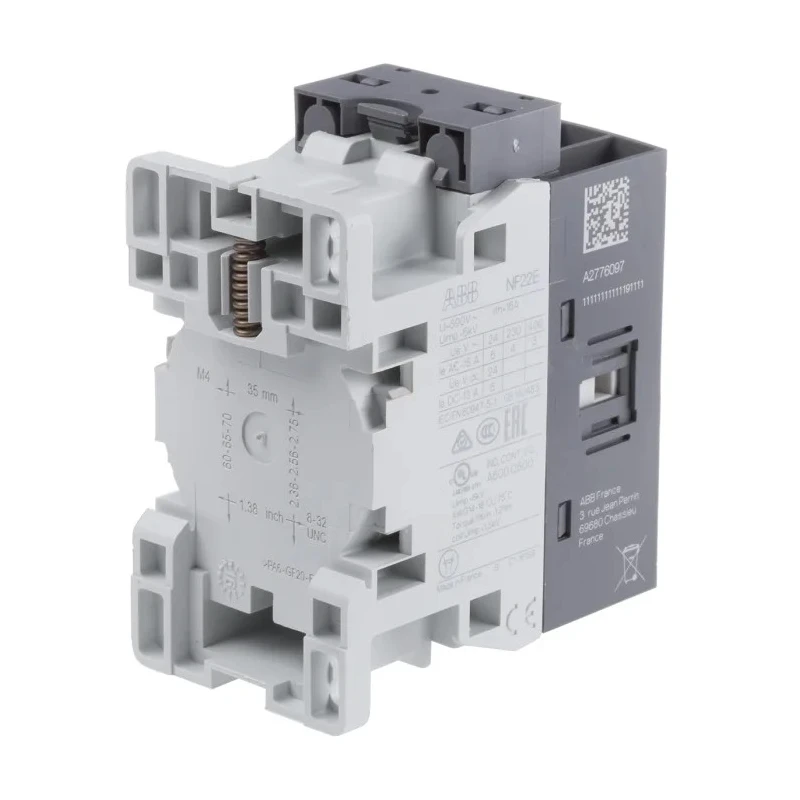

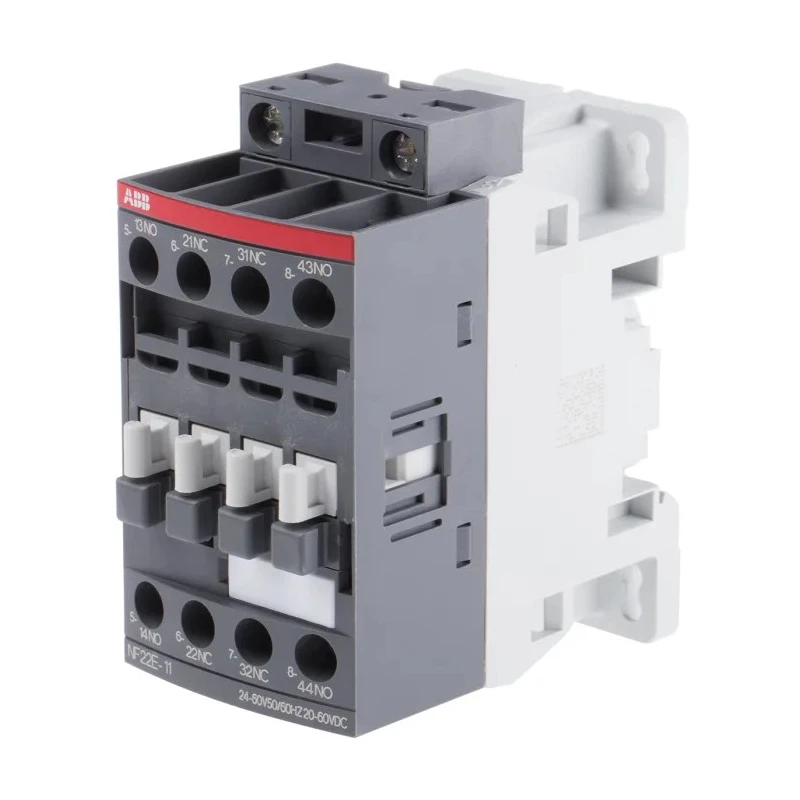

ABB NF Series 4-Pole Motor Control Contactor, 6 A, 24V AC/DC Coil, 2 NO/2 NC Auxiliary Contacts 1SBH137001R1122 NF22E-11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Motor Control |
| Length | 77mm |
| Model | 1SBH137001R1122 NF22E-11 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | NF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC, RoHS, UL, CCC, CSA, EAC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 6A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
| N22E 24V 50/6HZBrand | ABB |
Key Features
- Compact DIN rail mount design measuring 77mm x 45mm x 77mm.
- Screw terminal type simplifies installation and wiring.
- Designed for motor control applications with a contact voltage rating up to 690V AC.
- Includes mechanically linked auxiliary contacts to ensure operational safety.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Built-in surge protection enhances product durability and performance.
- Auxiliary contact blocks can be added to expand control and monitoring capabilities.
- Compliant with IEC, RoHS, UL, CCC, CSA, and EAC standards for global industrial use.
Product Description
ABB 1SBH137001R1122 NF22E-11 contactor is a 4-pole device designed for motor control and auxiliary circuits in industrial automation systems. It features a 24V AC/DC coil voltage and supports a contact current of 6A at 690V AC, suitable for a range of industrial switching applications.
The compact design allows DIN rail mounting with physical dimensions of 77mm length, 45mm width, and 77mm depth. The screw-type terminals facilitate easy and secure electrical connections.
Mechanical linkage of the auxiliary contacts ensures safety during operation. The contactor includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, with the ability to add auxiliary contact blocks for enhanced control.
It operates reliably within temperatures from -40°C to 70°C and incorporates built-in surge protection, improving longevity and robustness in challenging industrial environments. Widely applied in HVAC systems to control compressors, large fans, and chillers, this contactor is built to meet rigorous IEC, RoHS, UL, CCC, CSA, and EAC standards.
Compact 4-pole contactor for efficient motor control applications. 24V AC/DC coil voltage compatible with common control voltages. 690V AC rated contact voltage and 6A current capacity for versatile use. Mechanically linked 2 NO and 2 NC auxiliary contacts for safer switching.
Durable screw terminal design for ease of wiring and maintenance. Wide operating temperature range from -40°C to +70°C. Built-in surge protection ensures reliability under fluctuating power conditions. Suitable for industrial automation and HVAC control systems.
Explore more Contactors and automation control gear within EnvMart’s extensive industrial electrical components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 690V AC, making it suitable for various industrial switching applications.
This contactor operates with a coil voltage of 24V AC/DC, compatible with common control voltages.
The dimensions of this contactor are 77mm in length, 45mm in width, and 77mm in depth, allowing for compact installation.
It includes 4 auxiliary contacts, configured as 2 normally open (NO) and 2 normally closed (NC).
The operational current capacity of this model is 6A, suitable for motor control applications.
This model operates reliably within a temperature range of -40°C to 70°C, suitable for various industrial environments.
It features screw-type terminals, which simplify installation and wiring.
Yes, it is compliant with IEC, RoHS, UL, CCC, CSA, and EAC standards for global industrial use.
This contactor is designed for DIN rail mounting, which facilitates easy installation in electrical panels.
Yes, auxiliary contact blocks can be added to expand control and monitoring capabilities.
The primary function of this contactor is motor control, making it suitable for various industrial automation applications.
This contactor belongs to the NF series, which is designed specifically for motor control applications.
