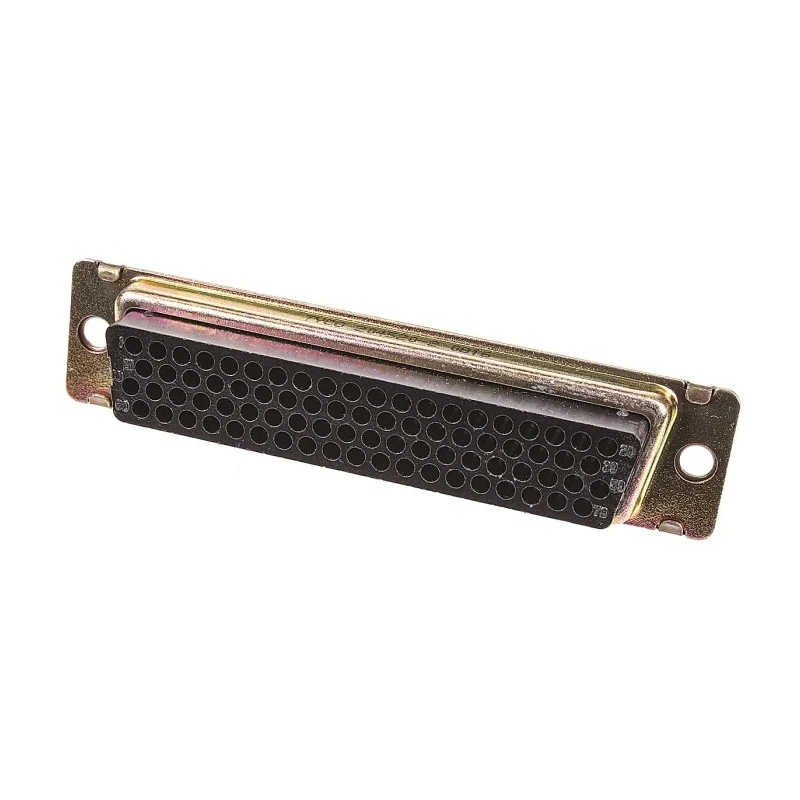

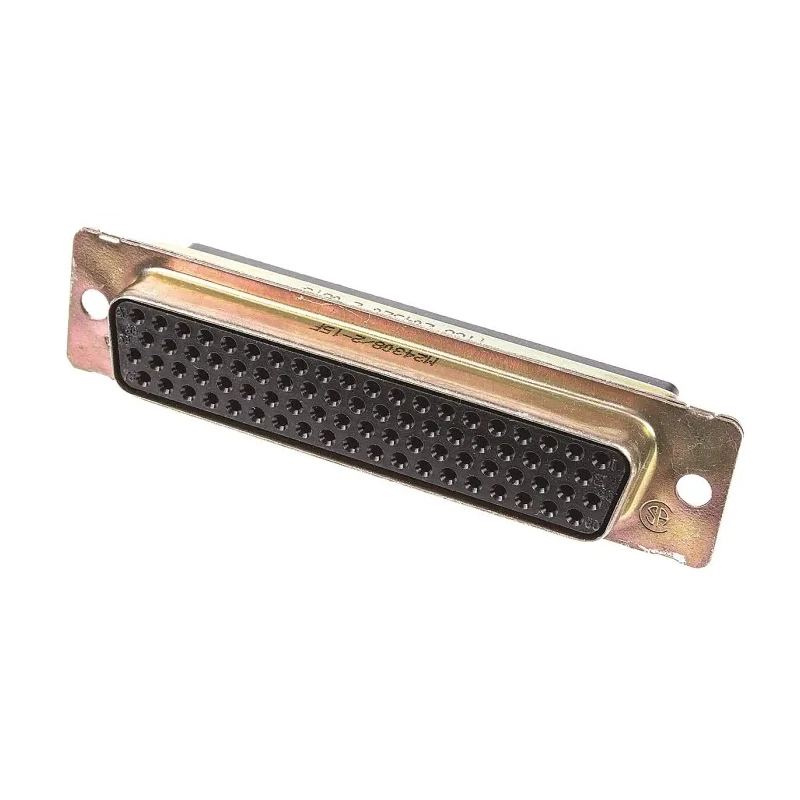

TE Connectivity Amplimite 90 Series 78 Way Straight Cable D-Sub Connector Female 5A 204508-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Model | 204508-1 |
| Mount Type | Cable |
| Housing Material | Steel |
| Series | AMPLIMITE 90 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 78 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 22 |
| D-Sub Shell Size | DS-3 |
Key Features
- Includes 78 contacts with size 22 contacts for high-density cable connections.
- Features a straight orientation and cable mount type for ease of integration.
- Constructed with steel housing material and cadmium plated shell for robustness.
- Operates reliably between -55°C and 125°C temperature range.
- Termination type is crimp ensuring secure and stable connections.
- Designed to MIL-C-24308 military specification guaranteeing compatibility and durability.
- The female connector gender and series 90 design support various industrial and military applications.
- Connector shell size specified as DS-3 for precise fitting.
Product Description
TE Connectivity 204508-1 Amplimite 90 Series 78 Way Straight Cable D-Sub Connector Female offers a rugged, high-density cable mounting solution conforming to MIL-C-24308 military specifications. This connector is ideal for demanding environments including military equipment, ground support devices, computer peripheral equipment, modems, and industrial instrumentation.
Constructed with cadmium plated steel shell for enhanced corrosion resistance and durability, the connector's steel housing material suits harsh operational conditions ranging from -55°C to 125°C. The 78 contacts of size 22 support 5A current and are designed for crimp termination methods to ensure reliable electrical connections.
The straight orientation and cable mount type facilitate ease of assembly in various cable harnesses. While the connector does not hold formal approvals, its compliance with military standards provides assurance of performance and compatibility within certified systems.
This series 90 Amplimite D-Sub connector mates with any other connector having the same insert arrangement and provides a reliable connection in industrial and military contexts. The DS-3 shell size ensures proper mechanical integration into designated equipment.
Includes high-density 78 size 22 contacts optimized for military and industrial applications. Robust crimp termination suitable for reliable connectivity. Capable of operating in extreme temperature environments from -55°C to 125°C.
Steel housing and cadmium plated shell ensure durability and corrosion resistance. Adheres to MIL-C-24308 military specification for quality and reliability. Compatible with matching series 90 connectors for versatile system design.
Designed for cable mounting with female connector gender.
This product is ideally suited for applications in military, industrial instrumentation, aerospace, and other high-reliability contexts where quality environmental and electrical performance are critical. It supports enhanced production efficiency by being packaged ready for machinery insertion and integration.
Explore more in the D-Sub Connector category for compatible cable connectors and accessories from trusted brands like TE Connectivity at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 125°C.
This model has a current rating of 5A.
The 204508-1 connector features 78 contacts.
It uses crimp termination to ensure secure and stable connections.
The connector has a shell size specified as DS-3.
The connector is constructed with a steel housing material and features a cadmium plated shell for enhanced corrosion resistance.
It has a straight orientation and is designed for cable mounting.
Yes, it is designed to MIL-C-24308 military specifications, ensuring compatibility and durability in demanding environments.
The minimum operating temperature for this connector is -55°C.
This connector is suitable for military, industrial instrumentation, aerospace, and other high-reliability contexts.
The contact size for this model is 22.
The connector gender is female, designed for female connections in cable assemblies.
