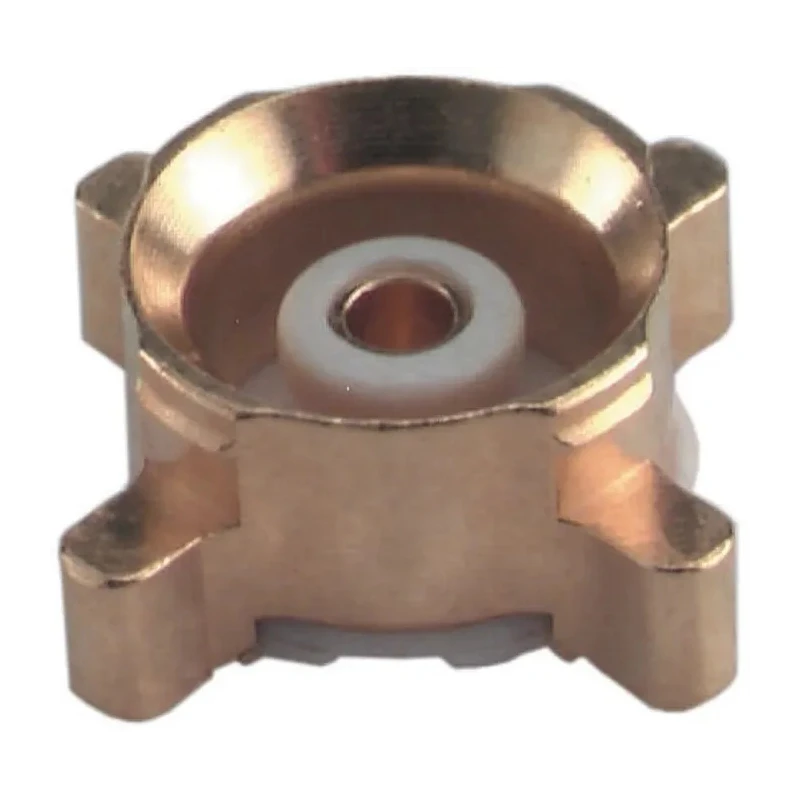

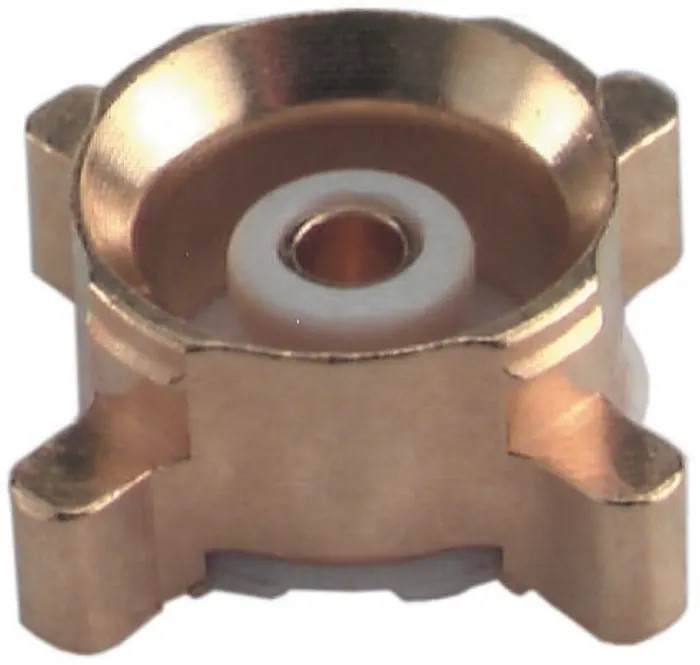

Huber+Suhner MMBX Series Coaxial Connector Surface Mount Male, 50 Ω, Straight Body, Solder Termination 82_MMBX-S50-0-1/111_NE
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Huber+Suhner |
| Orientation | Straight |
| Model | 82_MMBX-S50-0-1/111_NE |
| Mount Type | Surface |
| Operating Frequency | 12.4GHz |
| Contact Material | Brass |
| Series | MMBX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MMBX |
| Body Plating | Gold |
Key Features
- The connector supports an operating frequency up to 12.4 GHz.
- It is designed for surface mount applications in PCB assemblies.
- The body and contact plating are gold for optimal conductivity and corrosion resistance.
- The connector compensates for mechanical misalignment in axial and radial directions.
- Suitable for use in complex radio module stack-ups and board-to-board connections.
- Operating temperature ranges from -55°C to 155°C for versatile environmental use.
- It provides excellent RF performance with typical power handling of 260W at 2.4 GHz at room temperature.
- The product is blind mateable and designed for no mechanical stress on solder joints.
Product Description
Huber+Suhner 82_MMBX-S50-0-1/111_NE MMBX Series Coaxial Connector is a high-performance surface mount male coaxial connector with 50 Ω impedance and a straight body design. It features solder termination for reliable electrical and mechanical connection in PCB assemblies.
This connector supports frequencies up to 12.4 GHz and operates under a temperature range of -55°C to 155°C, making it suitable for a wide range of industrial and communication applications. The gold-plated body and contacts ensure excellent conductivity and corrosion resistance, enhancing signal integrity and connector longevity.
The MMBX series connectors compensate for mechanical misalignment in both axial and radial directions, enabling easy installation and blind mating without imposing mechanical stress on solder joints or connector parts. This feature is vital for board-to-board connections and multi-layer radio module applications.
Typical power handling is approximately 260W at 2.4 GHz at room temperature, supporting robust RF performance for modern cellular technologies such as GSM, WCDMA, UMTS, and beyond. The connector's modular design enables space saving and standardization across diverse cellular system designs.
The connector is tailored for surface mount PCB applications with a standard size and no bulkhead. Contact material is brass with gold plating for durability and reliable electrical engagement. No specific MIL-STD approvals are included; however, it meets stringent industry requirements.
The product is ideal for industrial, telecommunications, and electronic manufacturing environments.
The comprehensive design and engineering of the Huber+Suhner MMBX series make it an excellent choice for advanced RF and microwave applications, ensuring reliable connectivity and performance in demanding conditions.
Explore more products in the Coaxial Connector category on EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports an operating frequency of up to 12.4 GHz, making it suitable for high-frequency applications.
This model has an impedance of 50 Ω, which is standard for many RF applications.
It operates within a temperature range of -55°C to 155°C, allowing for versatile use in various environments.
The connector features a solder termination type, ensuring reliable electrical and mechanical connections in PCB assemblies.
The contact material is brass, and both the body and contact plating are gold, enhancing conductivity and corrosion resistance.
It compensates for mechanical misalignment in both axial and radial directions, facilitating easy installation and blind mating.
The typical power handling is approximately 260W at 2.4 GHz at room temperature, supporting robust RF performance.
This connector features a straight body orientation, which is standard for many applications.
It is designed for surface mount applications, making it suitable for PCB assemblies.
The connector has a male gender, both for the contact and the connector itself.
The country of origin for this connector is India.
This model is part of the MMBX series of coaxial connectors, designed for high-performance applications.
