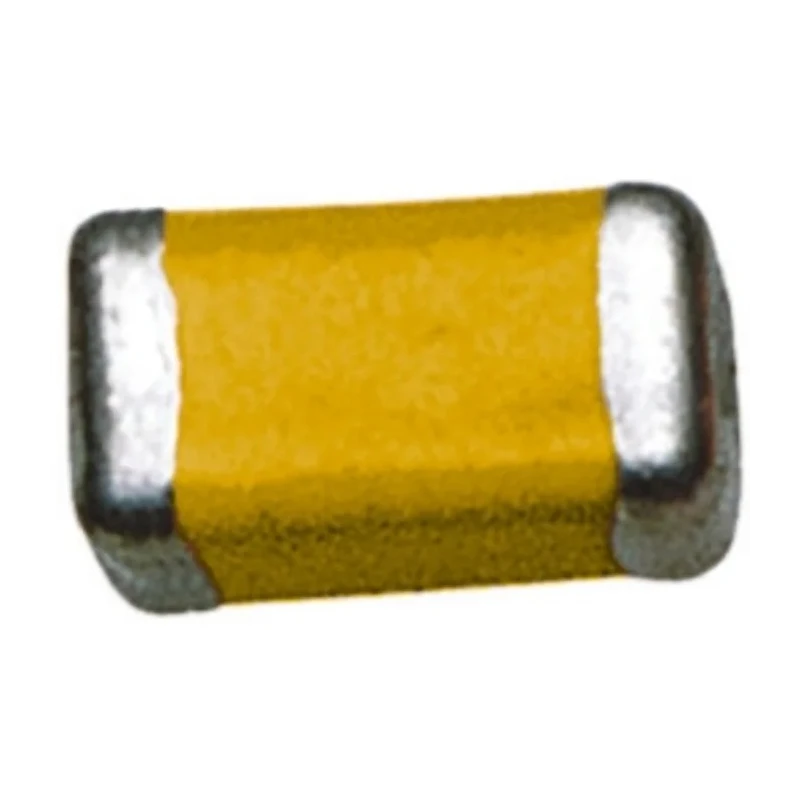

TDK 100 pF Multilayer Ceramic Capacitor 3kV dc ±10% Tolerance Surface Mount 1808 Package C4520C0G3F101K200KA

TDK C4520C0G3F101K200KA is a 100 pF multilayer ceramic capacitor designed for high voltage applications up to 3kV DC. With a precision ±10% tolerance and high-quality C0G dielectric, this surface mount component ensures excellent stability, low loss, and reliable performance in electronic circuits.

The capacitor is packaged in a standard 1808 surface mount case with dimensions 4.5mm (length) x 2mm (width) x 2mm (height), making it suitable for compact PCB layouts and automated assembly processes. It operates effectively over a wide temperature range from -55°C to 125°C, permitting use in industrial and commercial environments with varying thermal conditions.

This component is supplied in tape and reel packaging, supporting efficient high-volume manufacturing and soldering process automation. The C-type series capacitor offers high voltage handling with surface mount termination types, contributing to robust and compact circuit designs.

Typical applications for the TDK C4520C0G3F101K200KA multilayer ceramic capacitor include electronic equipment requiring stable high-voltage capacitance, power supply filtering, signal coupling, and noise suppression in industrial electronics, laboratory instruments, and telecommunications systems.

The capacitor series does not conform to automotive standards but finds extensive use in manufacturing, repair and maintenance of electronic devices where high dielectric reliability and precision capacitance are critical.

Provides stable capacitance of 100 pF for precision electronic circuits. Rated for a high voltage of 3kV DC, suitable for demanding applications. Features reliable C0G dielectric for low loss and temperature stability. Designed with 1808 package size measuring 4.5mm length and 2mm width and height.

Surface mount termination ensures easy PCB mounting and automated placement. Operates in temperature range from -55°C to 125°C for harsh environments. Comes in tape and reel packaging, facilitating high-volume manufacturing.

Series C type component ideal for high voltage multilayer ceramic capacitor applications. Non-automotive compliant component designed for industrial and commercial electronics. Explore more high-quality Multilayer Ceramic Capacitors and electronic components at EnvMart for industrial, laboratory, and manufacturing applications.
