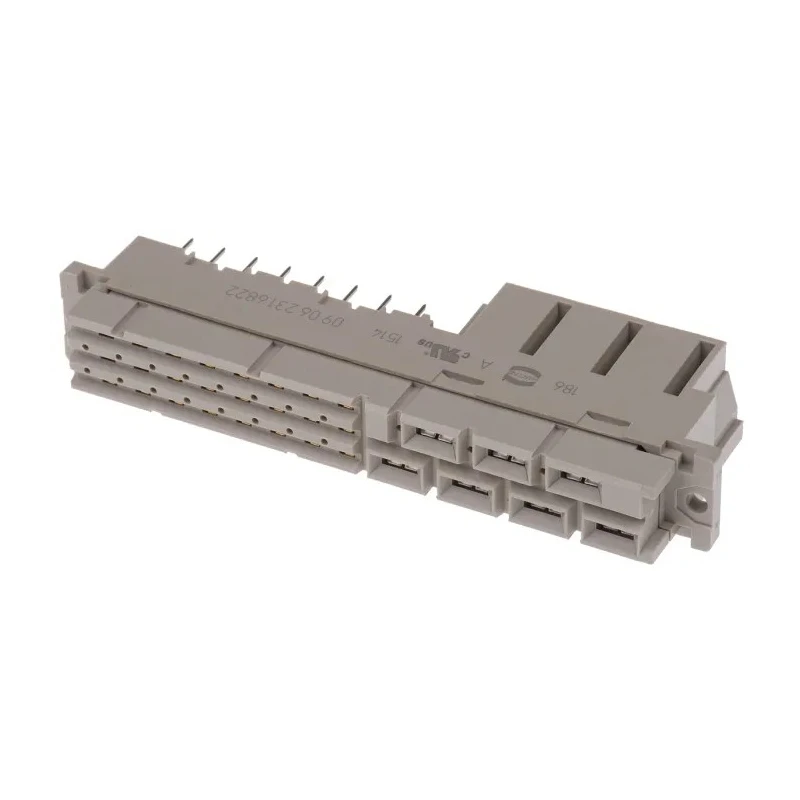

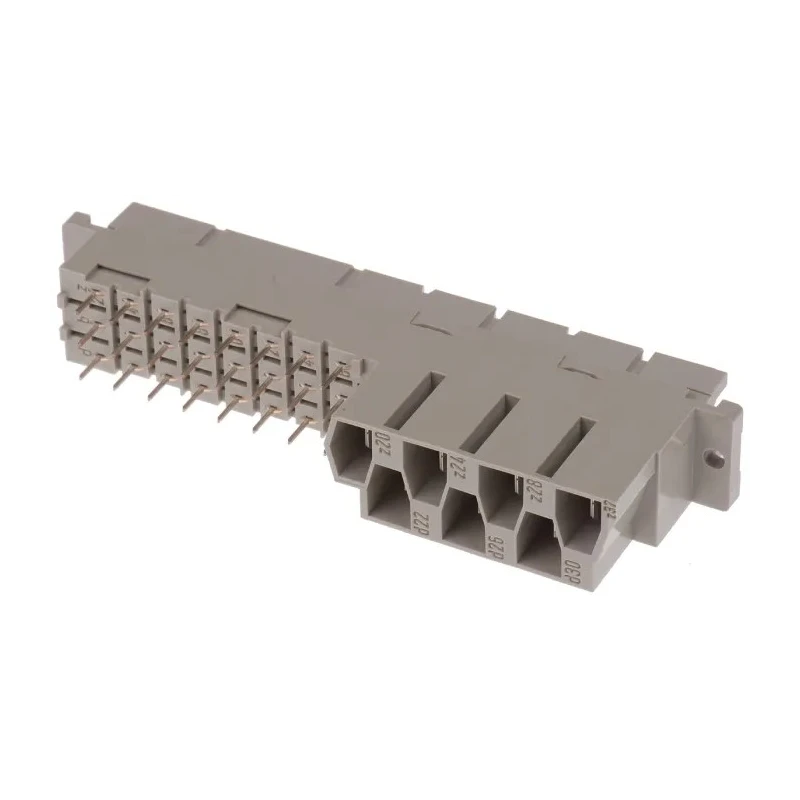

HARTING DIN 41612 Connector 31 Contacts, 3 Row, Female Straight, 500 V ac, Silver Plating, Class C2 09062316822

HARTING 09062316822 DIN 41612 Connector is engineered as a high-quality female connector with 31 contacts arranged in 3 rows, supporting voltages up to 500 V AC. This connector belongs to the Class C2 series and employs solder termination, meeting demanding industrial and electronic requirements.

The contacts are constructed from copper alloy with silver plating for excellent electrical conductivity and enhanced durability. The thermoplastic housing offers robustness and long service life, while the straight orientation facilitates easy integration into backplane and rack connector systems.

With a temperature operating range from -55°C to 125°C, this connector is well-suited for industrial, automation, railway transportation, and power supply applications. The connector’s row loading (D, B, Z) allows for mixed power handling with 6A current rating per contact.

Low maximum contact resistance of 8 milliohms ensures effective and reliable signal and power transmission. The product is manufactured in Germany, reflecting adherence to stringent quality controls and superior craftsmanship.

This connector features silver-plated copper alloy contacts for optimal conductivity and corrosion resistance. Class C2 designation ensures compliance with solder termination standards and reliability. Thermoplastic housing provides durable insulation and mechanical strength.

Operation temperature ranges from -55°C to 125°C, suitable for harsh environments. Termination via solder type designed for secure electrical connections. The 3-row layout corresponds to row loading D, B, and Z for mixed power configurations.

Maximum contact resistance is low at 8 milliohms ensuring efficient signal transmission. Manufactured in Germany, assuring high-quality standards and precise engineering.

This HARTING DIN 41612 Connector is ideal for industrial automation, electronic controls, power supply units (PSUs), railway systems, and other commercial applications requiring dependable high-current and signal connections.
