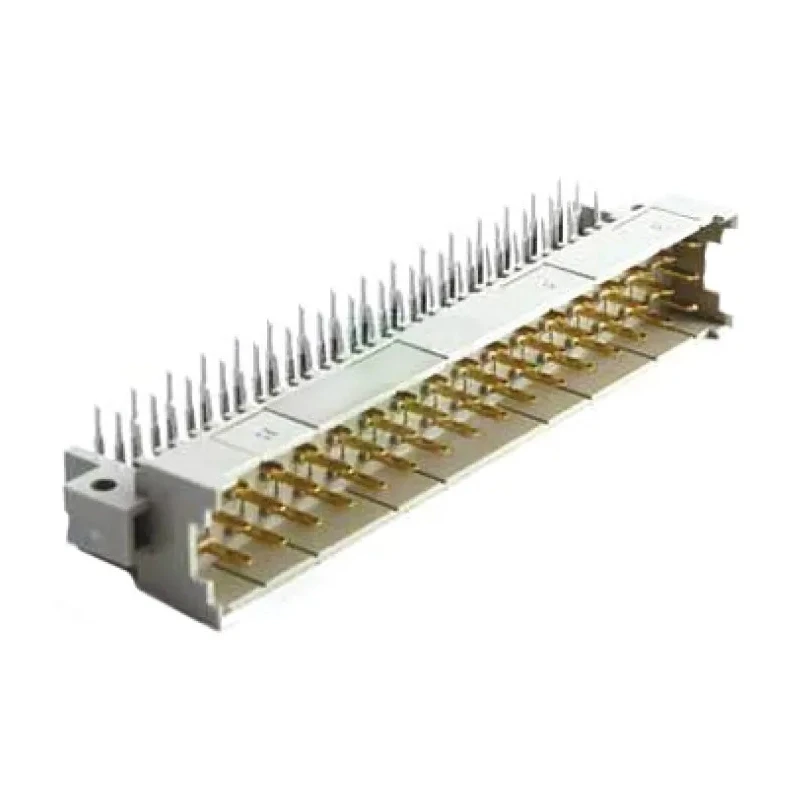

HARTING DIN 41612 Connector 48 Way 5.08 mm Pitch, Type F, Solder Class C1, 3 Row Male Right Angle 09061482901
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 6A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 06 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | F |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | Z, B, D |
Key Features
- The connector supports 3 rows and 6A maximum current per contact.
- Constructed with copper alloy contacts plated with gold over nickel for durability and conductivity.
- Housing is made from thermoplastic resin reinforced with glass fiber.
- Compatible with industrial applications requiring reliable board-to-board or cable connections.
- Operating temperature ranges from -55°C to +125°C, suitable for harsh environments.
- Contact resistance up to 15 milliohms ensures efficient signal transmission.
- Designed according to DIN 41612 standards with Class C1 electrical class.
- Supports row loading types Z, B, D for versatile configurations.
Product Description
HARTING 09061482901 is a DIN 41612 Connector featuring 48 contacts arranged in 3 rows with a standard pitch of 5.08 mm. This male, right angle connector uses solder termination and complies with Class C1 electrical standards, making it well-suited for industrial, electronics, and transportation applications. The connector's high-quality copper alloy contacts plated with gold over nickel provide excellent conductivity and corrosion resistance.
The thermoplastic glass fiber-filled housing material ensures mechanical strength and durability, suitable for environments ranging from -55°C to +125°C. Its compact design enables efficient PCB and cable-to-board connections in control cards, power supplies, and railway transportation systems.
This Harting Type F connector supports row loading types Z, B, and D, offering versatility for various signal and power configurations. The maximum contact resistance of 15 milliohms maintains signal integrity and power efficiency under demanding conditions.
The connector meets rigorous German manufacturing standards and is designed to withstand harsh environments where reliable long-term operation is crucial. It is widely used in electronics manufacturing, industrial automation, telecom equipment, and railway control systems.
The connector supports a maximum current of 6A per contact suitable for moderate power applications. Its 3-row, 48-way configuration allows high-density connections within compact assemblies. Robust solder termination ensures stable, long-lasting electrical connections.
Gold-over-nickel plating protects contacts from oxidation and wear. The connector's thermoplastic body offers high mechanical resistance and flame retardancy.
This product is ideal for engineers and technicians requiring a reliable, industry-standard DIN 41612 edge connector for power and signal applications. For further industrial connectivity solutions, explore the full range of DIN 41612 Connectors and power connectors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 6A per contact.
This model operates within a temperature range of -55°C to +125°C.
The pitch of the contacts in this connector is 5.08 mm.
This connector features a total of 48 contacts.
The contacts are made from copper alloy plated with gold over nickel, while the housing is constructed from thermoplastic resin reinforced with glass fiber.
This connector uses solder termination.
This connector supports row loading types Z, B, and D.
The maximum contact resistance for this connector is 15 milliohms.
This connector has a right angle orientation.
This connector supports a voltage rating of 125V AC.
This connector is manufactured in Germany.
This connector is suitable for industrial, electronics, and transportation applications requiring reliable board-to-board or cable connections.
