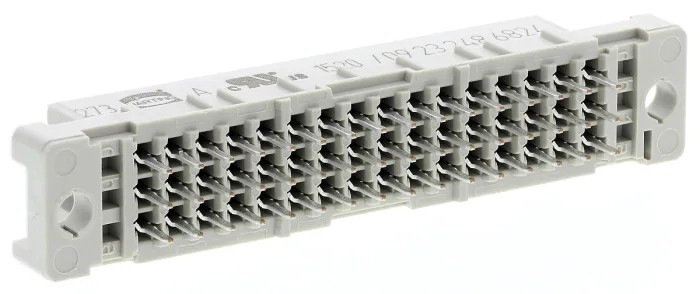

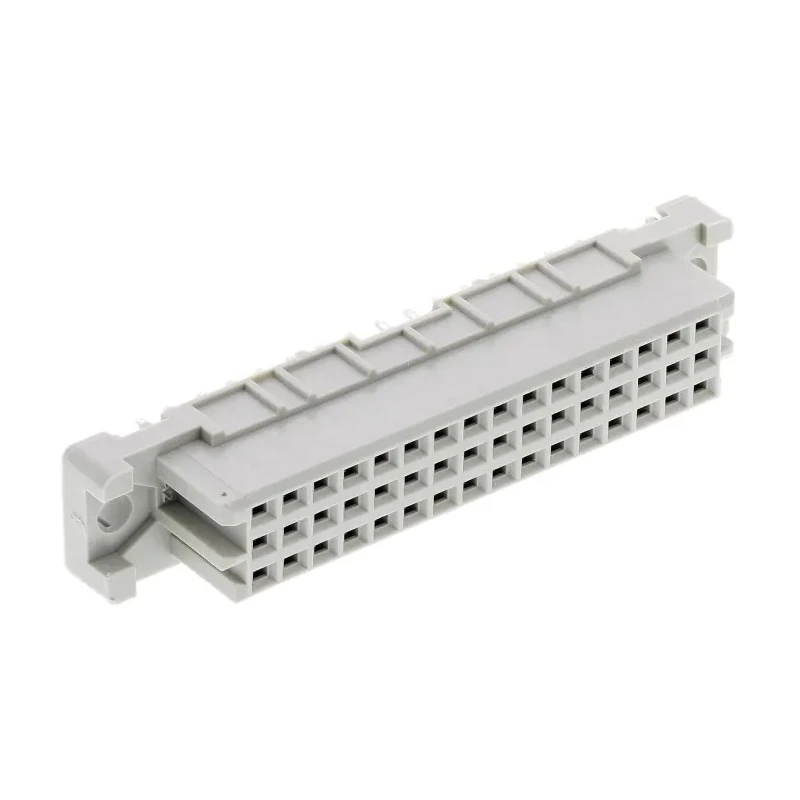

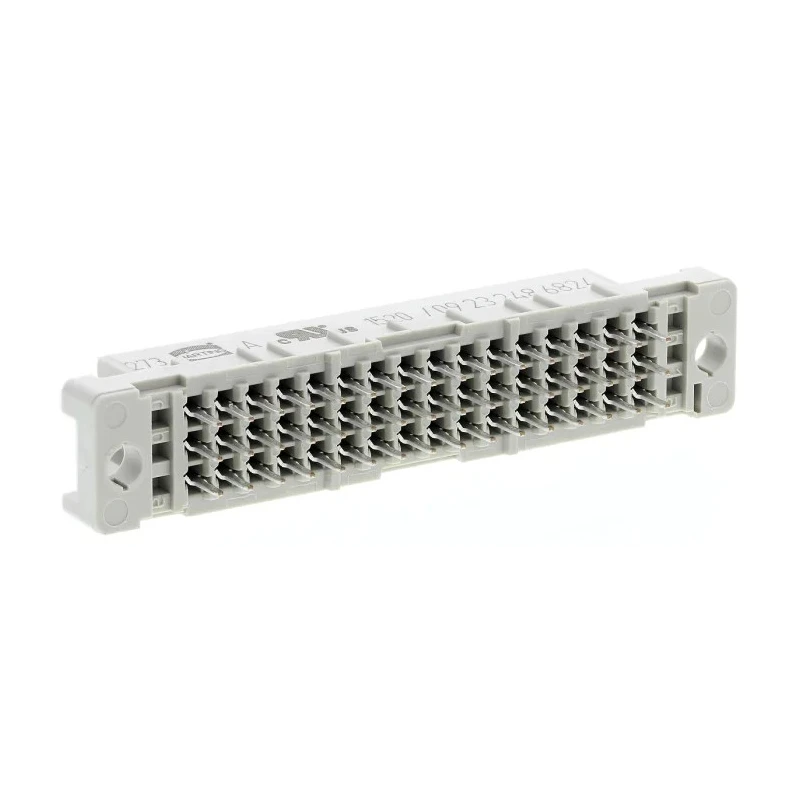

HARTING DIN 41612 Connector 48 Contacts 2.54 mm Pitch, Type C/2, Solder Termination, Class C2, 3 Row Female 09232486824
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 23 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- Designed for robust PCB interconnection with gold over nickel contact plating.
- Supports a current rating of 2A suitable for signal transmission.
- Thermoplastic housing offers durability and mechanical stability.
- Operating temperature range from -55°C to 125°C enables use in harsh environments.
- Contact resistance is low, maximum 20 milliohms ensuring reliable electrical performance.
- Compact 2.54 mm pitch with 3 rows optimizes space on circuit boards.
- Class C2 specification ensures compatibility with DIN 41612 standard systems.
- Suitable for electronic, industrial, and rack mounting applications.
Product Description
HARTING 09232486824 DIN 41612 Connector is a high-quality 48-contact female connector designed with a 2.54 mm pitch and Type C/2 configuration, optimized for PCB solder mounting. This connector offers a straight orientation and three rows, making it suitable for interconnecting printed circuit boards and backplane applications.
The connector is constructed with a durable thermoplastic housing filled with glass fiber for enhanced mechanical strength, while the contacts are made from copper alloy plated with gold over nickel to provide excellent conductivity and corrosion resistance.
This product supports a continuous current of 2 amps and features a low maximum contact resistance of 20 milliohms, ensuring consistent signal integrity. It operates reliably within a temperature range from -55°C to 125°C, making it suitable for diverse industrial, electronic, and manufacturing environments.
Compliant with the DIN 41612 standard, this class C2 connector guarantees compatibility and interchangeability within 19-inch Eurocard rack systems, widely used in telecommunications, data processing, and industrial control equipment.
Manufactured in Germany, the connector's robust design assures long mating cycles and dependable performance, ideal for demanding electronic system assemblies requiring reliable backplane connectivity.
Gold over nickel plated copper alloy contacts minimize oxidation and maintain electrical performance. Thermoplastic resin housing with glass fiber offers heat resistance and mechanical durability. Supports industrial, laboratory, and manufacturing applications needing dependable high-density backplane connectors.
Perfect for signal transmission where precise electrical characteristics and rugged construction are required. Facilitates efficient PCB design with 2.54 mm pitch and multi-row contact arrangement.
Choose HARTING DIN 41612 Connectors for trusted quality and performance in professional electronics and industrial automation components. Explore more high-quality connectors and electronic components at EnvMart for your technical and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a continuous current rating of 2A, making it suitable for signal transmission applications.
It operates reliably within a temperature range from -55°C to 125°C, allowing use in harsh environments.
The HARTING DIN 41612 connector features 48 contacts, arranged in three rows.
The pitch of this connector is 2.54 mm, which optimizes space on circuit boards.
It features a thermoplastic housing and contacts made from copper alloy, plated with gold over nickel for enhanced conductivity and corrosion resistance.
The maximum contact resistance is 20 milliohms, ensuring reliable electrical performance.
This model uses solder termination, which is suitable for PCB solder mounting applications.
Yes, it is compliant with the DIN 41612 standard, ensuring compatibility and interchangeability within standard systems.
The connector has a straight orientation, making it suitable for various interconnection applications.
This connector is manufactured in Germany, ensuring adherence to quality standards.
It is suitable for electronic, industrial, and rack mounting applications, particularly in telecommunications and data processing.
The series designation for this connector is 09 23, indicating its specific configuration within the HARTING product line.
