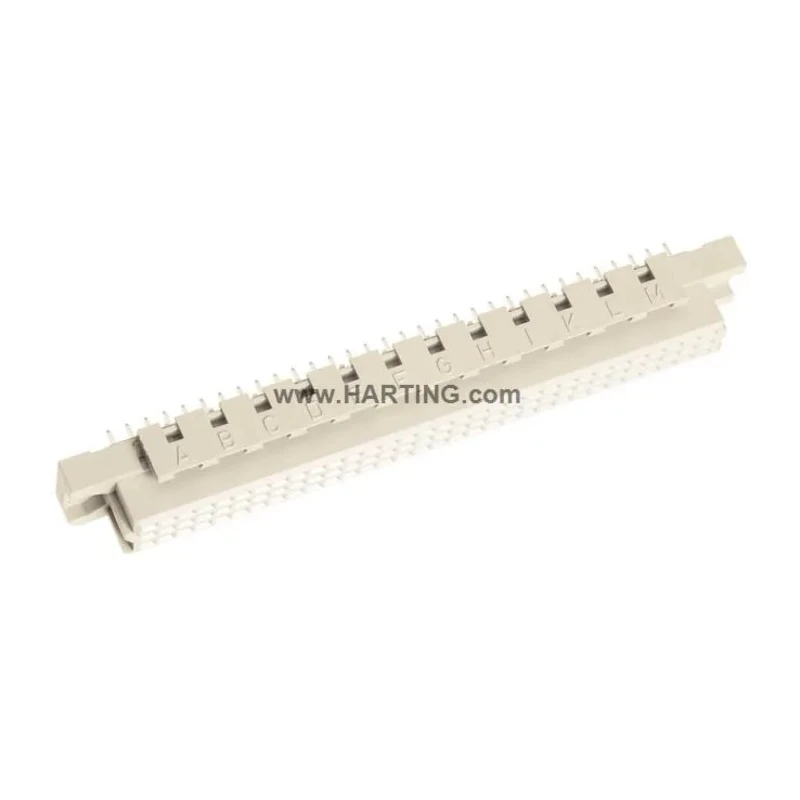

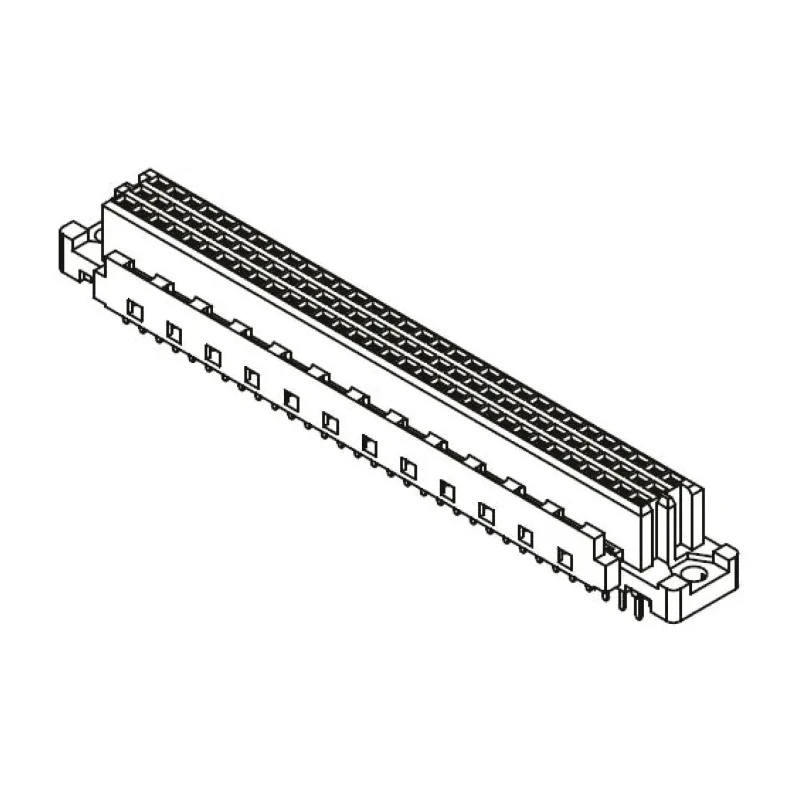

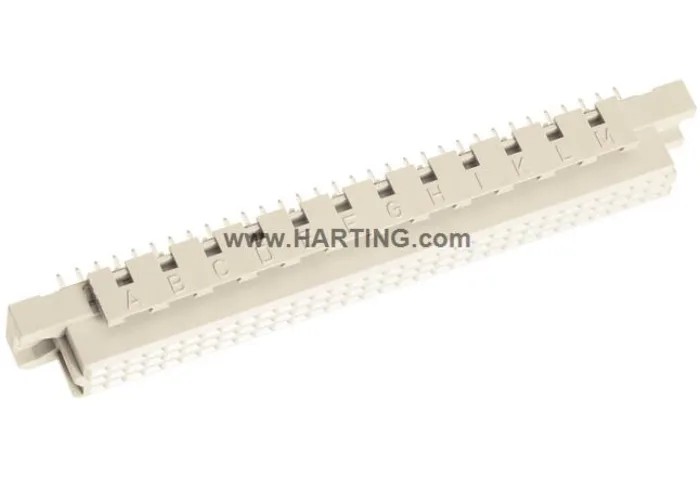

HARTING DIN 41612 Connector 64 Way 2.54 mm Pitch Type C/2, Solder Termination, Female, 3 Row, Straight 09037646825
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 03 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Supports continuous current of 2A per contact for robust signal transmission.
- Features gold over nickel contact plating to ensure corrosion resistance and reliable conductivity.
- Thermoplastic housing material offers durability withstanding temperatures from -55°C to 125°C.
- Designed with a solder termination suitable for permanent PCB mounting.
- Ideal for industrial and electronic applications requiring standard DIN 41612 backplane connector solutions.
- Class C2 specification ensures compliance with industry reliability standards.
- Copper alloy contacts provide optimal electrical performance with a maximum contact resistance of 20mΩ.
Product Description
HARTING 09037646825 is a DIN 41612 Connector featuring 64 contacts arranged in 3 rows with a 2.54 mm pitch. This type C/2 female connector has a straight orientation and solder termination for secure PCB connections. Its robust thermoplastic housing and copper alloy contacts plated with gold over nickel ensure high performance and durability in industrial electronics.
Suitable for harsh environments, this connector operates reliably between -55°C and 125°C, supporting currents up to 2A per contact. The connectors are designed for backplane and rack applications in electronics manufacturing, communications equipment, and automation systems.
The Class C2 standard classifies its performance parameters guaranteeing reliability and mating cycles, while the maximum contact resistance of 20mΩ ensures signal integrity. This product meets the typical requirements for 19-inch Eurocard systems and provides an economical solution for interconnect needs.
Its female contact gender and solder termination make it ideal for permanent assembly, facilitating efficient signal transmission with a durable mechanical design. The housing material is thermoplastic, glass fiber filled, providing resilience in demanding environments.
Supports continuous current of 2A per contact for robust signal transmission. Features gold over nickel contact plating to ensure corrosion resistance and reliable conductivity. Thermoplastic housing material offers durability withstanding temperatures from -55°C to 125°C.
Designed with a solder termination suitable for permanent PCB mounting. Ideal for industrial and electronic applications requiring standard DIN 41612 backplane connector solutions. Class C2 specification ensures compliance with industry reliability standards.
Copper alloy contacts provide optimal electrical performance with a maximum contact resistance of 20mΩ. Browse the full range of DIN 41612 Connectors and power connectors at EnvMart for reliable electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a continuous current of 2A per contact, ensuring robust signal transmission.
The contacts in this model are arranged with a pitch of 2.54 mm.
It operates reliably between -55°C and 125°C, making it suitable for harsh environments.
This model features 64 contacts arranged in 3 rows.
It has a solder termination type, designed for permanent PCB mounting.
The housing is made from thermoplastic, and the contacts are copper alloy with gold over nickel plating.
The maximum contact resistance is 20mΩ, ensuring optimal electrical performance.
This connector has a straight orientation, suitable for various applications.
Yes, it complies with Class C2 specifications, ensuring reliability and performance standards.
It is ideal for backplane and rack applications in electronics manufacturing, communications equipment, and automation systems.
The country of origin for this connector is India.
This model features a female contact gender, designed for secure connections.
