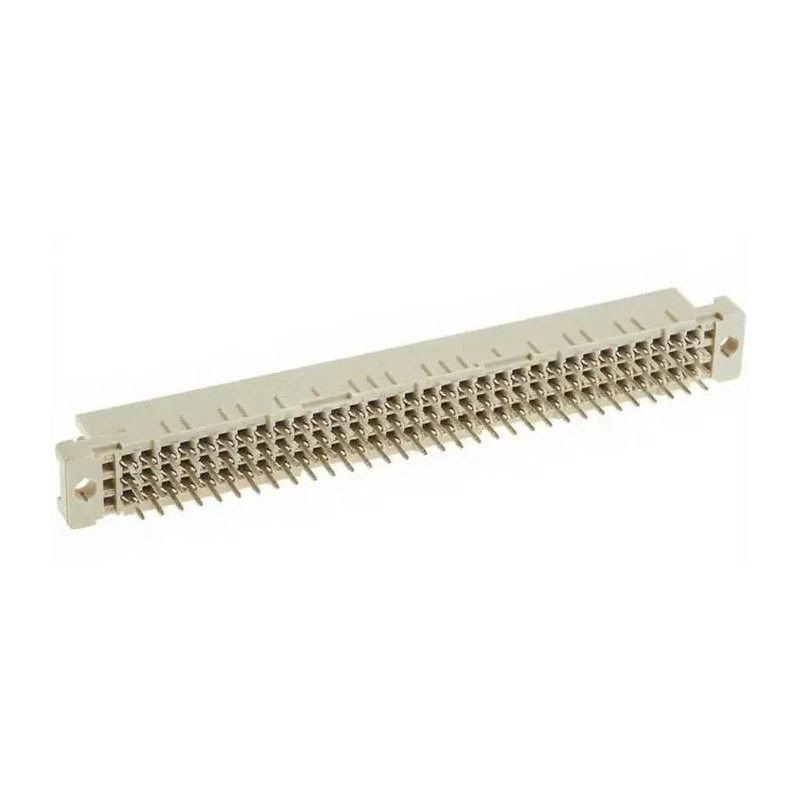

HARTING DIN 41612 Connector 64 Contacts 2A Current 2.54 mm Pitch Solder Termination Female Straight 3 Row Class 09032646855
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 03 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Supports 2 amp current capacity for signal applications.
- Features 3 rows with Class C2 configuration for multi-row connectivity.
- Constructed with copper alloy contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
- Thermoplastic housing provides durability and withstands operating temperatures from -55°C to +125°C.
- Designed for PCB mounting with a solder termination type for firm and stable connections.
- Maximum contact resistance is rated at 20 milliohms ensuring low signal loss.
- Compliant with DIN 41612 standard type C/2, suitable for Eurocard racking systems.
- Manufactured in Germany ensuring high quality and industrial reliability.
Product Description
HARTING 09032646855 is a high-quality DIN 41612 connector designed for industrial and electronic applications requiring reliable PCB backplane connections. This connector features 64 contacts arranged in 3 rows with a 2.54 mm pitch, conforming to the Class C2 configuration. Its female, straight orientation and solder termination style make it suitable for secure mounting and long-term durability.
The contacts are made from copper alloy plated with gold over nickel, ensuring excellent electrical conductivity and resistance to corrosion, while the thermoplastic housing offers robust mechanical protection. The connector operates efficiently over a temperature range from -55°C up to 125°C, meeting the demands of harsh industrial environments.
HARTING DIN 41612 connectors are widely used in 19-inch Eurocard racking systems for backplane signal transmission. With a maximum contact resistance of 20 milliohms and a current rating of 2A, this connector ensures minimal signal interference and reliable electrical performance.
This connector is manufactured in Germany, adhering to strict quality standards. It is especially suited for industrial, manufacturing, laboratory equipment, telecommunications, power electronics, and commercial electronic systems.
Supports 2 amp current capacity for signal applications. Features 3 rows with Class C2 configuration for multi-row connectivity. Constructed with copper alloy contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
Thermoplastic housing provides durability and withstands operating temperatures from -55°C to +125°C. Designed for PCB mounting with a solder termination type for firm and stable connections. Maximum contact resistance is rated at 20 milliohms ensuring low signal loss.
Compliant with DIN 41612 standard type C/2, suitable for Eurocard racking systems. Manufactured in Germany ensuring high quality and industrial reliability. Ideal for industrial, electronic, power distribution, and telecommunications backplane interconnections.
Explore our broad range of DIN 41612 Connectors and other electronic components at EnvMart for reliable, industrial-grade connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current capacity of 2 amps, making it suitable for signal applications.
The contacts are arranged with a pitch of 2.54 mm.
This connector features a total of 64 contacts arranged in 3 rows.
It is constructed with copper alloy contacts plated with gold over nickel, and the housing is made of thermoplastic.
The maximum operating temperature is rated at 125°C.
The minimum operating temperature is -55°C.
It uses a solder termination type for secure mounting.
The maximum contact resistance is rated at 20 milliohms, ensuring low signal loss.
Yes, it is compliant with the DIN 41612 standard type C/2, suitable for Eurocard racking systems.
The connector has a straight orientation.
It is manufactured in Germany, adhering to high quality standards.
It is suitable for industrial, electronic, power distribution, and telecommunications backplane interconnections.
