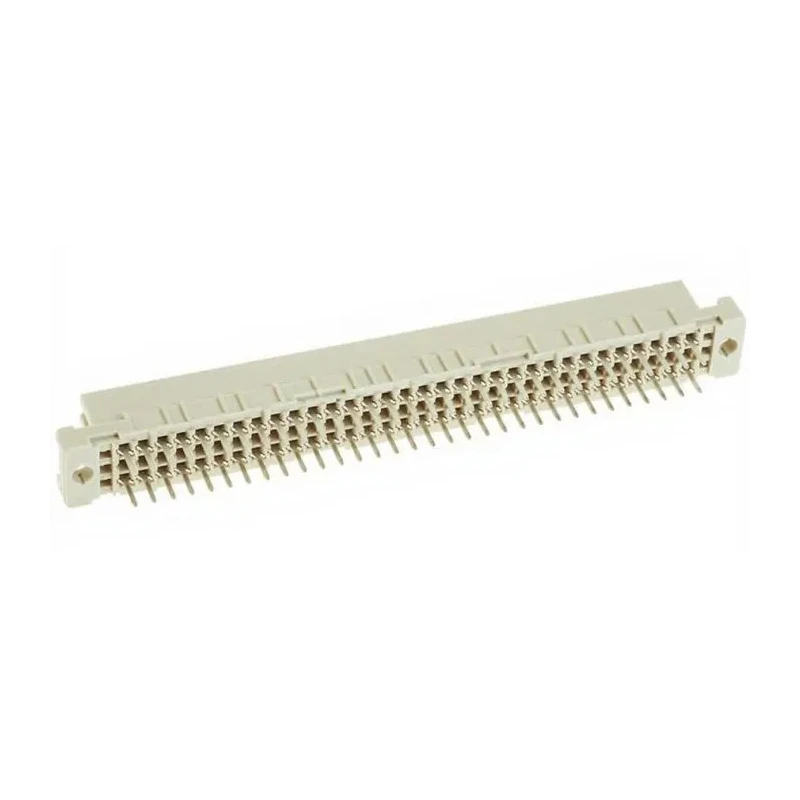

HARTING DIN 41612 Connector 32 Contacts 3 Row Female Straight 2.54 mm Pitch Type C/2 Solder Class C2 09032326825
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 03 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- The connector features a solder termination suitable for durable electronic assembly.
- Class C2 with Type C/2 sub type ensures robust signal connection performance.
- Contacts are plated with gold over nickel for enhanced conductivity and corrosion resistance.
- Operates reliably in temperature range from -55°C to 125°C, suitable for harsh environments.
- Thermoplastic housing material provides electrical insulation and mechanical strength.
- Copper alloy contacts guarantee low contact resistance and signal integrity.
- Designed to support up to 2A current for typical electronic signaling applications.
- Offers an economical solution for 19-inch Eurocard backplane interconnection.
Product Description
HARTING 09032326825 is a DIN 41612 connector designed with 32 contacts arranged in 3 rows, configured as a female straight connector with a 2.54 mm pitch. This connector belongs to Type C/2 with solder termination class C2, offering reliable PCB backplane connection for electronic equipment.
Constructed with copper alloy contacts plated in gold over nickel, it ensures low resistance and excellent conductivity, essential for maintaining signal integrity in demanding industrial and electronic applications. The thermoplastic housing material provides robust insulation and mechanical durability, suited for harsh operating environments. Operating temperature ranges from -55°C to +125°C support diverse industrial, manufacturing, and electronic assembly settings.
The connector is designed to carry current up to 2A, making it suitable for a wide range of electronic components and systems requiring dependable signal and power interconnections.
As per DIN 41612 standard, it is compatible with common 19-inch Eurocard systems widely used in industrial automation, laboratory equipment, telecommunications, and control systems. Its three-row female contacts arrangement with precise 2.54 mm pitch meets industry interoperability needs.
The solder termination facilitates secure and stable assembly on PCB boards. Gold over nickel plating enhances durability and resistance against corrosion. Class C2 and Type C/2 specification guarantee high performance connections in rugged applications.
Operating temperature range supports use in extreme environmental conditions. Thermoplastic resin housing ensures mechanical protection and longevity. Manufactured in Germany, underscoring strict quality control and reliability.
This connector is ideal for electronic manufacturing, laboratory instrumentation, telecommunications, and industrial automation sectors requiring high-quality DIN 41612 backplane connectors.
Explore more products in the DIN 41612 Connector category on EnvMart to find compatible components and accessories to enhance your electronic projects and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C, allowing it to function in a variety of industrial environments.
This connector features 32 contacts arranged in 3 rows, designed for effective signal transmission.
It uses a solder termination type, which provides a secure and stable assembly on PCB boards.
The housing is made of thermoplastic material, while the contacts are made of copper alloy with gold over nickel plating for enhanced conductivity and corrosion resistance.
It is designed to carry a current of up to 2A, suitable for typical electronic signaling applications.
The contacts are arranged with a pitch of 2.54 mm, which is standard for DIN 41612 connectors.
This connector is manufactured in Germany, ensuring strict quality control.
The minimum operating temperature is -55°C, making it suitable for harsh environmental conditions.
It is ideal for electronic manufacturing, laboratory instrumentation, telecommunications, and industrial automation sectors.
The maximum contact resistance is 20mΩ, which helps maintain signal integrity.
This model features a female connector gender, designed for compatibility with corresponding male connectors.
It is designed to support 19-inch Eurocard backplane interconnection, commonly used in various electronic systems.
