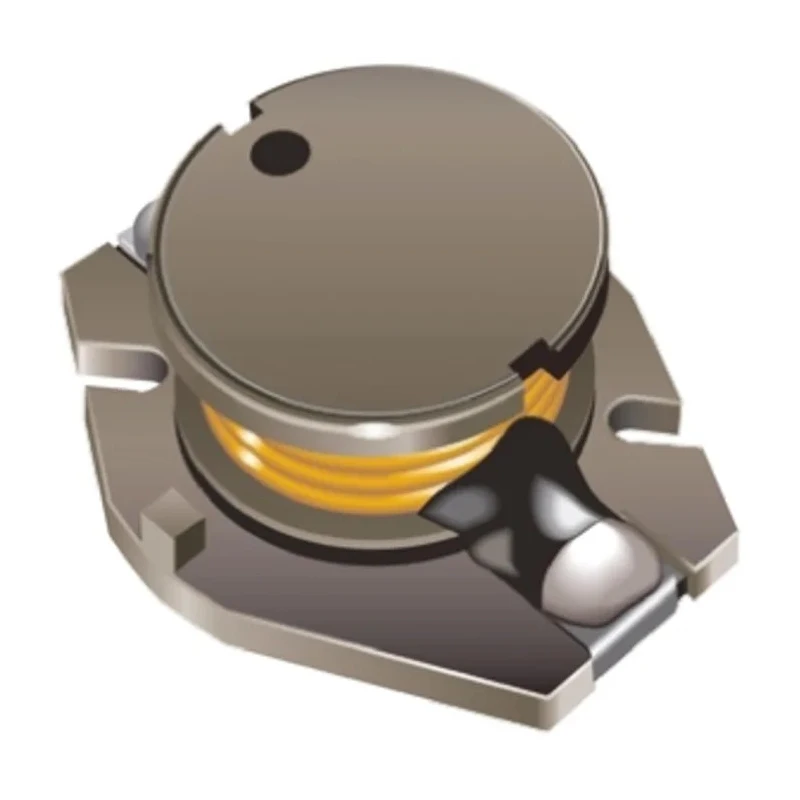

Bourns Wirewound Surface Mount Inductor 330 μH ±10%, 1 A Idc, Ferrite DR Core, 1806 Package SDR1806
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.6mm |
| Length | 18.3mm |
| Model | SDR1806 |
| Depth | 14mm |
| Packaging | Reel |
| Series | SDR1806 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 330μH |
| Standards/Approvals | RoHS, JEDEC |
| Package/Case | 1806 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3.5MHz |
| Minimum Quality Factor | 18 |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite DR core for efficient magnetic performance.
- Constructed with wirewound technology ensuring durability and reliable inductance.
- Packaged in a low-profile 1806 surface mount case measuring 18.3mm length and 6.6mm height.
- Supports a maximum operating temperature of 125°C and minimum of -40°C for wide operating environments.
- Designed to meet RoHS and JEDEC standards for quality and environmental compliance.
- Maximum DC resistance of 580 milliohms to minimize power loss.
- Inductance tolerance of ±10% allows stable operation within specified range.
- Maximum self-resonant frequency of 3.5 MHz suitable for DC/DC converter and power supply applications.
Product Description
Bourns SDR1806 wirewound surface mount inductor delivers a precise inductance of 330 μH with a tolerance of ±10%, supporting a maximum DC current of 1 A. It features a ferrite DR core which enhances magnetic flux and overall inductor efficiency, designed especially for power electronics applications.
The 1806 package case measures 18.3mm in length, 6.6mm in height, and 14mm in depth, providing a low profile form factor suitable for surface mounting on printed circuit boards. This inductor is moulded for added mechanical durability and reliable performance under diverse operating conditions.
Engineered to function across a broad temperature range from -40°C minimum to 125°C maximum, the SDR1806 series meets RoHS and JEDEC standards, ensuring environmental and quality compliance. It exhibits a maximum DC resistance of 580 milliohms, minimizing power dissipation, and a minimum quality factor of 18, contributing to high efficiency in electronic circuits.
This device's maximum self-resonant frequency of 3.5 MHz makes it ideal for use in DC/DC converter inputs and outputs, as well as in power supply circuits. The wirewound construction promotes stable inductive characteristics and mechanical robustness, making it effective for industrial, commercial, and consumer electronic manufacturing applications.
The product is supplied on reels to facilitate automated pick-and-place assembly, improving production efficiency. Package contents typically consist of the inductor component itself, ready for immediate use in surface mount technology assembly lines.
These inductors are commonly used in industrial electronics, telecommunications, computing devices, automotive electronic modules, and power management systems. Their design supports high current conditions with minimized electromagnetic interference, essential for precise power delivery and signal integrity.
Explore the full range of Bourns Surface Mount Inductors at EnvMart to find components optimized for your specific design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 330 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 1 A.
The dimensions of the 1806 package are 18.3 mm in length, 6.6 mm in height, and 14 mm in depth.
It can operate at a maximum temperature of 125°C and a minimum of -40°C.
The inductor is constructed with a ferrite DR core, enhancing its magnetic performance.
The maximum self-resonant frequency is 3.5 MHz, making it suitable for various applications.
This model meets RoHS and JEDEC standards for quality and environmental compliance.
The maximum DC resistance is 580 milliohms, which helps minimize power loss.
It is supplied on reels, facilitating automated pick-and-place assembly in production.
The minimum quality factor is 18, contributing to its efficiency in electronic circuits.
This inductor uses a surface mount termination style, suitable for PCB applications.
This inductor is commonly used in industrial electronics, telecommunications, computing devices, and power management systems.
