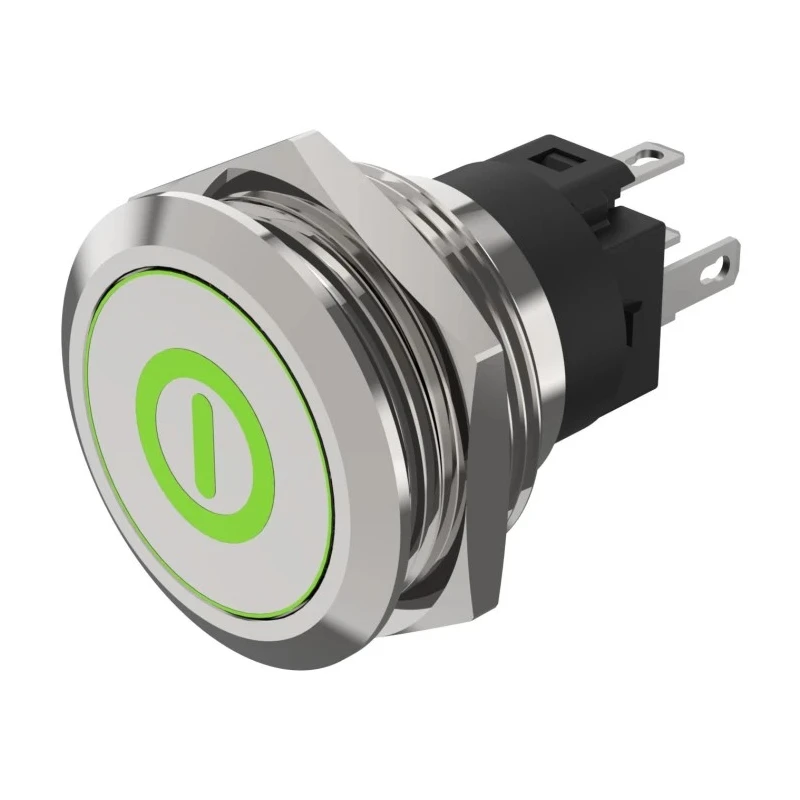

EAO Illuminated Push Button Switch, Latching, Panel Mount, 22.3 mm Cutout, SPDT, Red/Green LED, IP65/IP67 82-6151.2AA4.B001



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.2AA4.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Red, Green
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Push-in
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off

Key Features

Features SPDT contact configuration for versatile switching.
Equipped with red and green LEDs for clear indication.
Robust stainless steel 304 actuator with silver color finish.
Front panel protection rated IP65 and IP67 for dust and water resistance.
Operates reliably between -30°C and 70°C ambient temperatures.
Designed for 240 V AC/DC contact voltage and 3 A contact current.
Latching push-in actuator style ensures stable operation.
Vandal-resistant with IK10 impact protection rating.

Product Description

EAO 82-6151.2AA4.B001 series illuminated push button switch features a high-quality stainless steel 304 actuator finished in silver color and a compact 22.3 mm panel cutout diameter. This latching push-in type switch is built to provide exceptional tactile feedback and long service life exceeding one million cycles, making it ideal for rigorous industrial and commercial usage.

The switch is equipped with a Single Pole Double Throw (SPDT) contact configuration and dual-color (red and green) LEDs for clear on-off visual indication. It supports a contact voltage rating of 240 V AC/DC with a maximum switch contact current of 3 amps. Certified with IP65 and IP67 front panel protection ratings, the switch offers excellent resistance to dust and water ingress, allowing it to operate reliably in demanding environments.

Its vandal-resistant construction, compliant with IK10 impact resistance, ensures durability in exposed public areas such as ticketing and vending machines. Furthermore, it is suitable for industrial machinery control, elevators, building security systems, audio-video equipment, medical devices, and food industry applications, highlighting its versatile functionality across sectors.

The device operates effectively within a wide temperature range from -30°C to 70°C, maintaining performance stability under varying conditions. Optional gold contacts enhance reliability for applications requiring low voltage and current switching. The ergonomic design facilitates easy panel mounting with a smooth push-in actuator style and laser-etched on-off legends for clarity and precision.

Features SPDT contact configuration for versatile switching. Equipped with red and green LEDs for clear indication. Robust stainless steel 304 actuator with silver color finish. Front panel protection rated IP65 and IP67 for dust and water resistance.

Operates reliably between -30°C and 70°C ambient temperatures. Designed for 240 V AC/DC contact voltage and 3 A contact current. Latching push-in actuator style ensures stable operation. Vandal-resistant with IK10 impact protection rating.

High durability with over 1 million operation cycles expected lifespan. Gold contact option available for low voltage and current applications. Suitable for exposed public areas, industrial machinery, elevators, and medical equipment.

This product is manufactured in Switzerland, ensuring premium quality standards and reliability. It is an excellent solution for demanding industrial, laboratory, commercial, and HVAC control panel switch applications, providing robustness and long-term performance. Browse similar EAO Push Button Switches at EnvMart for comprehensive automation solutions.
