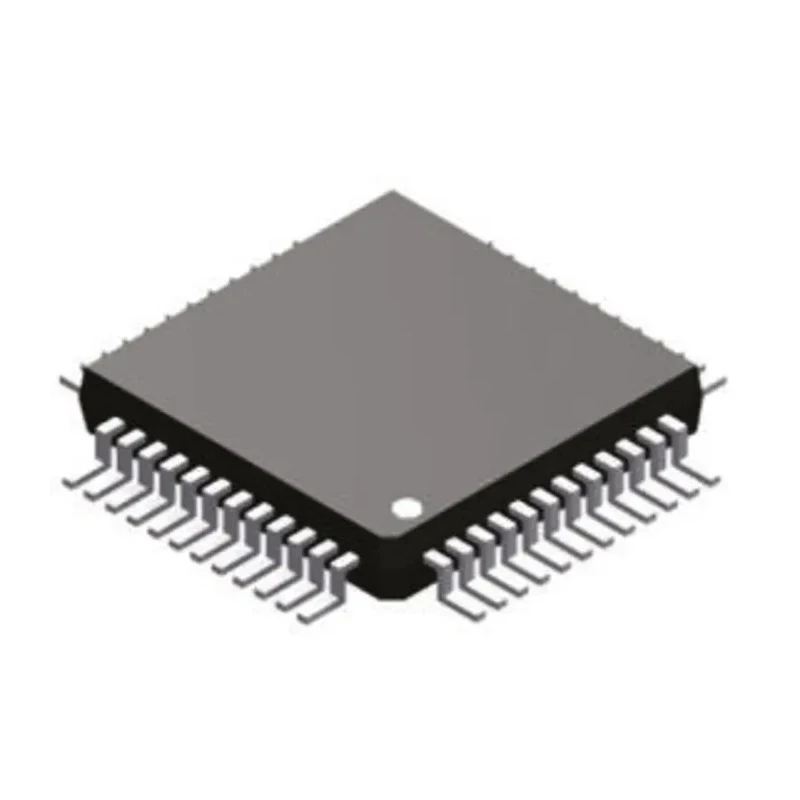

STMicroelectronics STM8S207C8T6 8-Bit STM8 Microcontroller 24 MHz 1.536kB RAM 64 kB FLASH 48-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM8 |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM8S |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 6kB |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 443mW |
| Minimum Supply Voltage | 2.95V |
| Device Core | STM8 |
| Program Memory Size | 1.536, 64kB |
| Maximum Clock Frequency | 24MHz |
| Number of Programmable I/Os | 68 |
| Number of Timers | 2 |
| Instruction Set Architecture | CISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Advanced 8-bit STM8 core with a 3-stage pipeline offering high performance.
- Maximum clock frequency of 24 MHz enabling efficient processing.
- Contains 6kB RAM and 68 programmable input/output pins.
- Operates within a voltage range of 2.95V to 5.5V ensuring flexible power supply options.
- Surface-mount LQFP package measuring 7.2 mm × 7.2 mm × 1.45 mm.
- Includes 16 ADC channels with 10-bit resolution for precise analog measurements.
- Program memory utilizes FLASH type allowing reliable code storage.
- Designed for operation in a temperature range from -40°C to 85°C for industrial use.
Product Description
STMicroelectronics STM8S207C8T6 is an 8-bit STM8 microcontroller designed for advanced industrial and embedded applications. It features a high-performance STM8 core with a 3-stage pipeline architecture, delivering up to 20 MIPS at a 24 MHz clock frequency. This versatile microcontroller combines efficient processing capabilities with a rich set of peripherals suitable for control, measurement, and automation tasks.
The device includes a program memory size of 64 kB FLASH and 1.536 kB RAM, providing ample capacity for embedded firmware and data. It is housed in a compact 48-pin Low-profile Quad Flat Package (LQFP) with surface mount technology, facilitating easy PCB integration and space-saving design.
With a maximum power dissipation of 443 mW and operating voltage range from 2.95 V to 5.5 V, this microcontroller is energy efficient and adaptable to various power conditions. The operational temperature range from -40°C to 85°C ensures reliable performance in harsh environmental conditions common in industrial and automotive sectors.
Additional features include 68 programmable I/O pins, 16 ADC channels with 10-bit resolution, 2 timers for precise timing operations, and a CISC instruction set architecture optimized for control applications. The STM8S207C8T6 is ideal for embedded systems requiring compact size, low power consumption, and robust performance, such as consumer electronics, home appliances, and industrial control systems.
Advanced STM8 8-bit core with 3-stage pipeline architecture. 64 kB FLASH program memory and 1.536 kB RAM for complex code execution. Wide operating voltage range from 2.95 V to 5.5 V. Temperature tolerance from -40°C to 85°C for industrial-grade applications.
48-pin LQFP package with compact dimensions of 7.2 mm length and width, and 1.45 mm height. Rich peripheral set including 16 10-bit ADC channels and 2 timers. Maximum clock frequency up to 24 MHz for high-speed processing.
Low power consumption with maximum power dissipation of 443 mW. Designed for control, measurement, and embedded system applications.
This microcontroller is suitable for use in automotive systems, industrial automation, consumer electronics, and various embedded applications where reliable performance and integration flexibility are essential. It is supported by the STM8S series platform, ensuring broad compatibility and development resources for engineers and designers.
Explore more microcontroller solutions and embedded components to enhance your designs and systems on EnvMart.
Explore more products in our Microcontrollers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8S207C8T6 microcontroller has a maximum clock frequency of 24 MHz, enabling efficient processing capabilities.
This model features a program memory size of 64 kB FLASH, providing ample capacity for embedded firmware.
It operates within a voltage range of 2.95 V to 5.5 V, allowing for flexible power supply options.
This microcontroller includes 16 ADC channels with 10-bit resolution for precise analog measurements.
It is housed in a 48-pin LQFP package with dimensions of 7.2 mm x 7.2 mm x 1.45 mm.
The STM8S207C8T6 features 1.536 kB of RAM, suitable for handling embedded applications.
This model is designed to operate within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
It includes 68 programmable I/O pins, allowing for extensive interfacing capabilities.
This microcontroller utilizes a CISC instruction set architecture optimized for control applications.
The maximum power dissipation for this microcontroller is 443 mW, indicating its energy efficiency.
The STM8S207C8T6 includes 2 timers for precise timing operations in embedded applications.
This microcontroller is manufactured in India.
