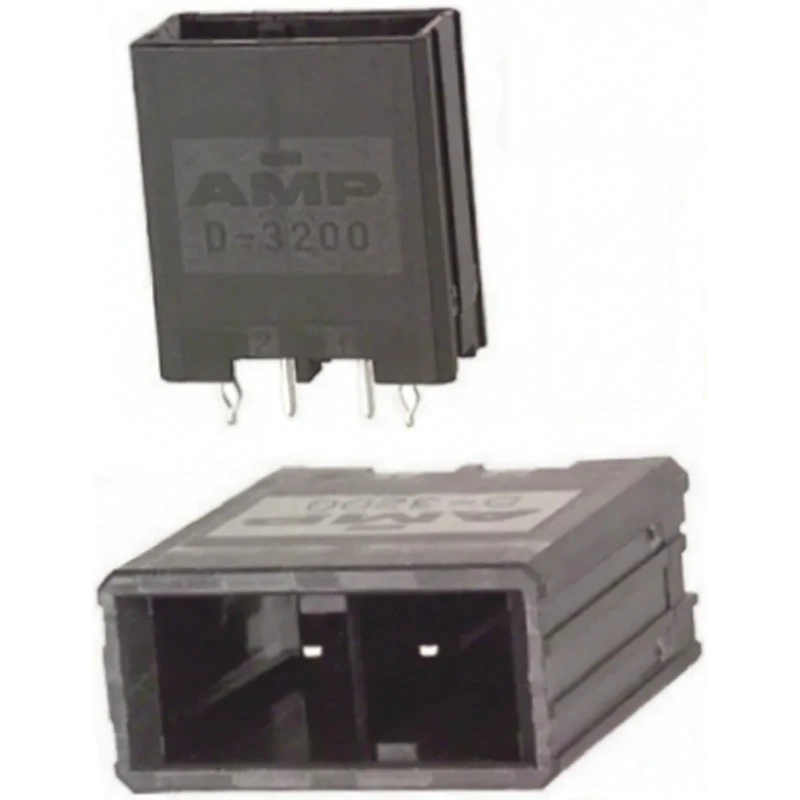

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header 3 Contacts 3.81 mm Pitch 1 Row Shrouded 1-178313-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating of 12A for reliable performance.
- Pitch measurement of 3.81 mm ensures compatibility with standard PCB designs.
- Made from glass filled polyester housing for durability.
- Features copper alloy contacts plated with tin for corrosion resistance.
- Designed for through hole mounting with a straight orientation.
- Operates within a temperature range of -55°C to 105°C.
- Termination is done by soldering to ensure secure connections.
- Suitable for applications requiring 250V voltage rating.
Product Description
TE Connectivity 1-178313-5 Straight Through Hole PCB Header from the Dynamic 3000 Series offers a robust and reliable solution designed for electronic and industrial applications requiring dependable PCB connectors. Featuring 3 contacts with precise 3.81 mm pitch in a single row, this shrouded header ensures secure wire-to-board connections within demanding environments.
The housing is constructed from glass filled polyester, providing excellent mechanical strength and chemical resistance. Copper alloy contacts are plated with tin to ensure enhanced corrosion resistance and consistent electrical conductivity. The straight orientation facilitates easy integration with through hole mounting techniques.
Operating over a broad temperature range from -55°C up to 105°C, this header is suited for industrial, laboratory, and manufacturing uses where reliability and durability are paramount. Designed to handle currents up to 12A at voltages up to 250V, it supports a wide array of electrical power applications.
The solder termination type provides strong and stable soldered joints, improving assembly robustness. The shrouded design helps prevent misalignment, increasing connector lifespan and performance integrity.
Supports a current rating of 12A for reliable performance. Pitch measurement of 3.81 mm ensures compatibility with standard PCB designs. Made from glass filled polyester housing for durability. Features copper alloy contacts plated with tin for corrosion resistance.
Designed for through hole mounting with a straight orientation. Operates within a temperature range of -55°C to 105°C. Termination is done by soldering to ensure secure connections. Suitable for applications requiring 250V voltage rating.
Shrouded construction provides protection and alignment during mating. Ideal for industrial electronic components assembly and power connector systems.
This TE Connectivity Dynamic 3000 Series PCB Header is widely used in electronic manufacturing, construction of industrial control systems, power distribution, and other applications requiring reliable and standardized wire-to-board connectors.
For more technical products in the electronics components category, visit EnvMart to explore related connectors and PCB hardware solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 12A, making it suitable for various electrical power applications.
It is designed to handle voltages up to 250V, which is suitable for many industrial and electronic applications.
The pitch measurement of this model is 3.81 mm, ensuring compatibility with standard PCB designs.
The housing is made from glass filled polyester, while the contacts are copper alloy plated with tin for corrosion resistance.
It operates within a temperature range of -55°C to 105°C, making it suitable for demanding environments.
Termination is done by soldering, which ensures secure connections and enhances assembly robustness.
This model is designed for through hole mounting, which facilitates easy integration into PCB designs.
This PCB header features 3 contacts, allowing for multiple connections in a compact design.
It has a straight orientation, which is typical for through hole mounting applications.
This model belongs to the Dynamic 3000 Series, which is known for its reliable wire-to-board connections.
It utilizes a wire-to-board connector system, making it suitable for various electronic manufacturing applications.
The country of origin for this PCB header is India.
