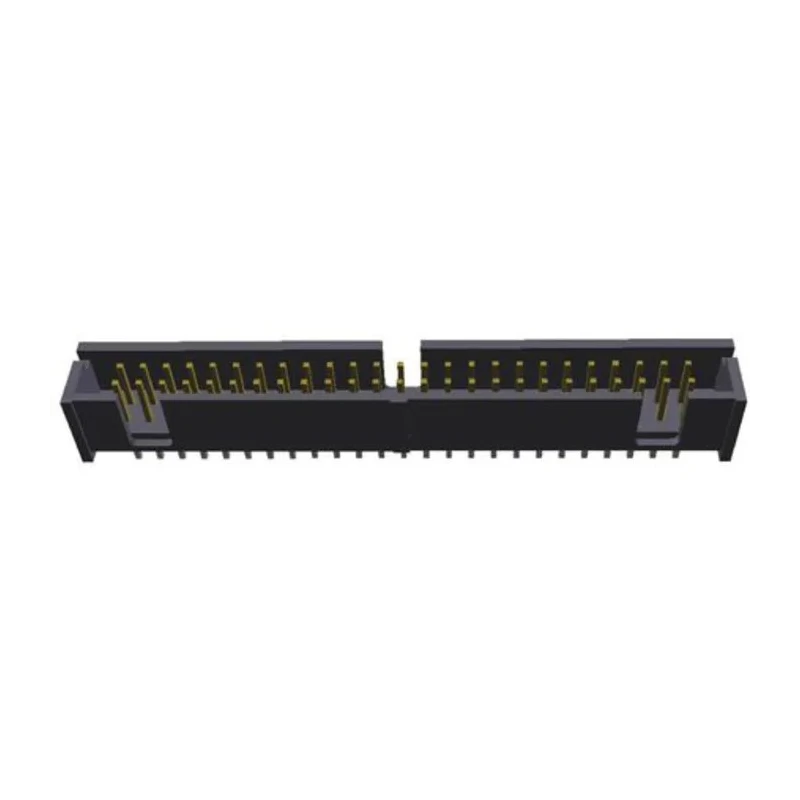

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1-5103309-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a low profile design suitable for precise PCB connections.
- Housings made from flame retardant 94V-0 rated thermoplastic for safety.
- Includes centre and dual polarization slots for accurate mating with IDC ribbon cables.
- Board standoffs allow for effective flux removal during soldering.
- Versions available with kinked solder tails for secure PCB attachment.
- Operates reliably in temperatures ranging from -65°C to 105°C.
- Contact material is copper alloy with gold plating to ensure superior conductivity and corrosion resistance.
- Designed for wire-to-board connector system with through-hole mount type.
Product Description
TE Connectivity model 1-5103309-0 AMP-LATCH Series Straight Through Hole PCB Header features a robust connector solution with 50 contacts arranged in 2 rows and a 2.54 mm pitch. This shrouded PCB header is designed for wire-to-board applications requiring precise and reliable connections. The housing is constructed from flame retardant 94V-0 thermoplastic material, ensuring durability and safety in demanding environments.
The connector incorporates centre and dual polarization slots which aid in accurate mating with IDC ribbon cable connectors, minimizing misalignment during installation. Board standoffs are integrated in the design allowing excess solder flux to be effectively removed, enhancing solder quality and electrical reliability.
This version includes kinked solder tails options, which provide additional mechanical stability by securing the connector firmly to the PCB. The male contacts are fabricated from a copper alloy and plated with gold, delivering excellent electrical performance and corrosion resistance over prolonged use.
Operating temperature range spans from -65°C to 105°C, making the connector suitable for a variety of industrial and commercial applications. The AMP-LATCH series PCB headers are widely utilized in PCs, business and medical equipment, storage devices, networking systems, industrial controls, appliances, and electrical testing machinery.
Low profile and robust mechanical design for reliable PCB interconnects. Flame retardant thermoplastic housing rated 94V-0 for safety. Dual and centre polarization slots ensure correct cable mating. Board standoffs facilitate effective flux removal during soldering.
Kinked solder tails available for enhanced mounting stability. Wide operating temperature range from -65°C to 105°C. Copper alloy contacts with gold plating for high conductivity and corrosion resistance. Through hole mounting for secure PCB connection.
Suitable for medical, networking, industrial, and electronic applications.
This product is part of the extensive TE Connectivity AMP-LATCH connector range and can be explored further within the PCB Headers category on EnvMart for related products and technical resources.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This PCB header features 50 contacts arranged in 2 rows.
It uses a through-hole mounting type for secure PCB connections.
The pitch size of the contacts is 2.54 mm.
The housing is made from flame retardant 94V-0 rated thermoplastic, and the contacts are made from copper alloy with gold plating.
The current rating for this model is 1A.
Yes, it includes centre and dual polarization slots to aid in accurate mating with IDC ribbon cables.
The minimum operating temperature is -65°C.
Yes, this version includes kinked solder tails for enhanced mechanical stability during installation.
This model is suitable for applications in PCs, medical equipment, networking systems, industrial controls, and electrical testing machinery.
The contact gender of this model is male.
The country of origin for this PCB header is India.
