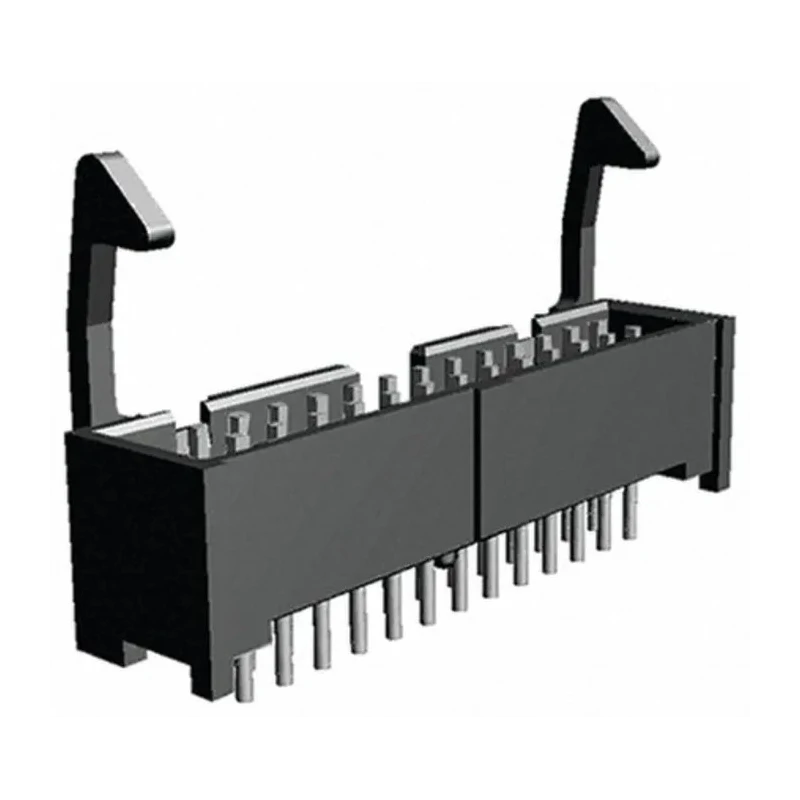

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 26 Contact, 2.54 mm Pitch, 2 Row, Shrouded 1761606-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header features a low profile, two-row, shrouded design ensuring secure mating.
- Made with polybutylene terephthalate housing for durability and heat resistance.
- Contacts are phosphor bronze with gold plating, optimized for high conductivity.
- Operates safely up to 250 volts and 1 ampere current.
- Ejector latches provide secure connection and easy removal with long and short latch options available.
- Suitable for use in PCs, medical equipment, industrial controls, networking, and electrical testing.
- Designed for through-hole mounting with solder termination and male contact gender.
- Effective operating temperature range from -65°C to 105°C for demanding environments.
Product Description
TE Connectivity 1761606-9 AMP-LATCH Series Straight Through Hole PCB Header with 26 contacts, 2.54 mm pitch, and 2 rows is engineered for secure and efficient wire-to-board connections at 250 volts and 1 ampere current. This header features a shrouded design with ejector latches to ensure secure mating and easy disconnection.
Constructed with a polybutylene terephthalate housing, this PCB header withstands demanding operating temperatures from -65°C to 105°C. The phosphor bronze contacts plated with gold guarantee excellent electrical conductivity and durability suited for industrial and commercial environments.
The connector's military and center polarization increase connection reliability by preventing incorrect mating during assembly. Available with long and short latch styles, the connectors provide options depending on strain relief requirements in your application.
This product is ideal for use in PCs, business equipment, medical devices, storage solutions, networking hardware, industrial controls, appliances, and electrical testing equipment. Designed for reliable through-hole mounting with solder termination and a straight orientation, it meets various industrial and laboratory standards.
This PCB header features a low profile, two-row, shrouded design ensuring secure mating. Made with polybutylene terephthalate housing for durability and heat resistance. Contacts are phosphor bronze with gold plating, optimized for high conductivity.
Operates safely up to 250 volts and 1 ampere current. Ejector latches provide secure connection and easy removal with long and short latch options available. Suitable for use in PCs, medical equipment, industrial controls, networking, and electrical testing.
Designed for through-hole mounting with solder termination and male contact gender. Effective operating temperature range from -65°C to 105°C for demanding environments. Military and center polarization enhance reliability and prevent mismating.
Ideal for industrial, laboratory, and commercial electronic applications requiring robust PCB connections. Explore the TE Connectivity range of PCB Headers at EnvMart for reliable and high-performance electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header operates safely at a maximum voltage of 250 volts and a current rating of 1 ampere.
It features a pitch of 2.54 mm and includes 26 contacts.
The housing is made from polybutylene terephthalate, and the contacts are phosphor bronze with gold plating for enhanced conductivity.
The effective operating temperature range is from -65°C to 105°C, making it suitable for demanding environments.
This model is designed for through-hole mounting with solder termination.
It includes military and center polarization to prevent incorrect mating during assembly, along with ejector latches for secure connections.
The orientation of this PCB header is straight.
The shrouded design ensures secure mating and helps to protect the contacts from damage and contamination.
It is suitable for use in PCs, medical equipment, industrial controls, networking hardware, and electrical testing equipment.
The PCB header is available with both long and short latch options to accommodate different strain relief requirements.
The contact gender for this model is male.
The country of origin for this PCB header is India.
