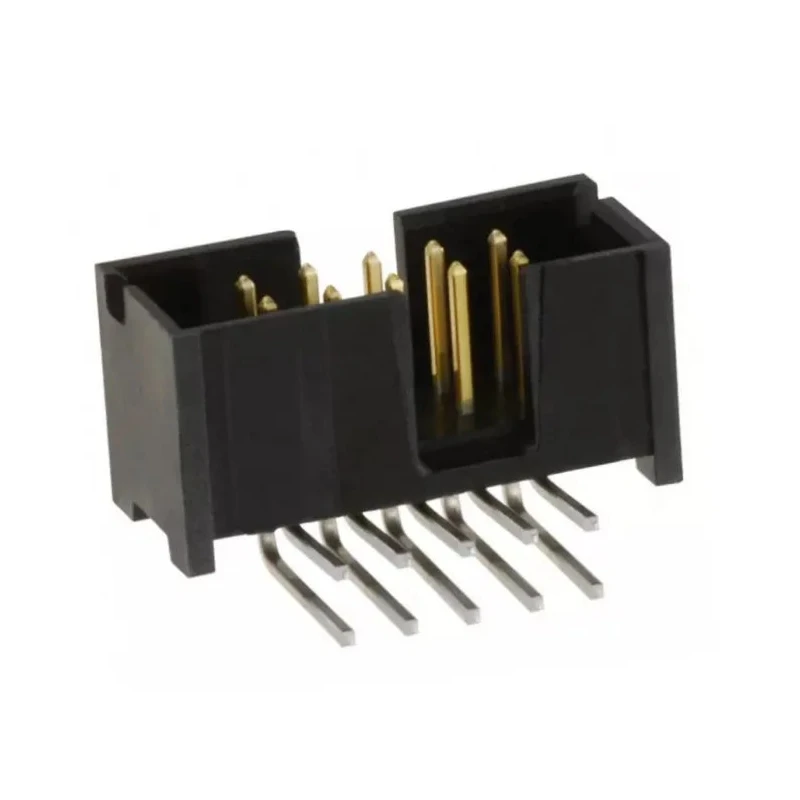

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54mm Pitch, 2 Row 5-103166-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54mm Pitch, 2 Row 5-103166-4

Name: TE Connectivity AMPMODU MOD II Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54mm Pitch, 2 Row 5-103166-4
Brand: TE Connectivity
SKU: 128270
Price: 7.19 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Voltage	40V
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

This PCB header operates at a voltage of 40 V and current rating of 3 A.
It uses phosphor bronze contacts plated with gold for reliable connectivity.
The housing is made of black UL 94V-0 thermoplastic material ensuring durability and safety.
Designed for industrial and automation applications requiring robust board-to-board or wire-to-board connections.
It withstands operating temperatures between -55°C and 105°C.
Termination type is solder, with male contact gender and detent window connector lock feature.
The product is manufactured in the United States under the AMPMODU MOD II series standard profile.

Product Description

TE Connectivity 5-103166-4 AMPMODU MOD II Series Right Angle Through Hole PCB Header is a high-quality connector designed for robust electrical and electronic applications. Featuring 12 male contacts arranged in 2 rows with a precise 2.54 mm pitch, this shrouded PCB header provides secure and stable connections for board-to-board and wire-to-board interfacing.

The housing is constructed from black thermoplastic material certified to UL 94V-0 standards, providing excellent flame retardance and mechanical strength. Contacts are made from phosphor bronze, plated with gold to ensure excellent conductivity and corrosion resistance over extended use.

This PCB header supports up to 3 amperes of current at a maximum voltage of 40 volts. Its operating temperature range spans from -55 degrees Celsius up to 105 degrees Celsius, making it suitable for demanding industrial environments.

Mounting is via through hole technology with a right angle orientation, facilitating easy installation on printed circuit boards while maintaining efficient space utilization. The termination method utilizes soldering, and the connector features a detent window mating lock to improve retention reliability during operations.

Specifically engineered under the AMPMODU MOD II series standard profile, this PCB Header comes with end dimensions optimized at 1.68 mm and 0.64 mm straight square posts for compatibility with complementary connectors.

This component is widely used in automation, control systems, industrial equipment, and electrical assemblies demanding consistent and secure electrical connections. Operates at 3 A current and 40 V voltage rating. Durable thermoplastic housing with UL 94V-0 compliance.

Gold-plated phosphor bronze contacts ensure optimal performance. Right angle, through hole mounting for PCB integration. Wide operating temperature range from -55°C to 105°C. Part of the standardized AMPMODU MOD II interconnect system.

Ideal for board-to-board and wire-to-board industrial applications. Explore more PCB connectors and electronics components in our extensive EnvMart catalog to find compatible parts and accessories for your projects.
