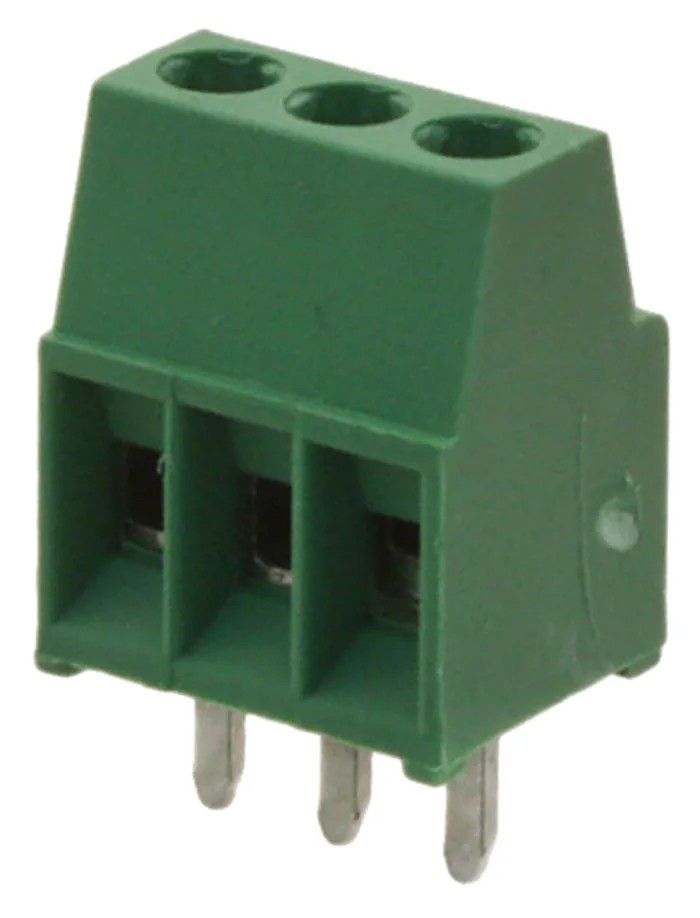

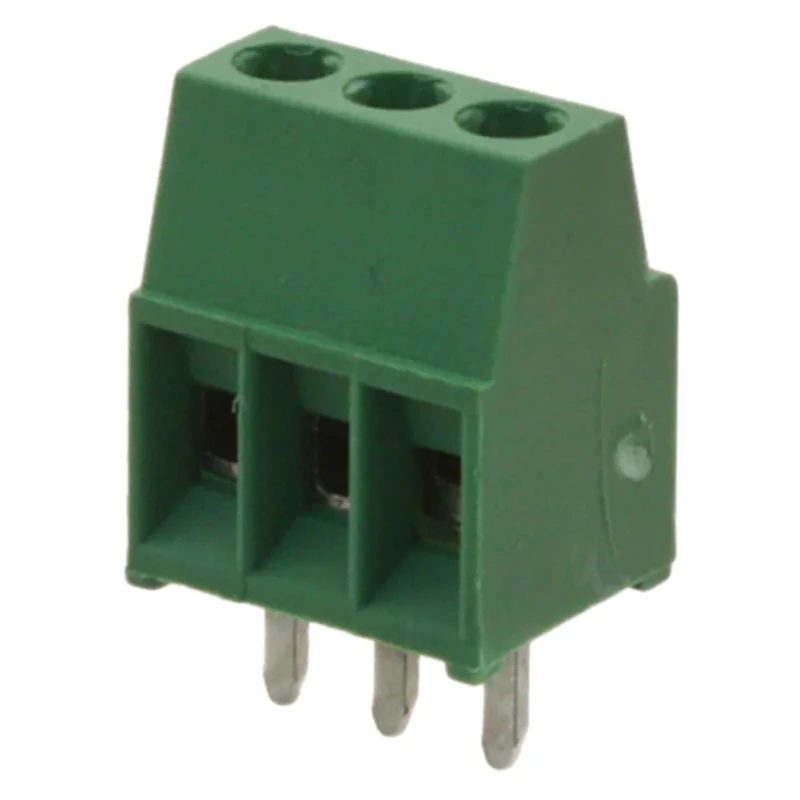

TE Connectivity Buchanan Series 3-Contact 2.54 mm Pitch 1 Row Male PCB Terminal Block 282834-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series 3-Contact 2.54 mm Pitch 1 Row Male PCB Terminal Block 282834-3

Name: TE Connectivity Buchanan Series 3-Contact 2.54 mm Pitch 1 Row Male PCB Terminal Block 282834-3
Brand: TE Connectivity
SKU: 128187



Category Electronic Components Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	150V ac
Brand	TE Connectivity
Colour	Green
Orientation	Straight
Current	10A
Length	8.08mm
Model	282834-3
Depth	6.5mm
Width	10mm
Housing Material	Polyamide
Series	Buchanan
Number of Rows	1
Pitch	2.54mm
Number of Contacts	3
Connector Gender	Male
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	30AWG

Key Features

Supports a current rating of 10A for reliable electrical conduction.
Compatible with wire sizes between 0.05 mm² (16 AWG) and 1.3 mm² (30 AWG).
Constructed with durable green polyamide housing for insulation and mechanical strength.
Features M1.6 nickel-plated brass screw terminals with tin-plated contacts.
Straight orientation allows easy PCB side wire entry installation.
Compact dimensions of 8.08 mm length, 10 mm width, and 6.5 mm depth optimize PCB space.
Buchanan series known for reliable TERMI-BLOK 2.54 mm connectors with rising cage clamp design.

Product Description

TE Connectivity 282834-3 PCB Terminal Block is a high-quality pluggable terminal block designed for Electronic Components and PCB applications. This connector features 3 contacts spaced at 2.54 mm pitch in a single row, enabling reliable wire-to-board connections in compact assemblies.

The terminal block supports currents up to 10A and accepts wire sizes ranging from 0.05 mm² to 1.3 mm² (16 to 30 AWG), providing versatility for various wiring requirements. It incorporates a green polyamide housing that complies with UL 94V-0 flammability standards to ensure safe and durable operation.

The connector gender is male with straight orientation, facilitating side wire entry on printed circuit boards. The screw terminals are M1.6 nickel-plated brass, ensuring secure mechanical and electrical contact, complemented by tin-plated contacts for corrosion resistance.

Compact overall dimensions of 8.08 mm length, 10 mm width, and 6.5 mm depth make it suitable for space-constrained electronic designs. The Buchanan series TERMI-BLOK provides a rising cage clamp design enhancing wire retention and ease of assembly.

This terminal block is applicable across industrial, electronic manufacturing, and automation sectors, supporting circuits with voltage up to 150V AC. It is ideal for power distribution, signal interfacing, and control panel wiring tasks.

Supports a current rating of 10A for reliable electrical conduction. Compatible with wire sizes between 0.05 mm² (16 AWG) and 1.3 mm² (30 AWG). Constructed with durable green polyamide housing for insulation and mechanical strength.

Features M1.6 nickel-plated brass screw terminals with tin-plated contacts. Straight orientation allows easy PCB side wire entry installation. Voltage rating is 150V AC suitable for various electronic applications. Compact dimensions of 8.08 mm length, 10 mm width, and 6.5 mm depth optimize PCB space.

Buchanan series known for reliable TERMI-BLOK 2.54 mm connectors with rising cage clamp design. Explore the wide range of TE Connectivity terminal blocks on EnvMart for superior electronic connector solutions.
