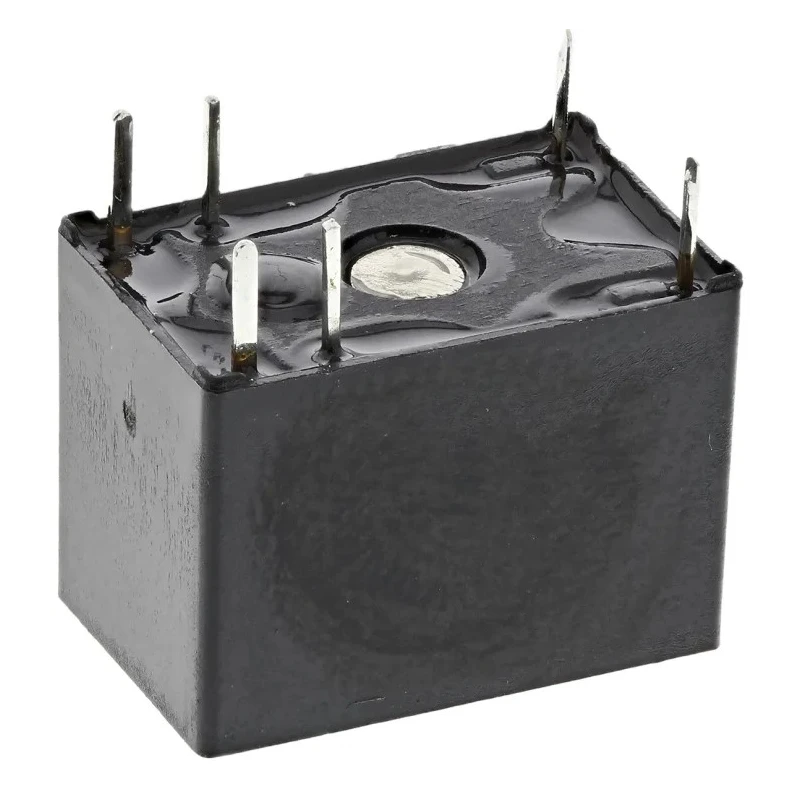

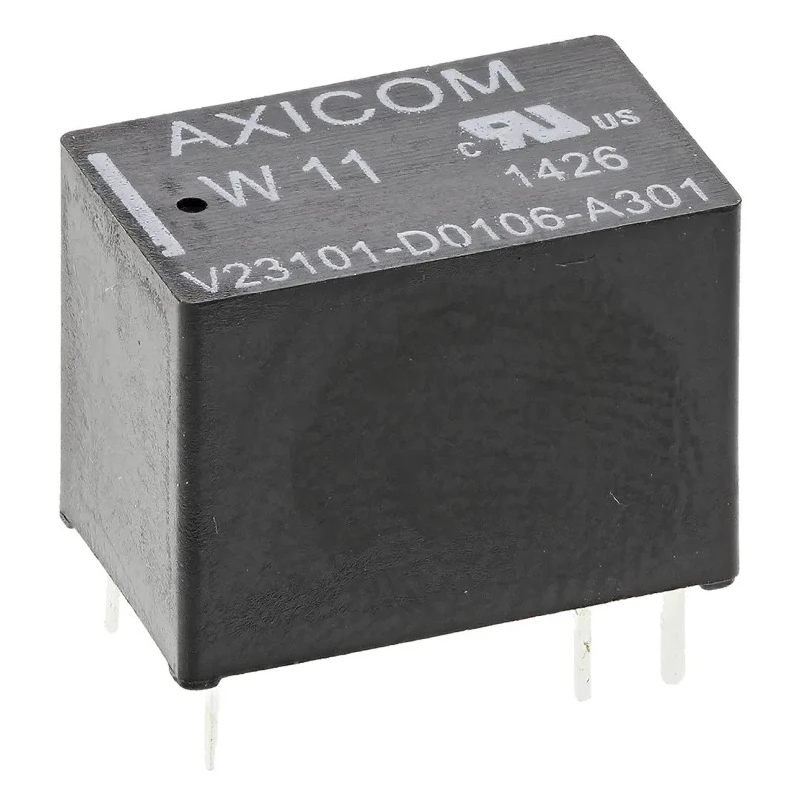

TE Connectivity PCB Power Relay, 12V DC Coil, 3A Switching Current, SPDT W11 Series 1422037-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.5mm |
| Width | 10.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | W11 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | REACH, UL, RoHS |
| Coil Resistance | 700Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 120V ac |
| Coil Power | 206mW |
| Pin Length | 3.5mm |
| TE Connectivity PCB Signal Relay, 12V dc Coil, 1.25A, SPSTBrand | TE Connectivity |
Key Features
- Operates with a 12V DC coil voltage for efficient switching.
- Single Pole Double Throw (SPDT) contact configuration supports versatile circuit control.
- Supports switching currents up to 3A with switching voltages of 120V AC and 120V DC.
- Compact W11 series design with dimensions 11.5mm x 10.5mm x 15.5mm for PCB mounting.
- High resistance coil with 700Ω and coil power rating of 206mW enhances efficiency.
- Contact material is silver alloy ensuring reliable electrical performance.
- Operating temperature range from -40°C to +85°C suitable for varied environments.
- Fully sealed construction provides shock and vibration resistance for industrial use.
Product Description
TE Connectivity 1422037-2 PCB Power Relay is a highly reliable power relay designed for printed circuit board mounting, featuring a 12V DC coil and a switching current capacity of 3A. This SPDT relay from the W11 series delivers dependable switching performance in a compact form factor with dimensions 11.5mm (height) x 10.5mm (width) x 15.5mm (length).
The relay is fully sealed, providing strong resistance to shock and vibration, making it suitable for industrial, automation, and electrical control systems. Its silver alloy contacts facilitate efficient current transfer, supporting switching voltages up to 120V AC and 120V DC.
Coil resistance is rated at 700Ω with a coil power consumption of 206mW, optimizing power usage. The relay operates reliably over a wide temperature range from -40°C to +85°C, suited for challenging environmental conditions.
Pin length of 3.5mm and solder terminal type ensure stable PCB mounting and connections. The W11 series relays are ideal for automation, control panels, signal switching, and various other applications requiring robust power switching solutions on PCB platforms.
Operates at 12V DC coil voltage with 3A switching current capacity. Compact W11 series design dimensions: 11.5mm x 10.5mm x 15.5mm. Silver alloy contact material for reliable conductivity. Wide operating temperature range of -40°C to +85°C.
Fully sealed relay housing for shock and vibration resistance. Solder terminal type with 3.5mm pin length for PCB mounting. Supports switching of 120V AC and 120V DC load voltages.
This relay is compliant with REACH, UL, and RoHS standards, ensuring environmental and safety regulations are met. It is suited for electrical, industrial automation, instrumentation, HVAC, manufacturing, and commercial electrical control applications.
Explore more Power Relay products and components suitable for your industrial or laboratory requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 3A.
The dimensions are 11.5mm in height, 10.5mm in width, and 15.5mm in length.
It operates with a coil voltage of 12V DC.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
It supports switching voltages of up to 120V AC and 120V DC.
The coil resistance is rated at 700Ω.
The contact material is silver alloy, which facilitates reliable electrical performance.
The operating temperature range is from -40°C to +85°C.
It is designed for PCB mounting with solder terminals.
The pin length is 3.5mm.
This relay is compliant with REACH, UL, and RoHS standards.
It is suitable for applications in electrical control, industrial automation, and instrumentation.
