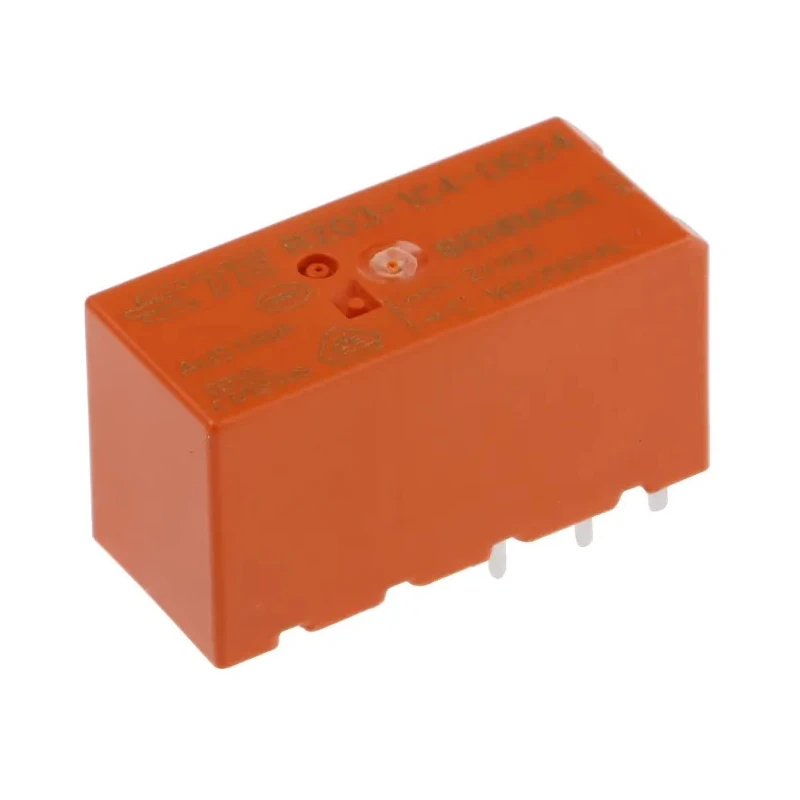

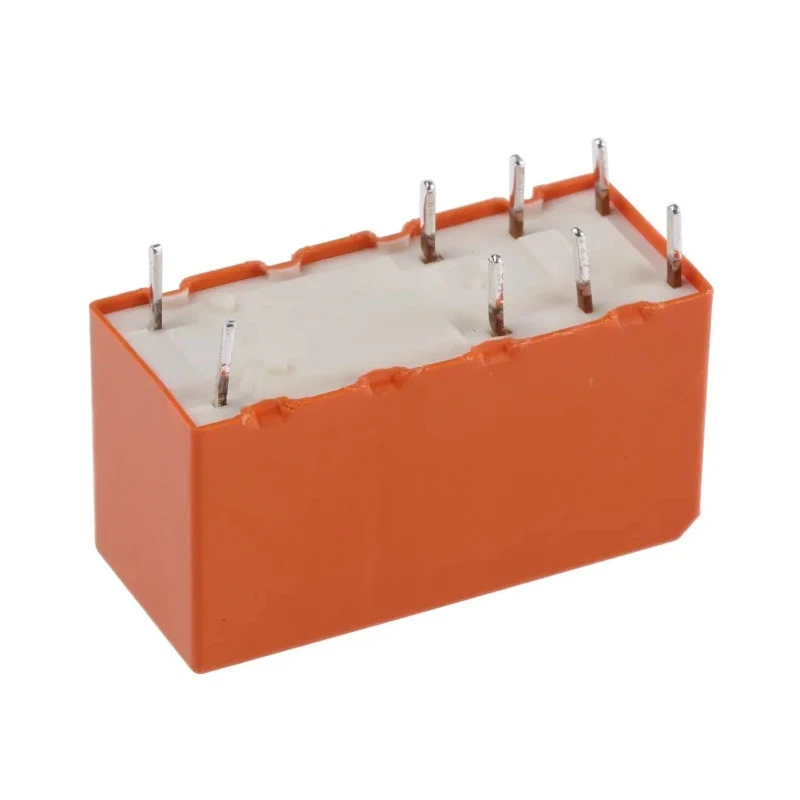

TE Connectivity RZ Series PCB Power Relay, 24V DC Coil, 16A Switching Current, SPDT 2-1415899-3

TE Connectivity 2-1415899-3 PCB Power Relay is a compact and robust device designed for reliable switching in industrial and electrical applications. Featuring a 24V DC coil and a 16A switching current capability with Single Pole Double Throw (SPDT) contact configuration, this RZ Series relay is engineered for PCB mounting with precise dimensions of 29.00 x 12.70 x 15.70 mm.

The relay uses silver alloy contact material for optimal conductivity and long service life. With flux tight design and reinforced insulation rated for 5kV / 10mm clearance, it ensures safety and reliability under high voltage conditions up to 400V AC and switching power up to 3 kVA.

This relay operates efficiently within a temperature range from -40°C to 85°C, making it versatile for harsh environments. The coil resistance is 1.4 kΩ, with coil power consumption of 400 mW, supporting energy-efficient operation. The terminals come in solder mount type facilitating secure and reliable PCB connections.

Certified under multiple international standards including IEC, VDE, UL, RoHS, CQC, and REACH, this product complies with stringent quality and safety requirements demanded in industrial automation, control systems, consumer appliances, and other electrical devices.

Applications for the TE Connectivity 2-1415899-3 power relay include automation equipment, power distribution setups, and signal conditioning devices. Its compact size and robust construction make it ideal for integration into modern electronics where space and reliability are critical.

Features a 400 mW DC coil power consumption. Compact dimensions measuring 29.00 x 12.70 x 15.70 mm for space-efficient PCB integration. Built with silver alloy contacts providing high conductivity and durability. Capable of switching AC voltage up to 400V AC and power up to 3 kVA.

Operates reliably within -40°C to 85°C temperature range. Designed with flux tight construction and reinforced insulation rated 5kV / 10mm. Terminals designed for solder mounting ensuring secure electrical connections. Certified to IEC, VDE, UL, RoHS, CQC, and REACH standards.

Ideal for industrial automation, control systems, and electrical appliances. Explore further Power Relay and electrical component solutions with EnvMart to enhance your projects’ reliability and performance.
