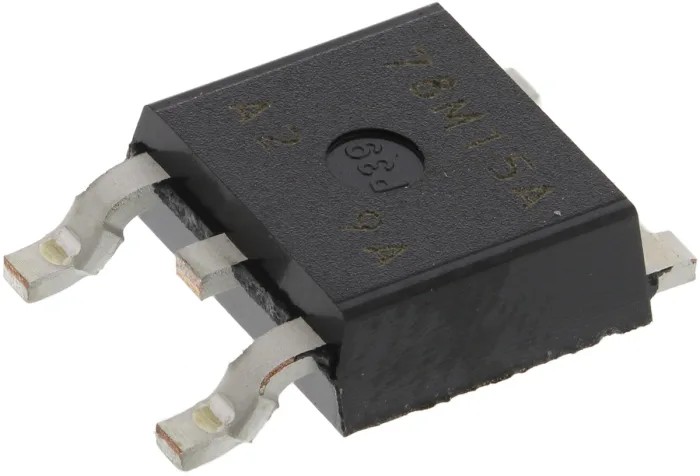

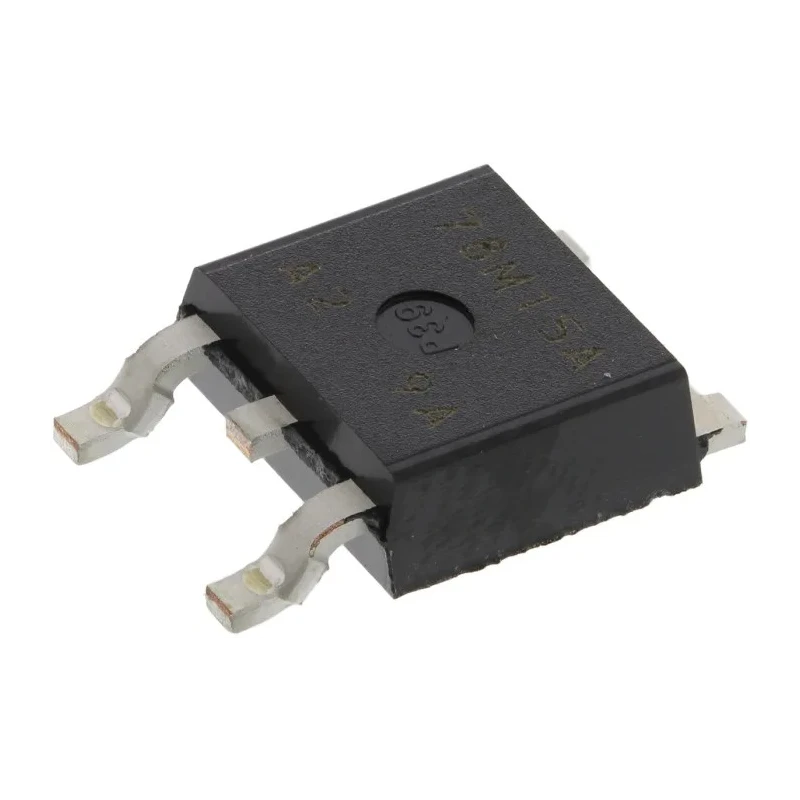

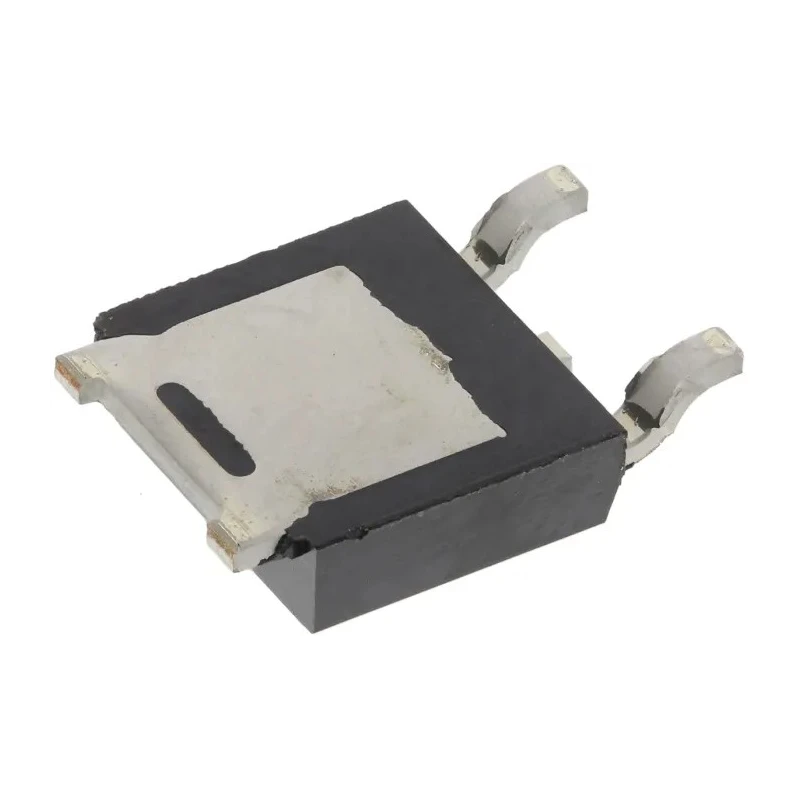

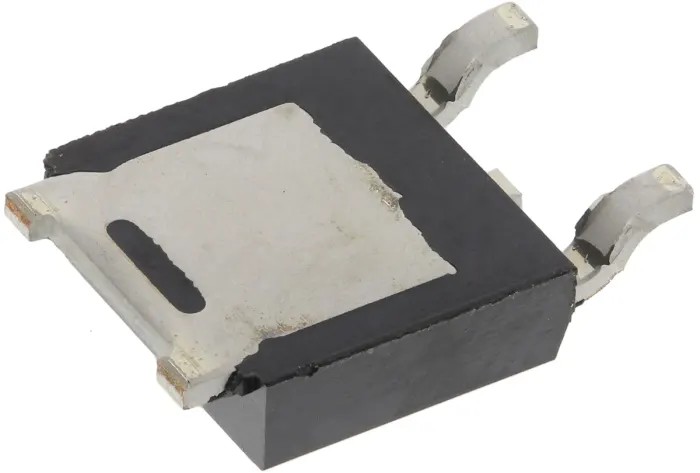

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator 500 mA 15V TO-252 3-Pin NJM78M15DL1A-TE1

Nisshinbo Micro Devices NJM78M15DL1A-TE1 is a 5-channel linear voltage regulator designed for stable and efficient power management with a fixed output voltage of 15V and 500 mA output current capacity. Packaged in the compact TO-252 3-pin surface mount format, this regulator supports a variety of electronic applications requiring consistent voltage supply and efficient power usage.

The device features a low quiescent current of 4.1 mA, making it suitable for low power consumption environments. It offers positive polarity and fixed output type with excellent line regulation of 60 mV and load regulation of 150 mV, ensuring voltage stability under varying operating conditions.

Operational temperature range from -40°C to 85°C enables usage in industrial, consumer electronics, and automotive electronics where temperature variation is expected. The surface mount package type facilitates modern automated PCB assembly and efficient spatial design.

With power rating of 1W and standardized dimensions (6.54 mm length, 6.04 mm width, and 2.29 mm height), this device is optimal for compact printed circuit board layouts. It is compliant with RoHS standards, ensuring environmentally conscious manufacturing.

This voltage regulator is ideal for use in industrial automation, power management circuits, telecommunications, and instrumentation requiring reliable voltage regulation at low currents and multiple outputs.

Provides five outputs with linear voltage regulatory functionality. Fixed 15V output voltage for stable power supply. Supports maximum output current of 500 mA for low-power devices. Low power consumption with 4.1 mA quiescent current.

Compact TO-252 3-pin surface mount package for space saving. Suitable for a wide temperature range from -40°C to 85°C. Compliant with RoHS environmental standards. Surface mount mounting type enhances assembly efficiency.

Dimensions: 6.54 mm (L) x 6.04 mm (W) x 2.29 mm (H).
