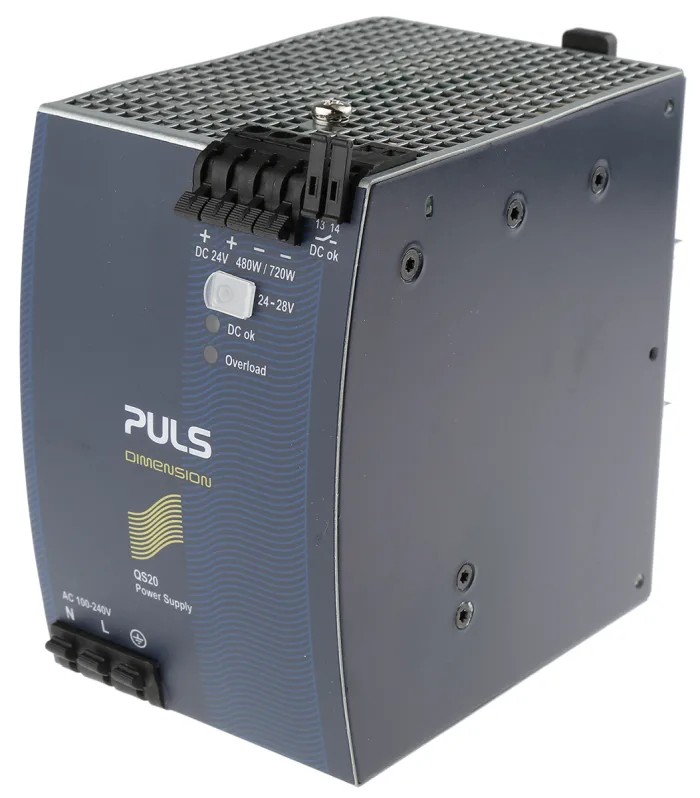

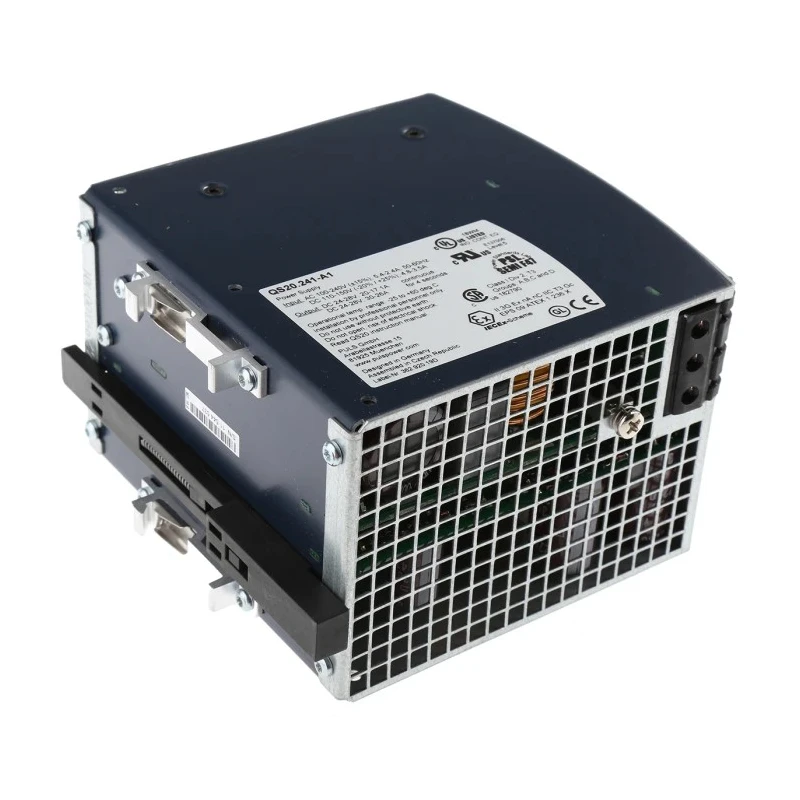

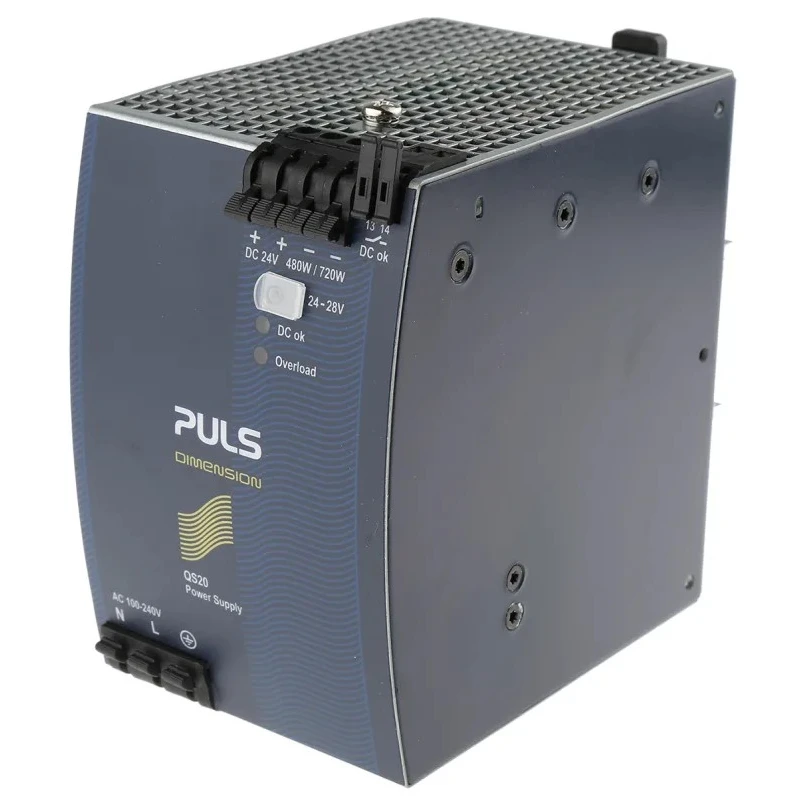

PULS DIMENSION Switched Mode DIN Rail Power Supply 100-240V AC Input 28V DC, 20A Output 480W QS20.241-A1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | PULS |
| Power | 480W |
| Height | 124mm |
| Model | QS20.241-A1 |
| Depth | 127mm |
| IP Rating | IP20 |
| Width | 82mm |
| Series | DIMENSION |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Compact design with dimensions 124mm height, 82mm width, and 127mm depth.
- Wide operating temperature range from -25°C to 70°C for industrial environments.
- IP20 rated enclosure providing basic protection against solids.
- Single output switched mode power supply from the DIMENSION series.
- Integrated DC-OK relay contact for system status monitoring.
- Spring-clamp terminals allow quick and reliable connections.
- 150% peak load capability ensures stable performance during transient loads.
- Certified ATEX compliant for hazardous area installations.
Product Description
PULS QS20.241-A1 Switched Mode DIN Rail Power Supply from the DIMENSION series provides a robust 480W power output with 28V DC voltage at 20A current. It accepts a wide AC input voltage range from 100V to 240V, making it adaptable to global electrical systems.
This power supply features compact dimensions of 124mm height, 82mm width, and 127mm depth, facilitating easy installation in confined DIN rail assemblies. Its IP20 rated enclosure protects the device from solid objects while allowing sufficient ventilation.
Designed for harsh industrial conditions, the unit operates reliably across a broad temperature range from -25°C up to 70°C. The spring-clamp terminals provide quick and secure wiring connections, while the DC-OK relay contact enables real-time monitoring of output status.
Its 150% peak load capability supports transient load demands without interruption. Additionally, it is ATEX approved, making it suitable for hazardous area applications.
Standards compliance includes EN 61558-2-17, EN/IEC 60204-1, EN 50178, and IEC 62103, with safety approvals such as EN 60079-15 ATEX, UL 60950-1, and IEC 60950-1. This power supply is ideal for industrial automation, control panels, electrical enclosures, and other demanding environments requiring reliable DC power.
Compact dimensions allow flexible installation. Wide input voltage supports global usage. High operating temperature range accommodates industrial settings. Quick-connect spring terminal clamps ease wiring. DC-OK relay contact facilitates system monitoring.
ATEX approval for hazardous environments. 150% peak load capability ensures stability. Manufactured in Czech Republic ensuring quality standards. Compliance with international safety and performance standards. Single output design ensures straightforward integration.
Explore more DIN Rail Power Supplies and switching power supplies at EnvMart for your industrial and electrical power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 480W with a maximum output voltage of 28V DC and an output current of 20A.
It has compact dimensions of 124mm in height, 82mm in width, and 127mm in depth, making it suitable for confined spaces.
This unit accepts an input voltage range from 100V to 240V AC, allowing it to be used in various global electrical systems.
The power supply features an IP20 rated enclosure, providing basic protection against solid objects while allowing ventilation.
Yes, it includes an integrated DC-OK relay contact for real-time monitoring of the output status.
It has a peak load capability of 150%, which supports transient load demands without interruption.
Yes, it is ATEX approved, making it suitable for installations in hazardous areas.
The unit features spring-clamp terminals that allow for quick and reliable connections during installation.
This model has a single output, simplifying its integration into systems requiring DC power.
It is manufactured in the Czech Republic, ensuring adherence to quality standards.
