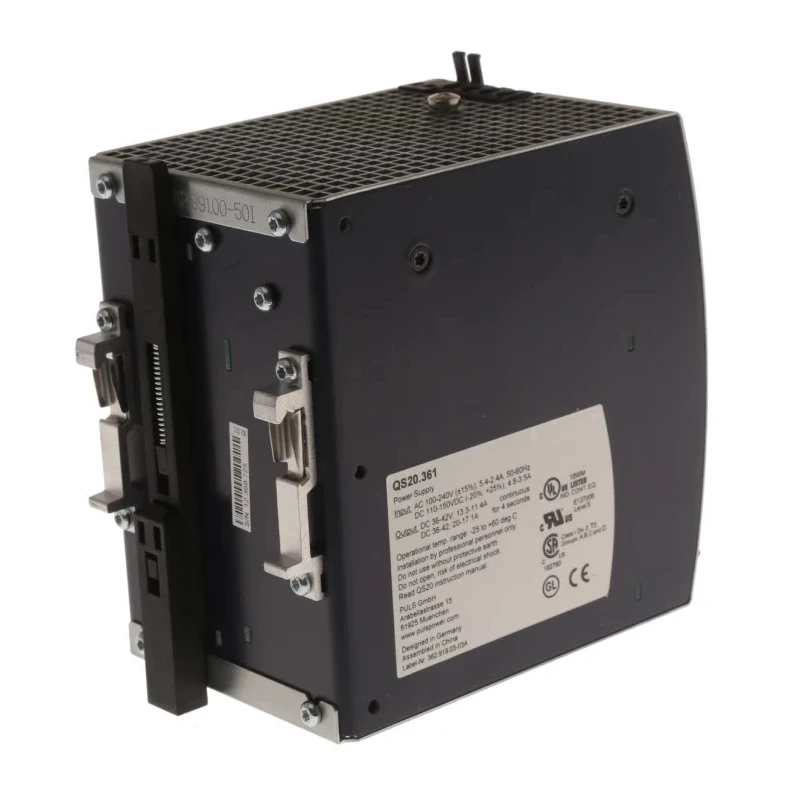

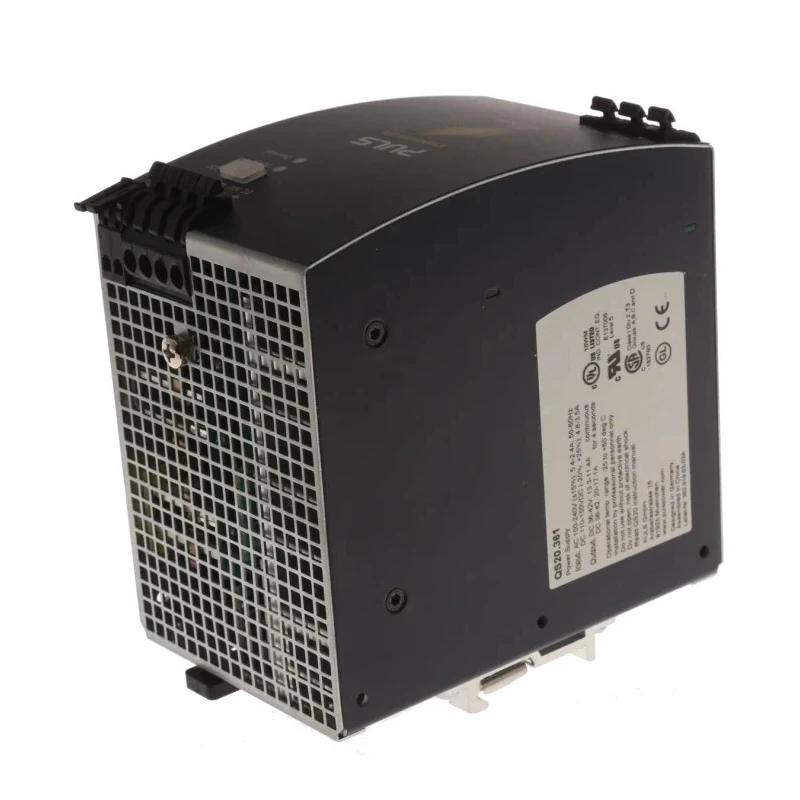

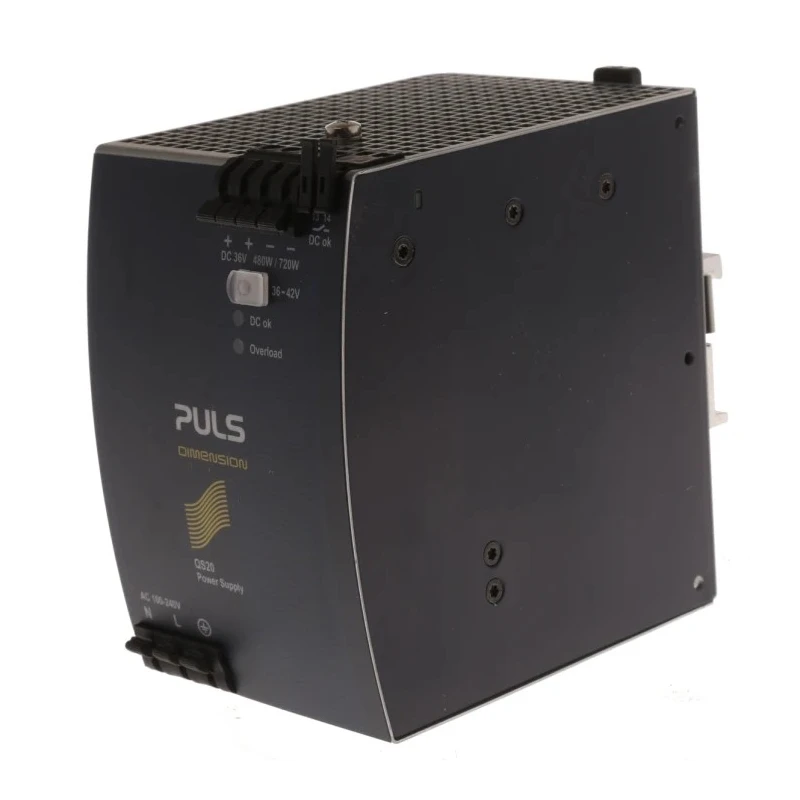

PULS DIMENSION Single-Phase Switched Mode DIN Rail Power Supply 240V AC Input, 42V DC, 13.3A Output, 480W QS20.361

PULS QS20.361 is a high-performance, single-phase switched mode DIN Rail Power Supply from the DIMENSION series. It accepts a wide AC input voltage range of 100V to 240V and provides a regulated DC output voltage adjustable between 36V and 42V at a current capacity of 13.3A, delivering up to 480W of power. This compact and lightweight power supply measures 124mm in height, 82mm in width, and 127mm in depth, making it ideal for integration in control cabinets and industrial automation panels.

Designed for industrial control, automation, communication, and instrumentation applications, the QS20.361 offers robust electrical performance with 94% efficiency and minimal ripple noise of 100mV peak-to-peak. Its diagnostic features include a dry relay contact for DC-ok status, a green LED indicator for DC output presence, and a red LED to signal overload conditions, facilitating easy monitoring and maintenance.

The unit features a safe hiccup overload mode that ensures sustained operation under peak load conditions up to 150%. It also includes active power factor correction to minimize input current distortion and reduce energy consumption. Rated for operation in environments ranging from -25°C to 70°C, it has an IP20 ingress protection rating suitable for most industrial indoor use cases.

The power supply is constructed to withstand electrical transients and surges, providing stable and reliable operation with low electromagnetic emissions. It comes without hazardous area certifications but meets essential safety and performance standards suitable for demanding industrial installations.

Typical applications include industrial control systems, factory automation equipment, communication devices, and instrumentation setups where reliable DC power is required. The product is manufactured in the Czech Republic and ensures high-quality and reliable service for various electrical system needs.

Single-phase switched mode DIN Rail Power Supply. Wide input voltage range: 100V AC to 240V AC. Adjustable DC output voltage between 36V and 42V. Maximum output current of 13.3A and power rating of 480W. High efficiency up to 94% with low ripple and noise.

Operating temperature range from -25°C to 70°C. Compact size: 124mm (H) x 82mm (W) x 127mm (D). IP20 protection rating. Includes diagnostic relay, LED indicators for status monitoring. Robust against surges and transients; low electromagnetic emissions.
