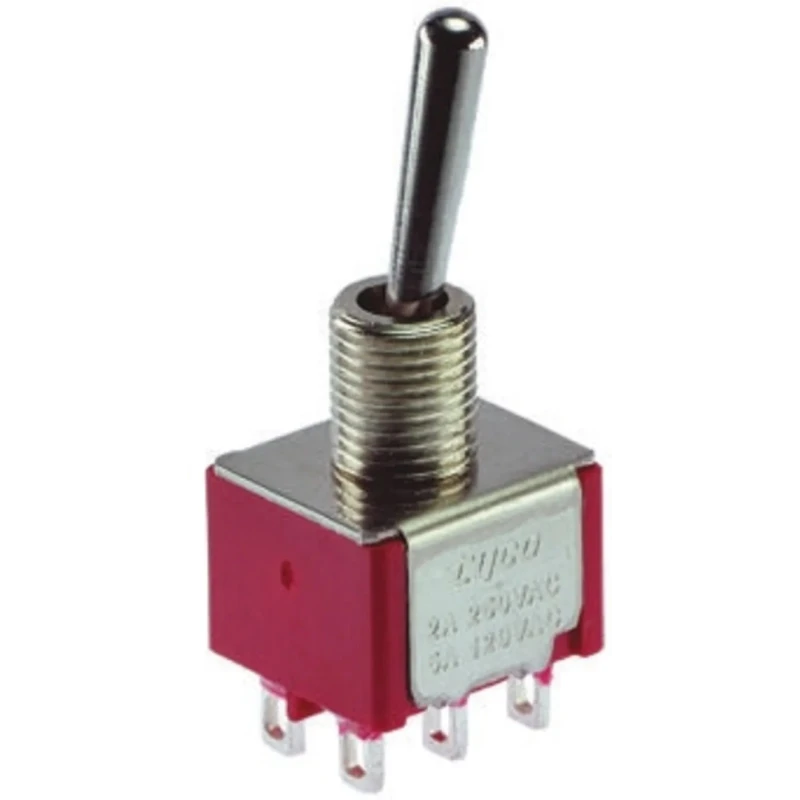

TE Connectivity Gemini A Series Panel Mount Toggle Switch SPDT On-Off-On Wire Lug Terminal 28 V dc 125 V ac 3-1825137-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Features single pole double throw (SPDT) contact configuration.
- Operates with On-Off-On switch operation for flexible circuit control.
- Supports switch contact current up to 5A.
- Constructed with phenolic actuator material for durability.
- Mount type designed specifically for PCB installation.
- Wire lug terminal type ensures reliable electrical connections.
- Panel cutout size of 6.35 mm for proper fitting.
- Actuator length measures 10.41 mm for ergonomic operation.
Product Description
TE Connectivity 3-1825137-9 Gemini A Series panel mount toggle switch is a high-quality SPDT switch designed for PCB mount applications. It features On-Off-On switch operation which allows selection between two circuits or an off position, suitable for a variety of electrical control tasks.
This toggle switch supports a contact current of 5A and can safely handle contact voltages up to 28 V dc and 125 V ac. Its wire lug terminal type facilitates secure connections, while the phenolic actuator material provides robust mechanical strength and durability.
The panel cutout dimension of 6.35 mm and actuator length of 10.41 mm are optimized for seamless integration into electronic assemblies. Designed to operate reliably from -30°C to 85°C, this switch is ideal for industrial electronics, automation systems, and control panel assemblies.
The Gemini A Series toggle switches also feature epoxy sealed terminals and a stainless steel frame with brass tin plated solder support, ensuring long-lasting performance under demanding conditions.
Compliant with RoHS environmental standards, this toggle switch supports sustainable design and manufacturing practices. Features single pole double throw (SPDT) contact configuration. On-Off-On switch operation provides versatile circuit control.
Panel mount design suitable for PCB installations. Wire lug terminal type for reliable connections. Robust phenolic actuator material improves durability. Operates in temperature range from -30°C to 85°C. Panel cutout size of 6.35 mm and actuator length of 10.41 mm.
Supports 5A contact current at 28 V dc and 125 V ac voltages. Epoxy sealed terminals for enhanced protection. Stainless steel frame with brass tin plated solder support. Complies with RoHS directives.
This toggle switch is suitable for use in electrical, automation, manufacturing, and industrial control applications. It is designed to ensure reliable switching performance in demanding environments.
Explore more Toggle Switches and related components on EnvMart for your precise electrical engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile circuit control with On-Off-On operation.
It supports contact voltages of up to 28 V dc and 125 V ac, making it suitable for various electrical applications.
This unit can handle a contact current of up to 5A, ensuring reliable operation in appropriate applications.
It operates reliably within a temperature range of -30°C to 85°C, suitable for industrial environments.
The panel cutout size for this switch is 6.35 mm, which is designed for proper fitting in electronic assemblies.
It utilizes a wire lug terminal type, ensuring secure and reliable electrical connections during operation.
The actuator is constructed from phenolic material, providing mechanical strength and durability for the switch.
Yes, it complies with RoHS environmental standards, supporting sustainable manufacturing practices.
The actuator length measures 10.41 mm, designed for ergonomic operation.
It is suitable for use in electrical, automation, manufacturing, and industrial control applications.
This model is specifically designed for PCB mounting, facilitating integration into electronic assemblies.
It features epoxy sealed terminals and a stainless steel frame with brass tin plated solder support for enhanced durability.
