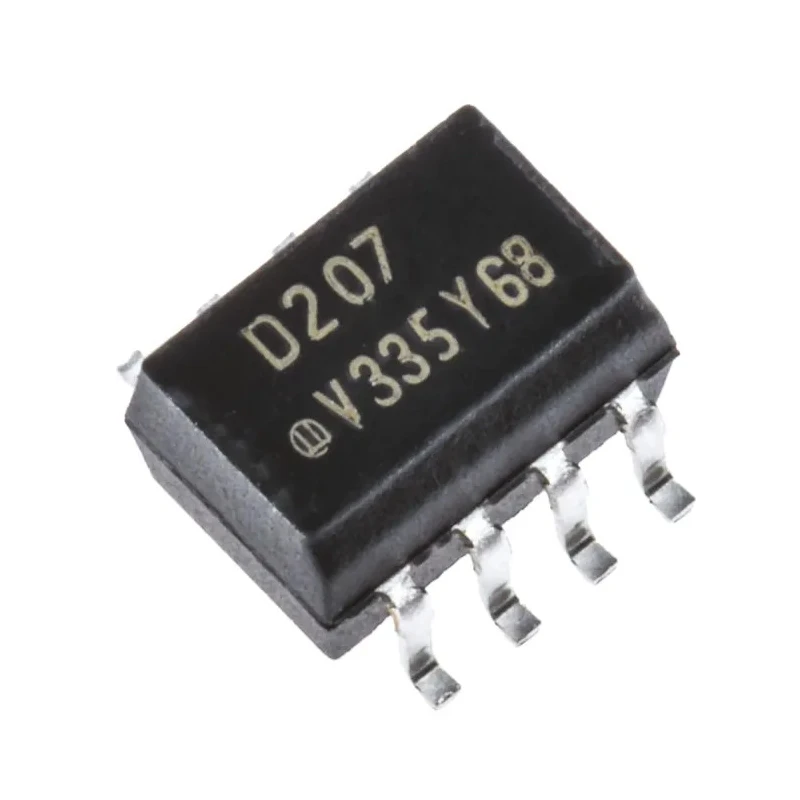

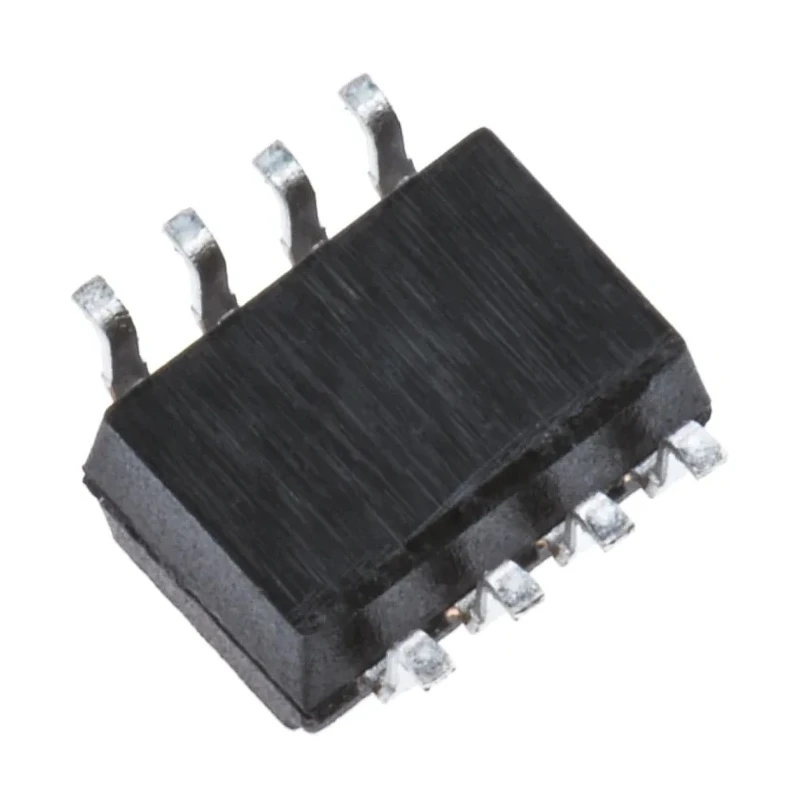

Vishay DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC ILD207T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | ILD207T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ILD2 |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 30mA |
| Number Of Channels | 2 |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 4000V ac |
Key Features
- Features two isolated input channels for enhanced signal processing.
- Supports DC input current type with maximum input current of 30 mA.
- Has a maximum forward voltage of 1.55 volts to ensure low power consumption.
- Designed for an isolation voltage rating of 4000 V AC, providing robust electrical insulation.
- Typical rise and fall times are 3 microseconds and 4.7 microseconds respectively, enabling fast switching.
- Operates reliably in temperatures ranging from -55°C to 100°C for versatile industrial applications.
- Complies with UL1577, cUL, EIA-481-2, IEC 60286-3, and DIN EN 60747-5-5 standards for quality assurance.
- Packaged in tape and reel format suitable for automated PCB assembly processes.
Product Description
Vishay ILD207T is a DC input optocoupler device featuring two isolated channels, housed in a compact 8-pin SOIC surface mount package. It offers efficient electrical isolation capabilities with an isolation voltage of 4000 V AC, making it suitable for industrial electronic circuits requiring signal separation and noise immunity.
This optocoupler supports DC input current with a maximum rating of 30 mA and a forward voltage drop of 1.55 V. The device exhibits fast response times with a typical rise time of 3 microseconds and a fall time of 4.7 microseconds, enhancing signal accuracy in switching applications.
It operates effectively within a broad temperature range from -55°C to 100°C, ensuring reliability in harsh and industrial environment conditions. The ILD207T meets stringent industry safety and quality standards including UL1577, cUL, IEC 60286-3, and DIN EN 60747-5-5.
Packaged in tape and reel format, the ILD207T is optimized for high-volume production and automated insertion, improving manufacturing efficiency. Two isolated channels enable dual signal input processing. Maximum forward voltage of 1.55 V ensures low power dissipation.
Isolation voltage rating of 4000 V AC protects sensitive components. Input current specification of 30 mA DC supports various circuit requirements. Typical rise and fall times of 3 μs and 4.7 μs enable fast switching. Operating temperature from -55°C to 100°C for versatile applications.
Compliance with multiple international safety and performance standards. Surface mount SOIC package allows for compact PCB designs.
This optocoupler is widely used in industrial electronics, power supply units, signal isolation for controllers, and automotive electronics where robust electrical isolation is essential. It enhances noise immunity and protects low-voltage circuits from high-voltage transients.
Browse the Electronics Components and Optocouplers category on EnvMart for more Vishay semiconductor devices and related signal isolation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the ILD207T is 30 mA.
It has an isolation voltage rating of 4000 V AC, providing robust electrical insulation.
This model operates effectively in temperatures ranging from -55°C to 100°C.
The typical rise time is 3 microseconds and the fall time is 4.7 microseconds, enabling fast switching.
It is packaged in tape and reel format, suitable for automated PCB assembly processes.
This optocoupler features two isolated input channels for enhanced signal processing.
The maximum forward voltage drop is 1.55 volts, ensuring low power consumption.
It complies with UL1577, cUL, IEC 60286-3, and DIN EN 60747-5-5 standards for quality assurance.
The package type is SOIC, which is a surface mount package.
The maximum current transfer ratio is 200%.
It is widely used in industrial electronics, power supply units, and automotive electronics for signal isolation.
The minimum operating temperature for this optocoupler is -55°C.
